Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | MAST 190/62200 | 1 | $22,472.96 | |||
| 3 | CHAIN GUIDE ROLLER.506B 190/40803 | 1 | $717.39 | |||
| 6 | PIN PIVOT 911/21400 | 1 | $307.86 | |||
| 7 | SET 3/8UNFx3/4 HT 1305/0204Z | 1 | $2.00 | |||
| 8 | WASHER 3/8" SPRING 1416/0006Z | 1 | $0.45 | |||
| 9 | WASHER 3/8in MEDIUM 1411/0003D | 1 | $3.83 | |||
| 11 | BOLT 1310/3618 | 1 | $79.99 | |||
| 12 | NUT LOCK 1345/0603 | 1 | $13.98 | |||
| 14 | ROLLER 190/41001 | 1 | $451.32 | |||
| 18 | ROLLER SHIM 819/00051 | 1 | $0.99 | |||
| 19 | BRACKET 190/43800 | 1 | $288.13 | |||
| 20 | BRACKET 190/43600 | 1 | $288.13 | |||
| 22 | (W) (P) WASHER, 5/8 MEDIUM 1411/0007Z 1411/0007D | 1 | $1.43 | |||
| 25 | PIVOT TOP ROLLER 190/03504 | 1 | $280.66 | |||
| 26 | NUT 826/00843 | 1 | $112.19 | |||
| 29 | SCREW 826/00542 | 1 | $14.28 | |||
| 30 | PIN PIVOT 911/21500 | 1 | $190.25 | |||
| 31 | WASHER SPHERICAL SEATING 823/00363 | 1 | $139.17 | |||
| 32 | WASHER 823/00364 | 1 | $17.09 | |||
| 33 | BOLT 5/8 UNF 1305/3616Z | 1 | $9.42 | |||
| 34 | SPRING WASHER 1416/0010Z | 1 | $1.52 | |||
| 35 | BOLT 5/8 X 7 UNF 1305/3642Z | 1 | $22.04 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B3-1-2-399309 B3-1-2 MAST, DUPLEX 3.6M LONG
View Diagram -
DIAG-B2-5-1-399309-12234072 B2-5-1 GUARDS WINDSCREEN & ROOF
View Diagram -

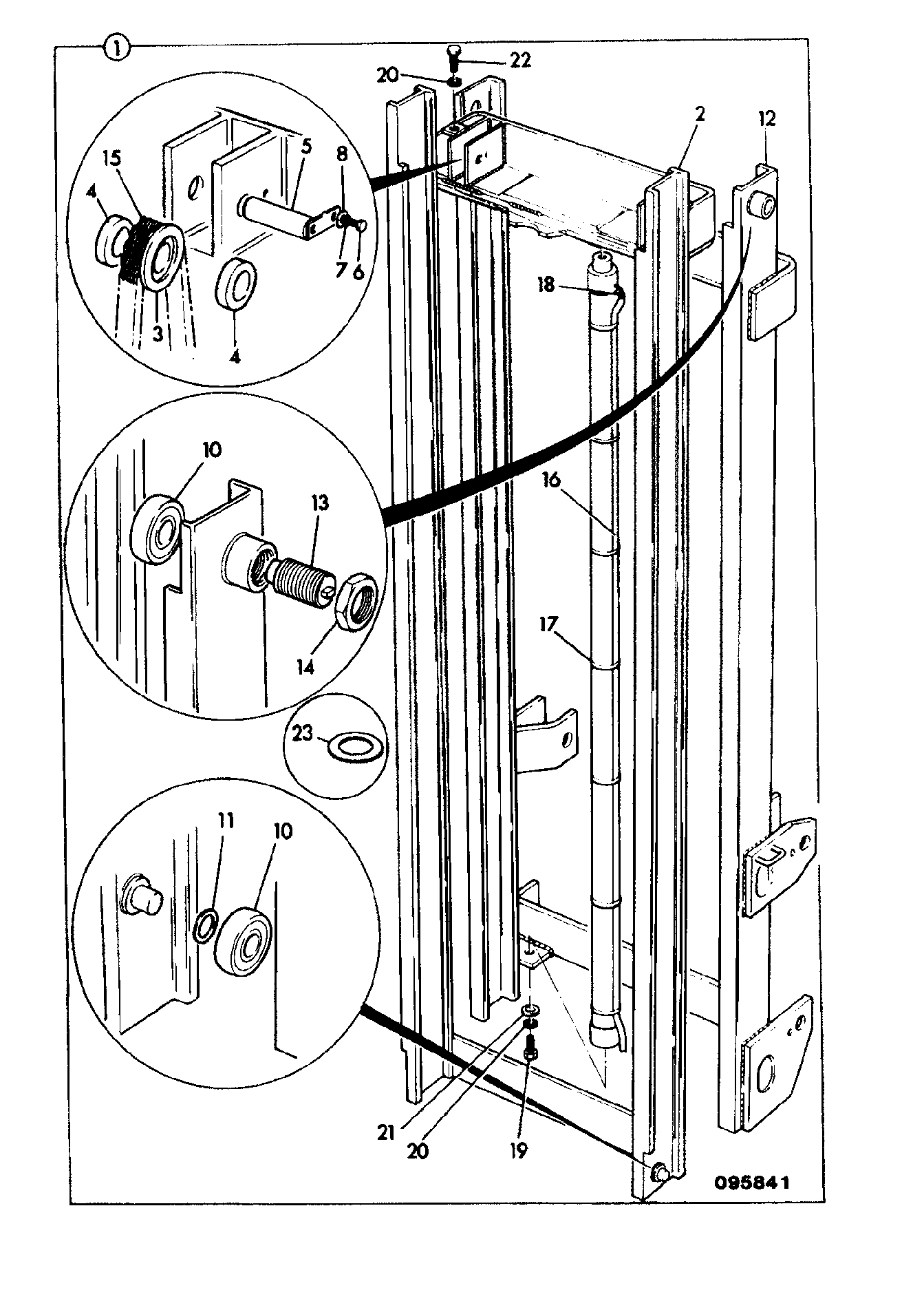

DIAG-B3-1-2-399309-12234079 B3-1-2 MAST, TRIPLEX 28'0" LONG
View Diagram
