B290-95-1 OTHER OPERATOR ENCLOSURE ITEMS COVER PLATE EXCAVATOR VALVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	EXCAVATOR COVER PLATE (GLOBAL) 334/Y0789	1	AVAILABLE TO ORDER	$24.40	Quantity
2	RIVET NUT (BR3) 826/01101	1	7 IN STOCK	$3.76	Quantity

Showing 1 to 2 of 2 parts

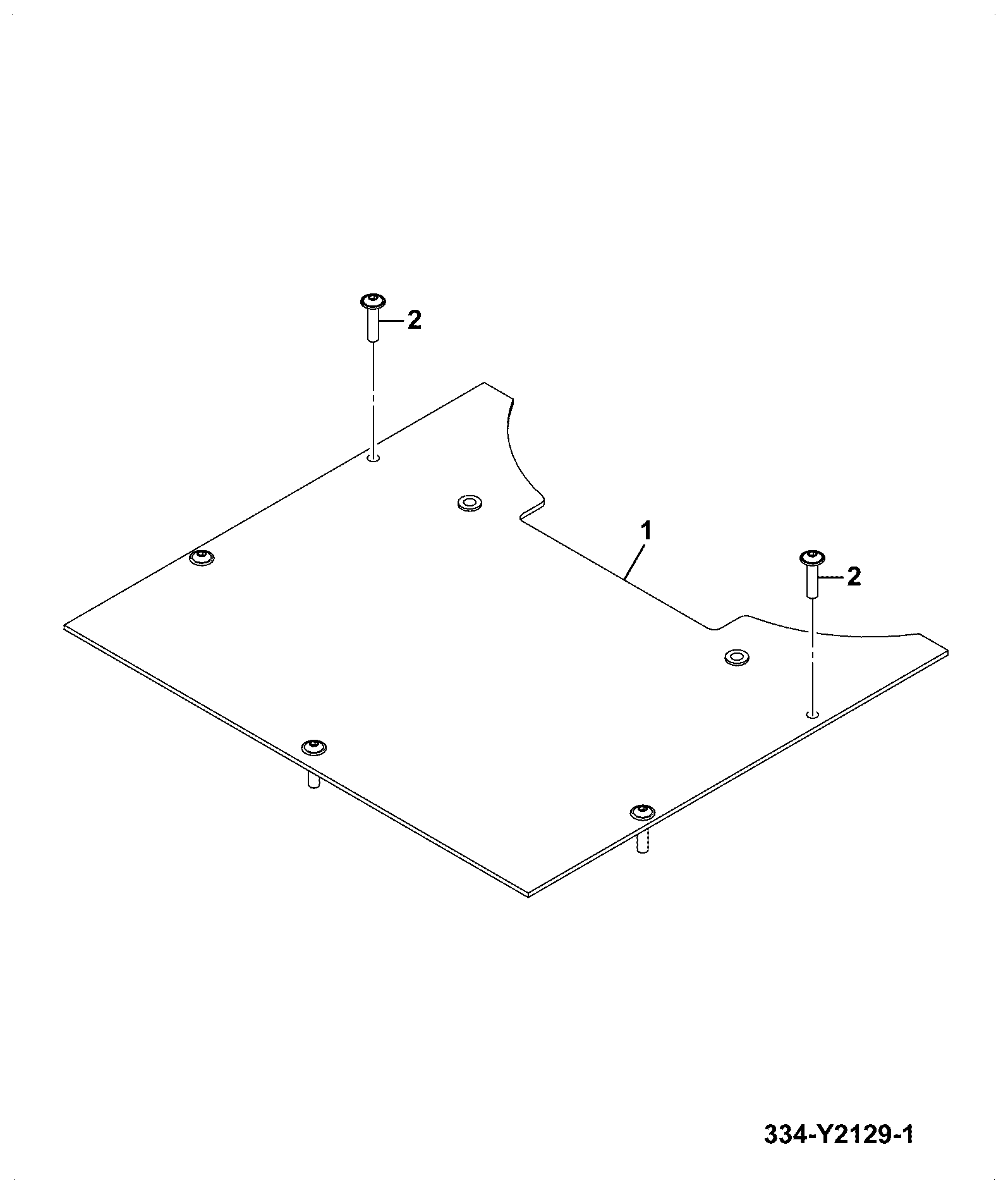

DIAG-B290-85-1-394873 B290-85-1 OTHER OPERATOR ENCLOSURE ITEMS PLATE SEALING
View Diagram

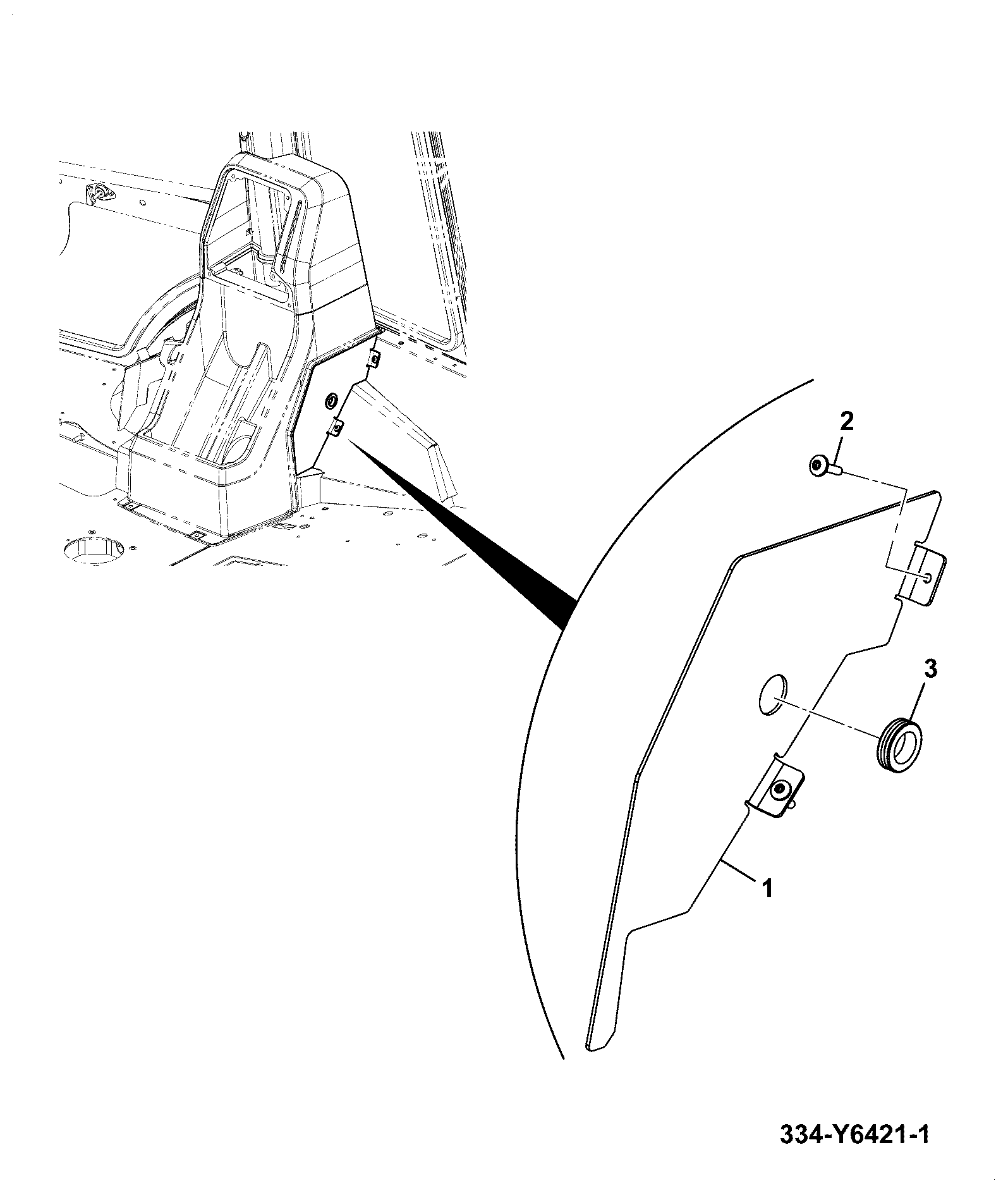

DIAG-B290-100-1-394873 B290-100-1 OTHER OPERATOR ENCLOSURE ITEMS COVER ACCESS, EXCAVATOR VALVE
View Diagram

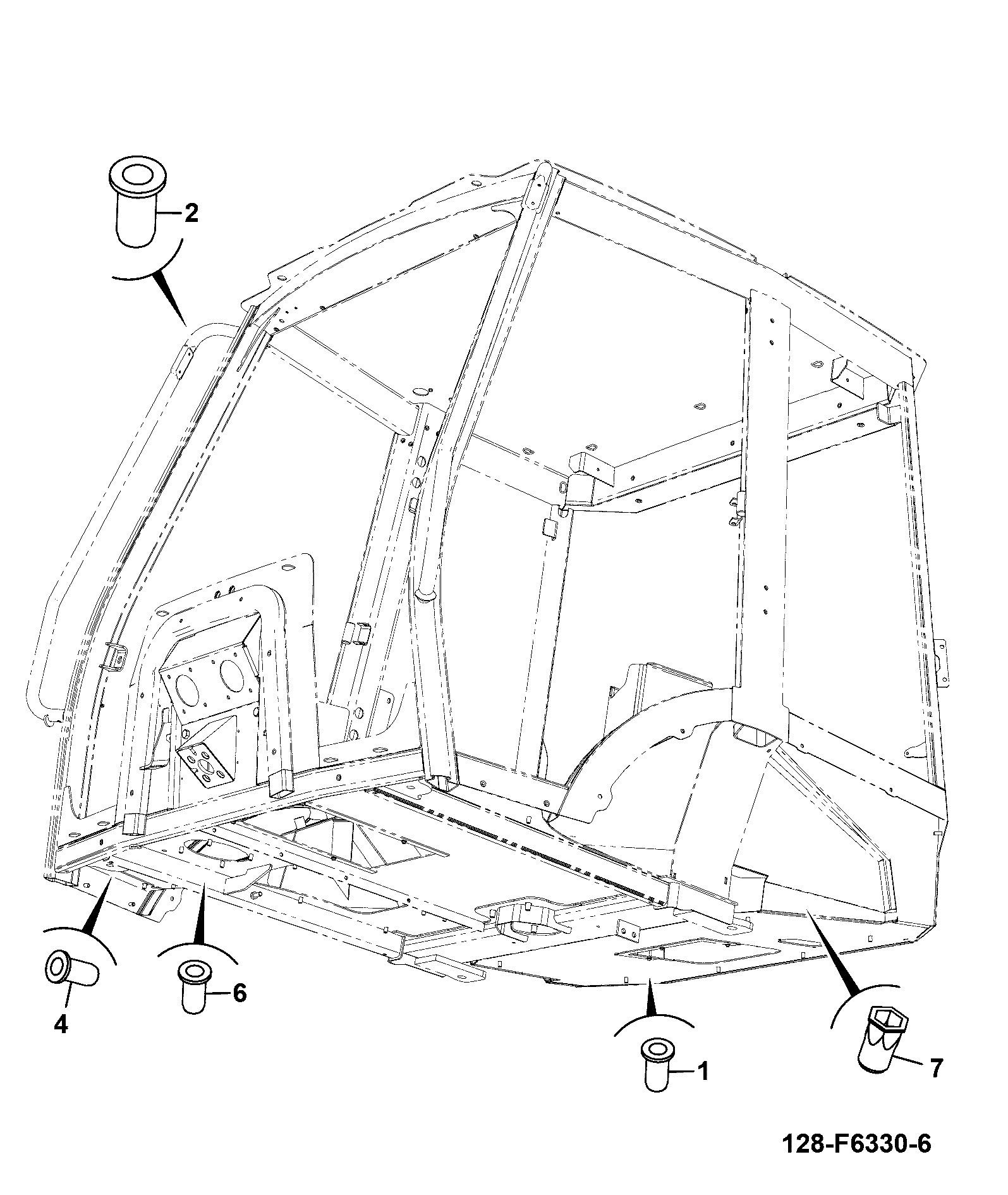

DIAG-B290-80-1-394873 B290-80-1 OTHER OPERATOR ENCLOSURE ITEMS CAB AIR CONDITIONING Rivet Nuts
