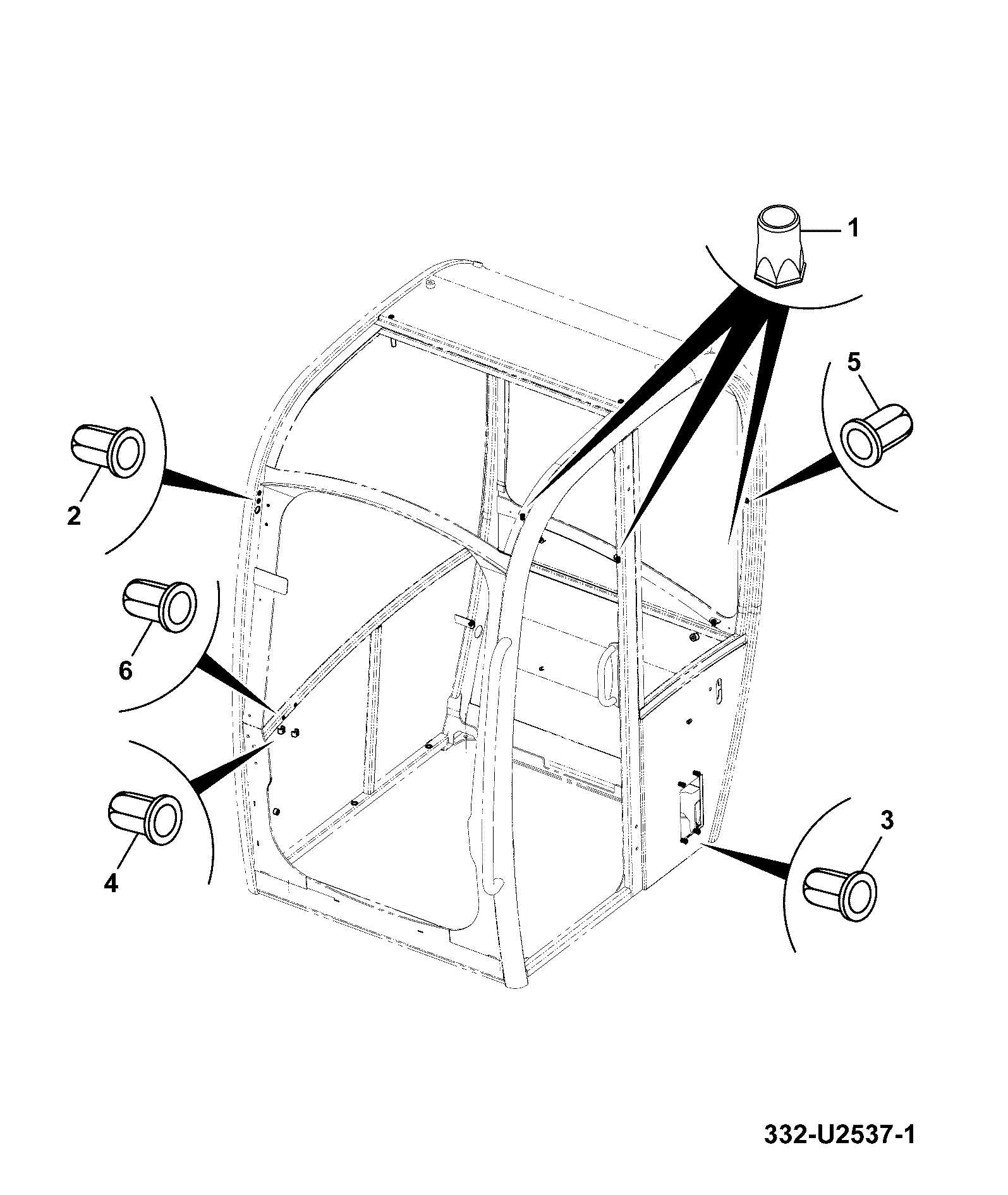

B290-25-1 OTHER OPERATOR ENCLOSURE ITEMS GROMMET ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GROMMET 2410/0114	1	AVAILABLE TO ORDER	$16.86	Quantity
2	GROMMET 2410/0110	1	AVAILABLE TO ORDER	$17.88	Quantity
3	GROMMET 2410/0112	1	AVAILABLE TO ORDER	$6.97	Quantity
4	GROMMET BLIND 7.95 DIA x 3.5 THK 2410/1106	1	AVAILABLE TO ORDER	$4.08	Quantity
5	(W) (P) BUMP STOP-HEATER DOOR 331/44379	1	AVAILABLE TO ORDER	$0.58	Quantity
6	GROMMET 2410/1104	1	9 IN STOCK	$5.69	Quantity

Showing 1 to 6 of 6 parts

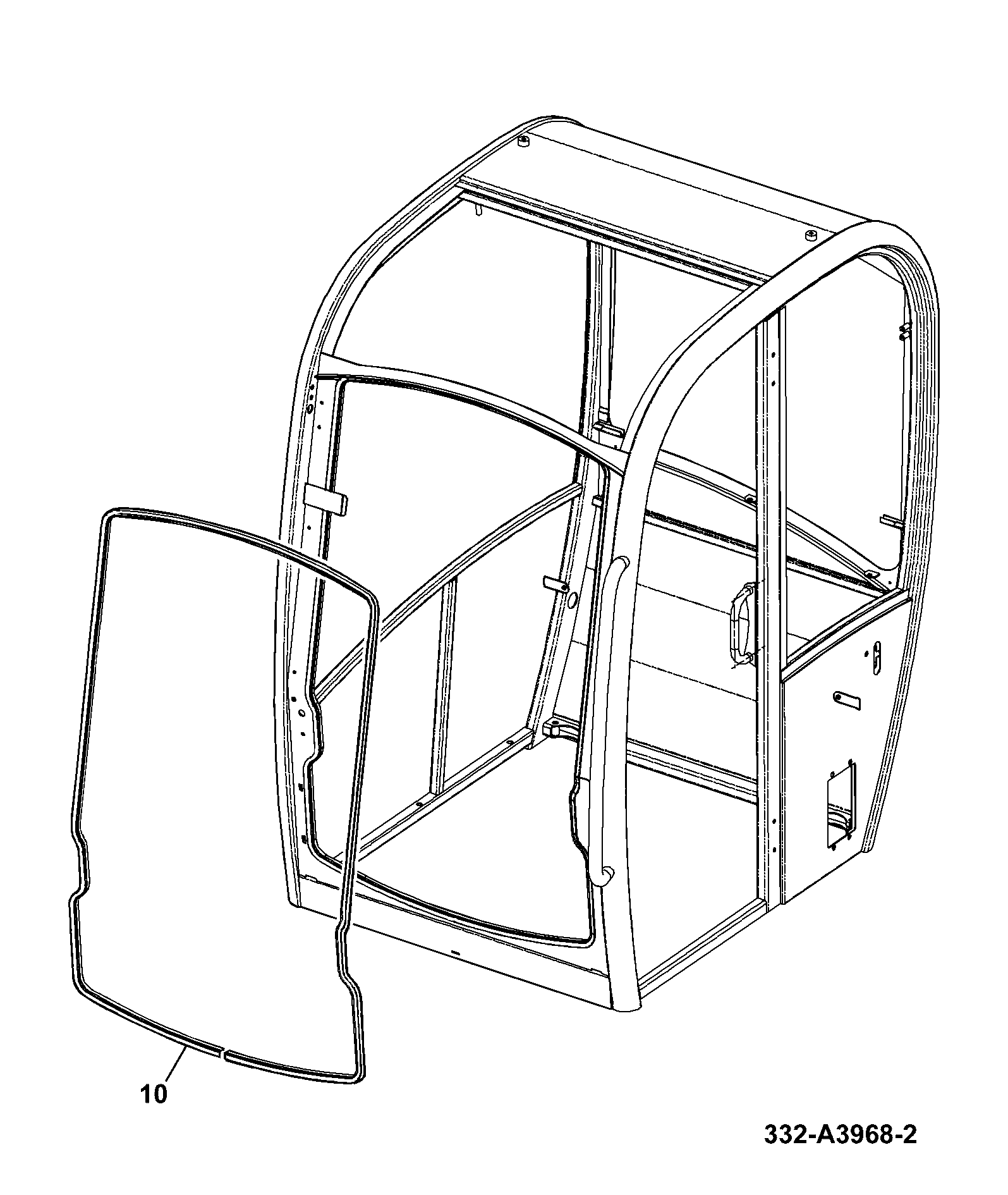

DIAG-B290-30-1-398198 B290-30-1 OTHER OPERATOR ENCLOSURE ITEMS CAB SEAL
View Diagram
DIAG-B290-40-1-398198 B290-40-1 OTHER OPERATOR ENCLOSURE ITEMS RIVNUT
View Diagram

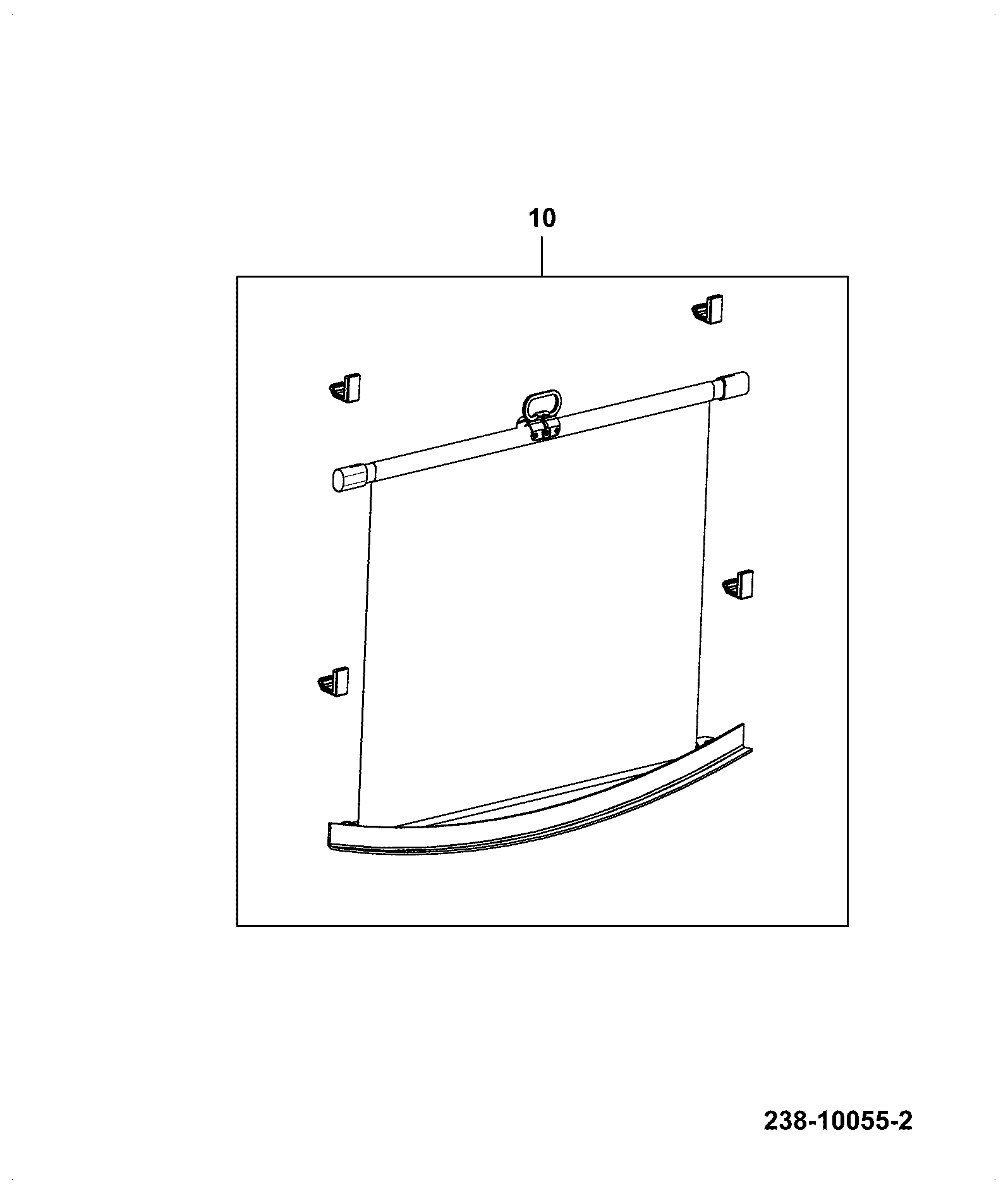

DIAG-B290-1-1-398198 B290-1-1 OTHER OPERATOR ENCLOSURE ITEMS SUN BLIND (CAB OPTION)
