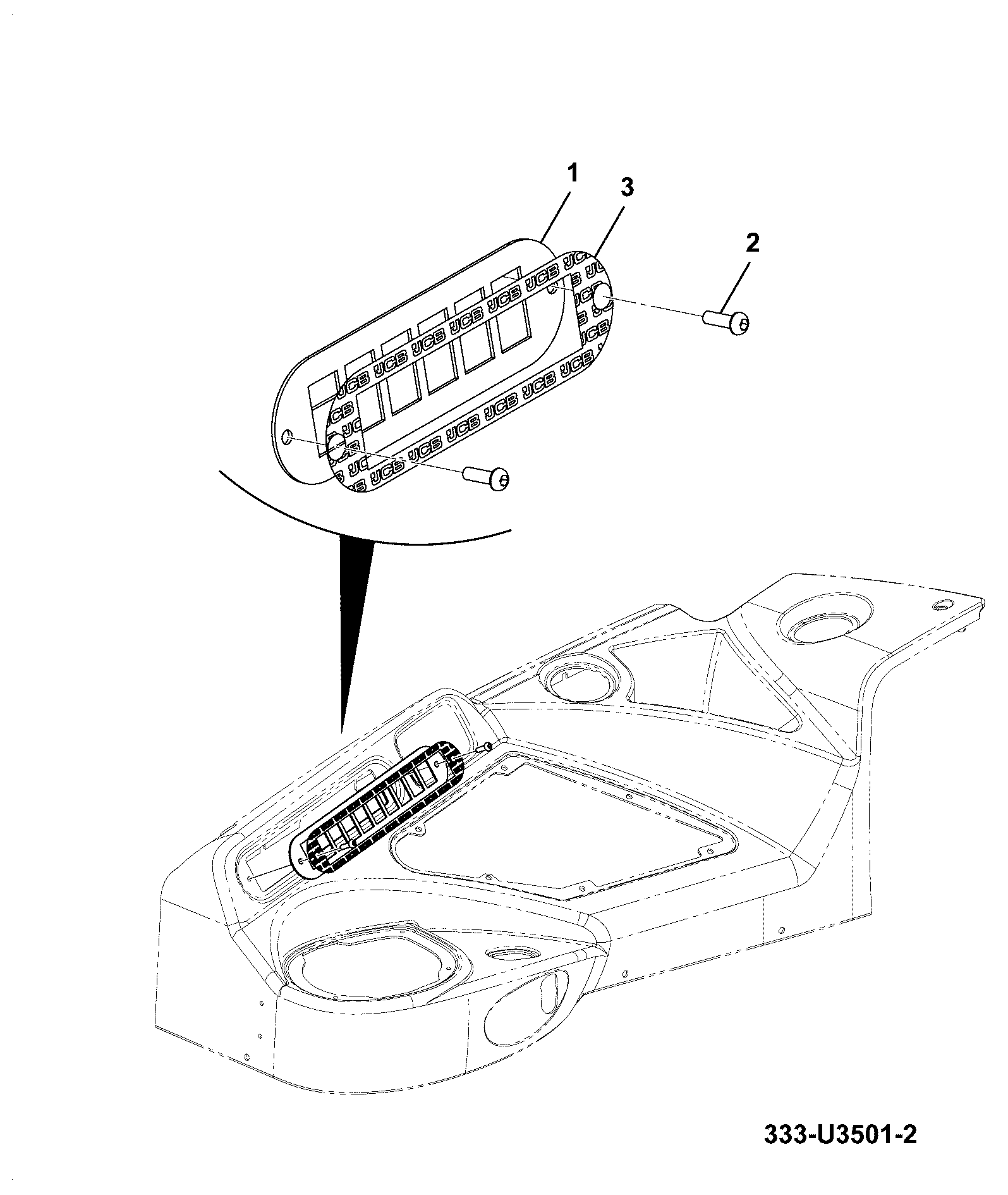

B290-2-1 OTHER OPERATOR ENCLOSURE ITEMS SWITCH PANEL, LH CONSOLE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	SWITCH PANEL, CAB LHS 333/U8541	1	AVAILABLE TO ORDER	$57.76	Quantity
2	CAP SCREW M6x20 SPECIAL 826/00902	1	29 IN STOCK	$1.25	Quantity
3	DECAL - SWITCH PANEL, CAB LHS 333/U9239	1	AVAILABLE TO ORDER	$14.92	Quantity

Showing 1 to 3 of 3 parts
