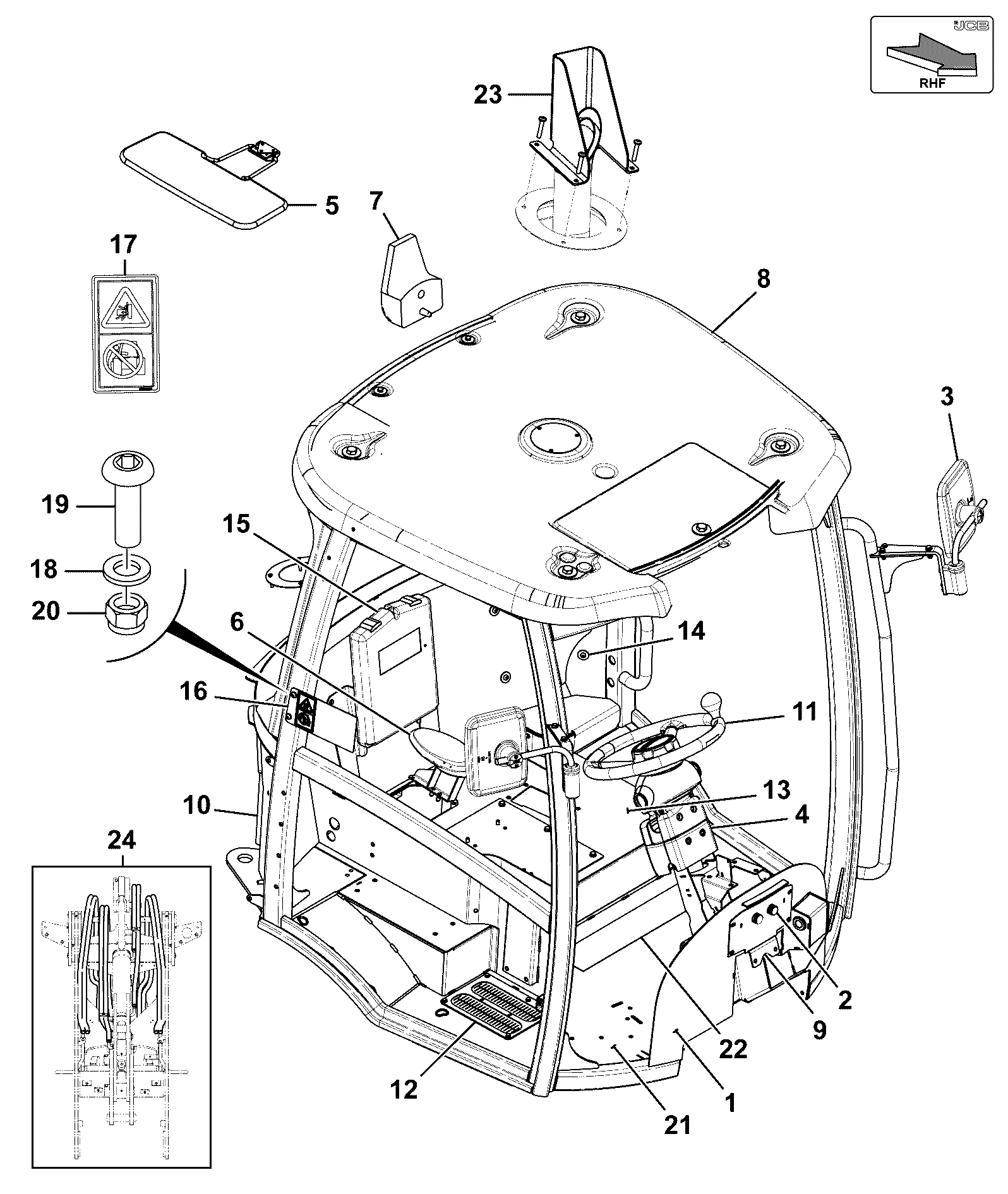

B290-145-1 OTHER OPERATOR ENCLOSURE ITEMS ASSEMBLY HVAC DOOR ASSEMBLY RED Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	W/A HVAC DOOR 406 332/A6914	1	AVAILABLE TO ORDER	$335.67	Quantity
3	Adhesive Kit 993/55700 993/55701	1	AVAILABLE TO ORDER	$332.68	Quantity
4	'Cleaner Tero Clean 1000ml Tero Clean 10 4104/2303 4104/2304	1	1 IN STOCK	$145.31	Quantity

Showing 1 to 3 of 3 parts
