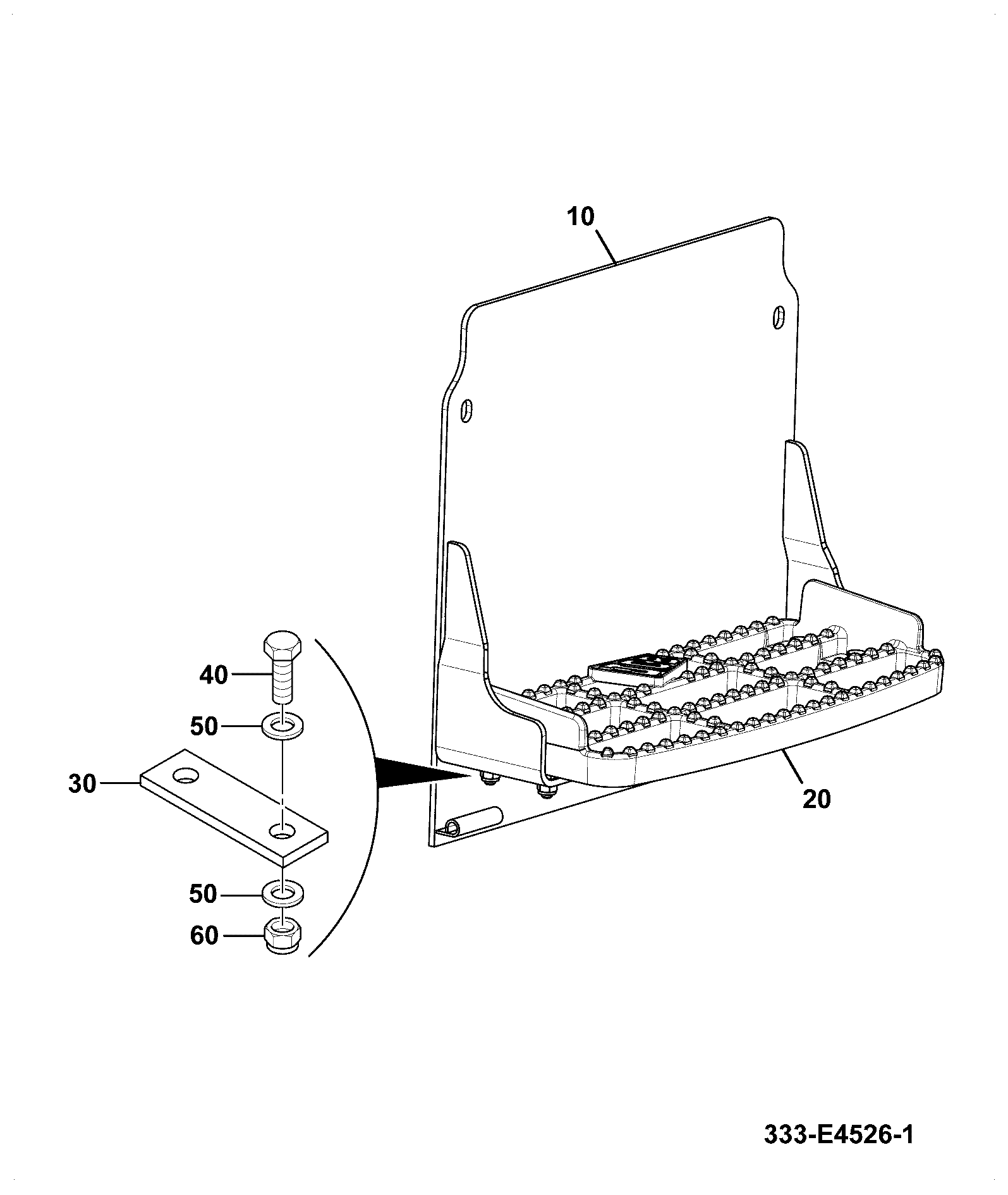

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | ||||
| 20 | WA CAB STEP REAR 333/E4532 | 1 | $109.55 | |||
| 30 | BRKT STEP SEAL 333/G4501 | 1 | $37.92 | |||
| 40 | M6x80 BOLT 1315/3218Z | 1 | $10.23 | |||
| 50 | NYLON WASHER M8 123/04791 | 1 | $2.82 | |||
| 60 | BUSHING 331/34907 | 1 | $3.12 | |||
| 70 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 80 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 90 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 100 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 110 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 120 | SEAL CAB STEP 333/D8796 | 1 | $29.47 | |||
| 130 | Label ISO-03B 817/70024 | 1 | $4.32 | |||
| 140 | WA CAB STEP FRONT 335/F7088 | 1 | $109.55 | |||
| 150 | NUT DOME HEAD M8 826/01089 | 1 | $2.77 | |||
Showing 1 to 15 of 15 parts
