Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PASSENGER SEAT SUPPORT WA 400/H7223 | 1 | $3,263.18 | |||
| 3 | M4 DOMED NUT ST/STEEL 334/U9005 | 1 | $3.91 | |||
| 4 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | FRONT SEAL 334/R5158 | 1 | $2.86 | |||
| 7 | GROMMET 828/00211 | 1 | $2.28 | |||
| 8 | PLAIN WASHER M5 ST/STEEL 334/U8865 | 1 | $0.18 | |||
| 9 | M5 LOW PROFILE HEX BOLLHO (BR3) 826/10973 | 1 | $2.99 | |||
| 10 | SCREW M5x12 (P493) 336/C1225 | 1 | $0.81 | |||
| 11 | M4 LOW PROF HEX BOLLHOFF RE-INS (P493) 332/S8795 | 1 | $14.46 | |||
| 12 | COOLER SLIDER MNT 334/W2571 | 1 | $19.12 | |||
| 13 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 15 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 16 | M4X10 CSK SCREW ST/STEEL 334/V0803 334/R8541 | 1 | $2.28 | |||
| 17 | PANEL SWITCH BLANK 701/60010 | 1 | $20.45 | |||
| 18 | SLIDE 61/30735 WIDNEY 334/U8263 | 1 | $321.81 | |||
| 19 | GROMMET 2410/1109 | 1 | $4.96 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

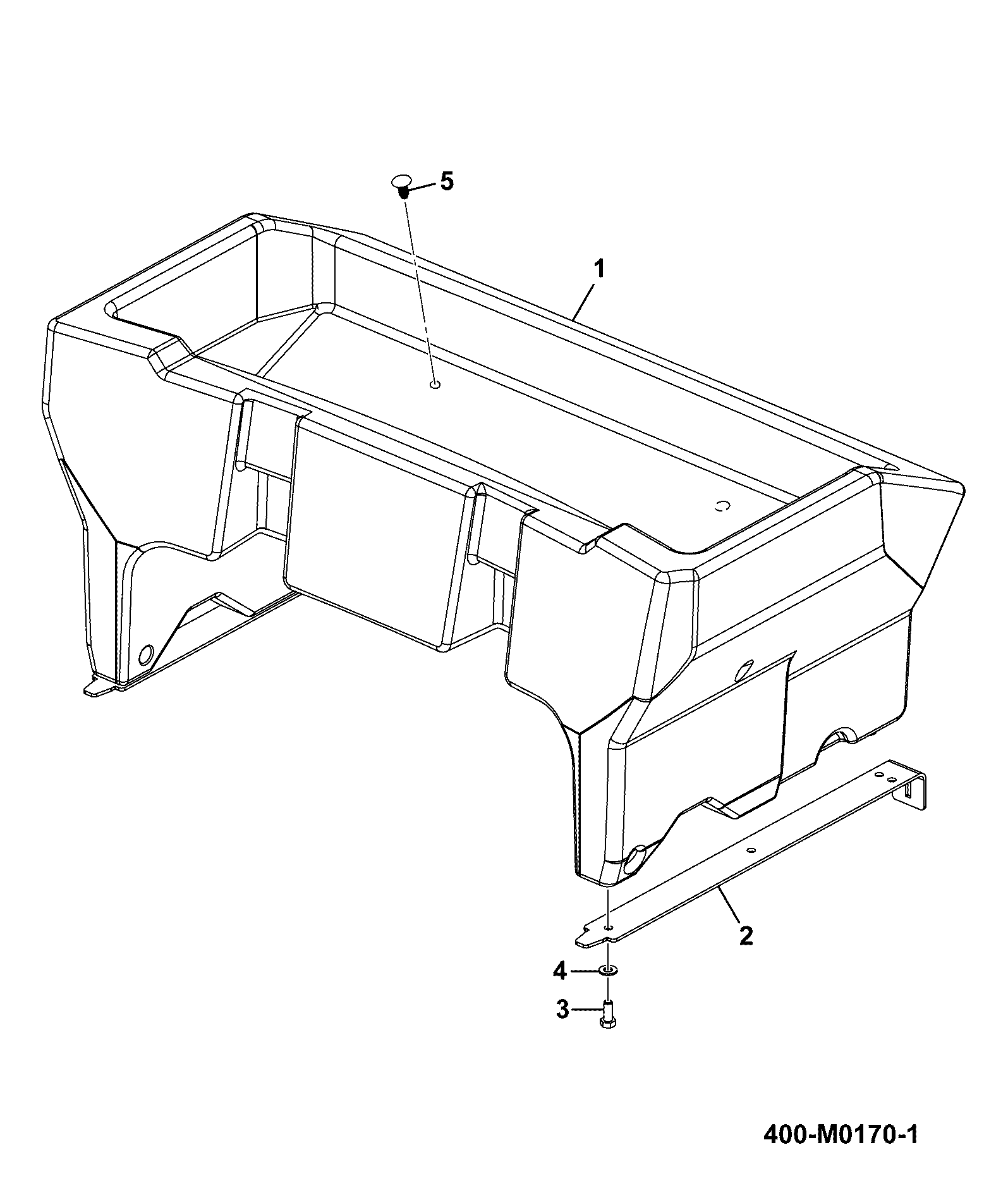

DIAG-B290-136-1-393732 B290-136-1 OTHER OPERATOR ENCLOSURE ITEMS REAR STORAGE TRAY ASSEMBLY
View Diagram -
DIAG-B290-141-1-393732 B290-141-1 OTHER OPERATOR ENCLOSURE ITEMS REAR DECK MOUNT ASSEMBLY
View Diagram -

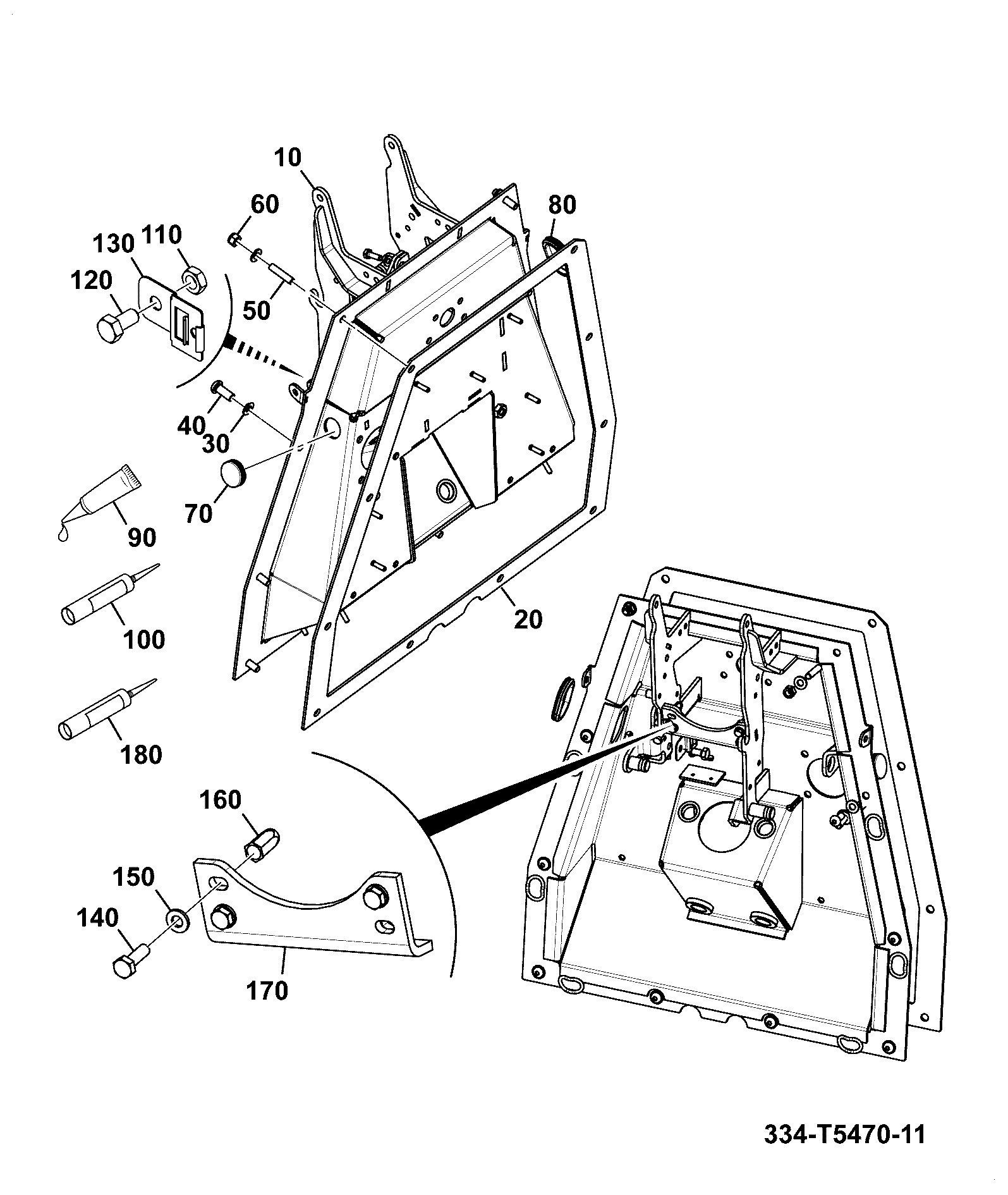

DIAG-B290-55-10-393732 B290-55-10 OTHER OPERATOR ENCLOSURE ITEMS BULKHEAD FRONT ASSEMBLY
View Diagram
