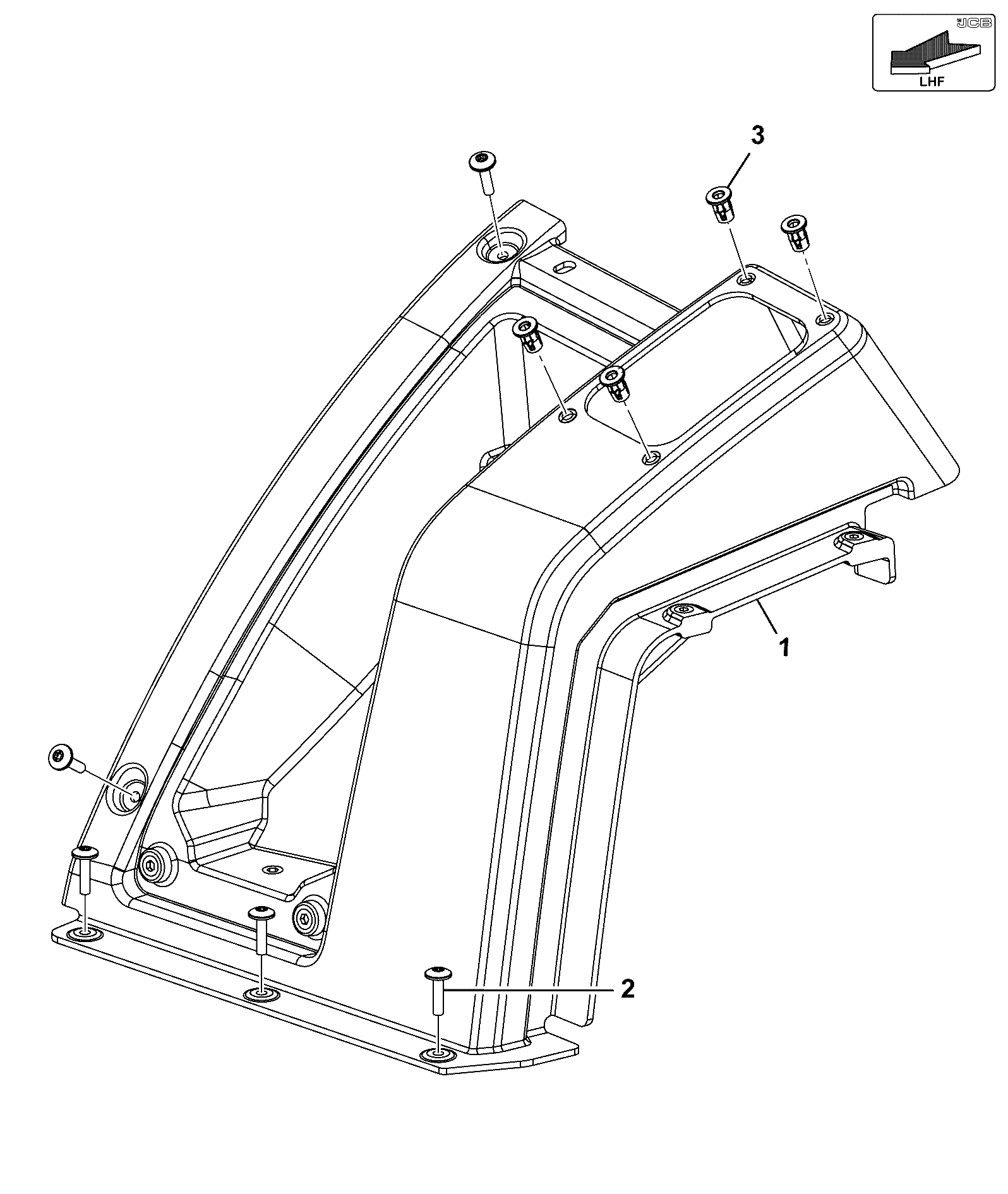

B270-60-1 MOULDINGS/TRIM ASSEMBLY LOADER COVER, 3DX, EXPORT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LOADER CONTROL COVER 402/Z8880	1	AVAILABLE TO ORDER	$672.06	Quantity
2	SCREW M6x25 BUTTON SOCKET 826/01768	1	AVAILABLE TO ORDER	$2.11	Quantity
4	SCREW.M5X20LG. 826/01406	1	3 IN STOCK	$10.69	Quantity

Showing 1 to 3 of 3 parts
