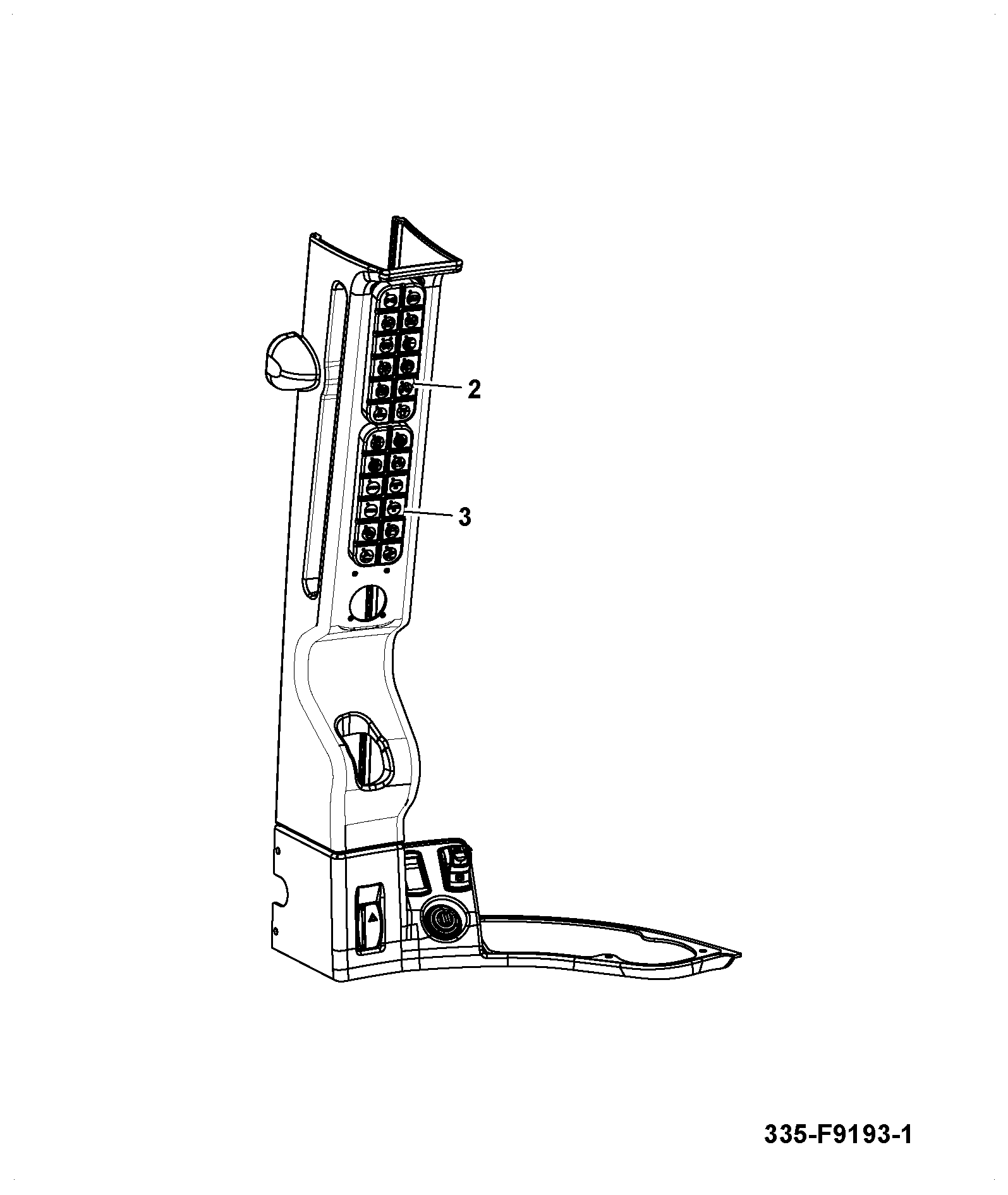

B270-50-1 MOULDINGS/TRIM INSTRUMENT DISPLAY MLDG ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MTG PLATE WA - DISPLAY UN 334/T5296	1	AVAILABLE TO ORDER	$100.07	Quantity
2	M5 LOW PROFILE HEX BOLLHO (BR3) 826/10973	1	AVAILABLE TO ORDER	$2.99	Quantity
3	SCREW M5x16 BUTTON HEAD 826/01429	1	AVAILABLE TO ORDER	$4.87	Quantity
4	JACK NUT M5 826/00842	1	6 IN STOCK	$15.01	Quantity

Showing 1 to 4 of 4 parts
