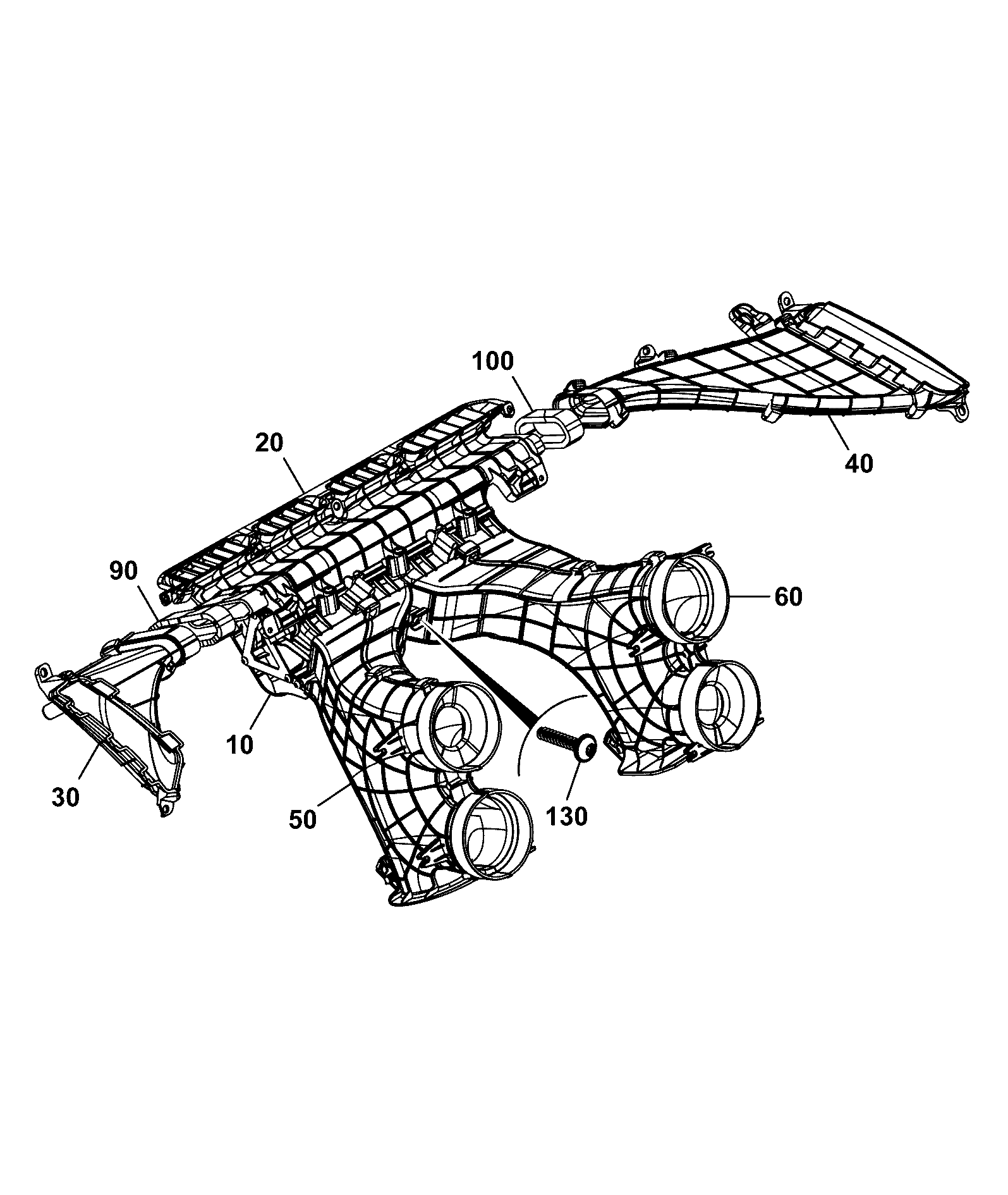

B270-355-1 MOULDINGS/TRIM DETAILS MODE BOX – HVAC Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	MODE BOX - HVAC (P493) 401/W4447	1	AVAILABLE TO ORDER	$362.93	Quantity
20	MOULDING MODEBOX FLAP (P493) 334/E6229	1	AVAILABLE TO ORDER	$35.76	Quantity
40	M4x20 THREAD FORMING SCRE (COMMON NG) 334/V2658	1	AVAILABLE TO ORDER	$3.23	Quantity
50	RED DOT ACTUATOR GEN 2 (P493) 401/V2749	1	AVAILABLE TO ORDER	$208.83	Quantity

Showing 1 to 4 of 4 parts
