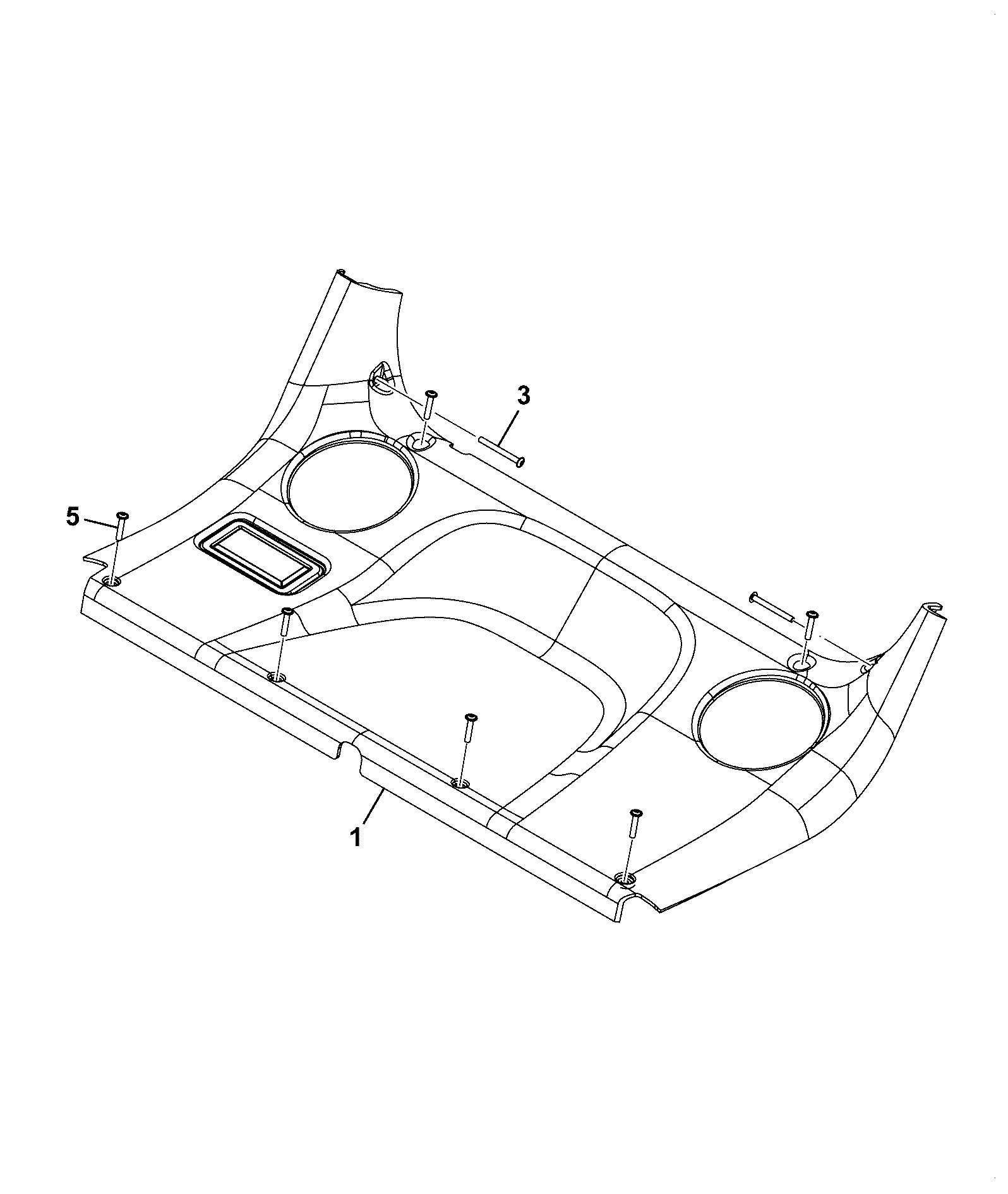

B270-35-1 MOULDINGS/TRIM FRONT CONSOLE FUSE COVER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FUSE COVER 346/00449	1	AVAILABLE TO ORDER	$84.82	Quantity
2	WASHER RETAINING 823/00598	1	10 IN STOCK	$1.04	Quantity
3	M6 CAGED NUT 826/11035	1	35 IN STOCK	$4.63	Quantity
4	THRUMB SCREW M6X15 826/11036	1	1 IN STOCK	$29.68	Quantity

Showing 1 to 4 of 4 parts
