B270-330-1 MOULDINGS/TRIM DETAILS COVER LMI Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ABI LMI COVER (P493) 401/H1684	1	AVAILABLE TO ORDER	$24.92	Quantity
2	PANEL FASTENER (P545) 334/H1237	1	AVAILABLE TO ORDER	$1.02	Quantity

Showing 1 to 2 of 2 parts

DIAG-B270-325-1-401621 B270-325-1 MOULDINGS/TRIM INSTALLATION FUSE A-PILLAR, GRAB HANDLE
View Diagram

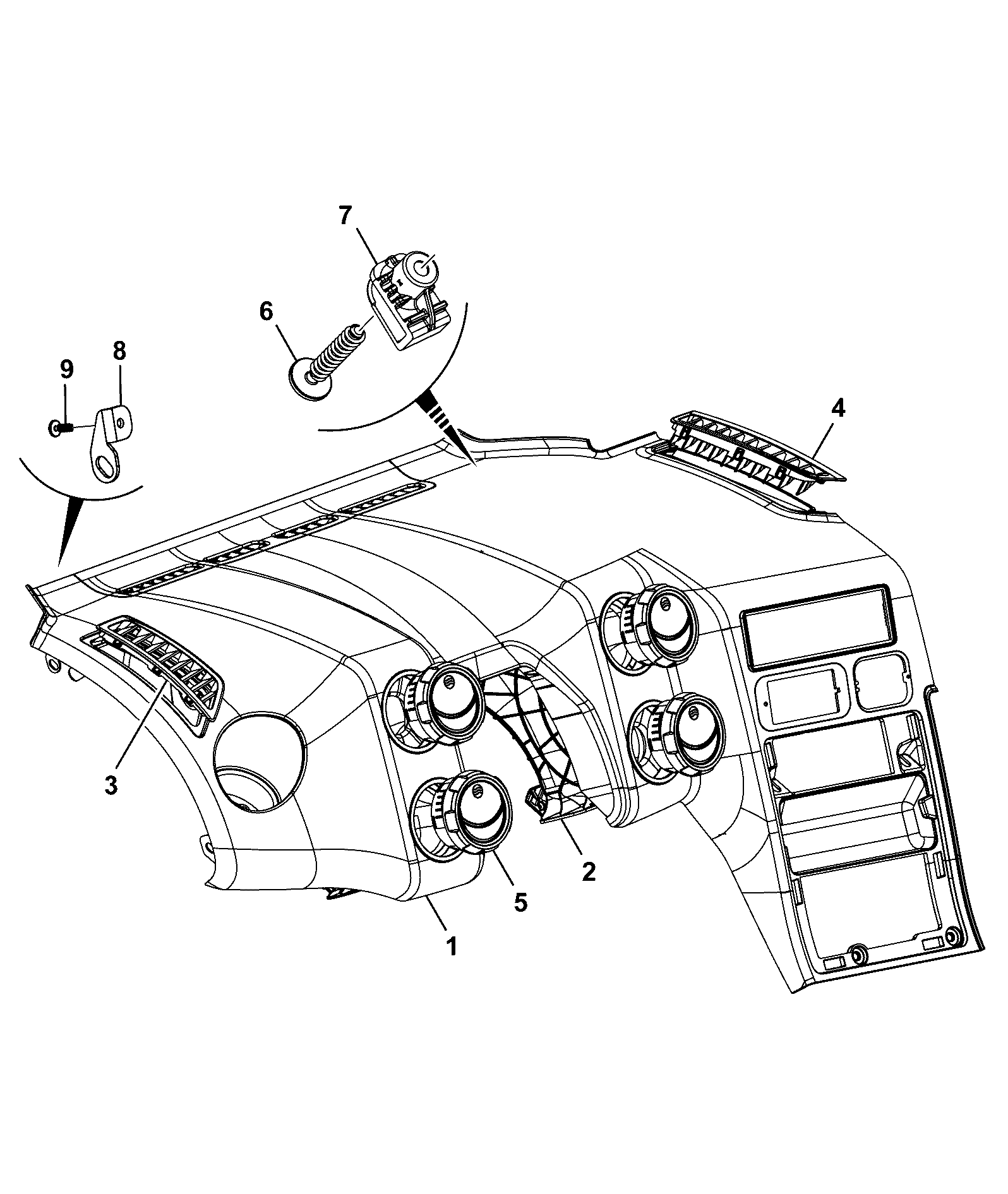

DIAG-B270-335-1-401621 B270-335-1 MOULDINGS/TRIM DETAILS UPPER, INSTRUMENT PANEL, HEATER
