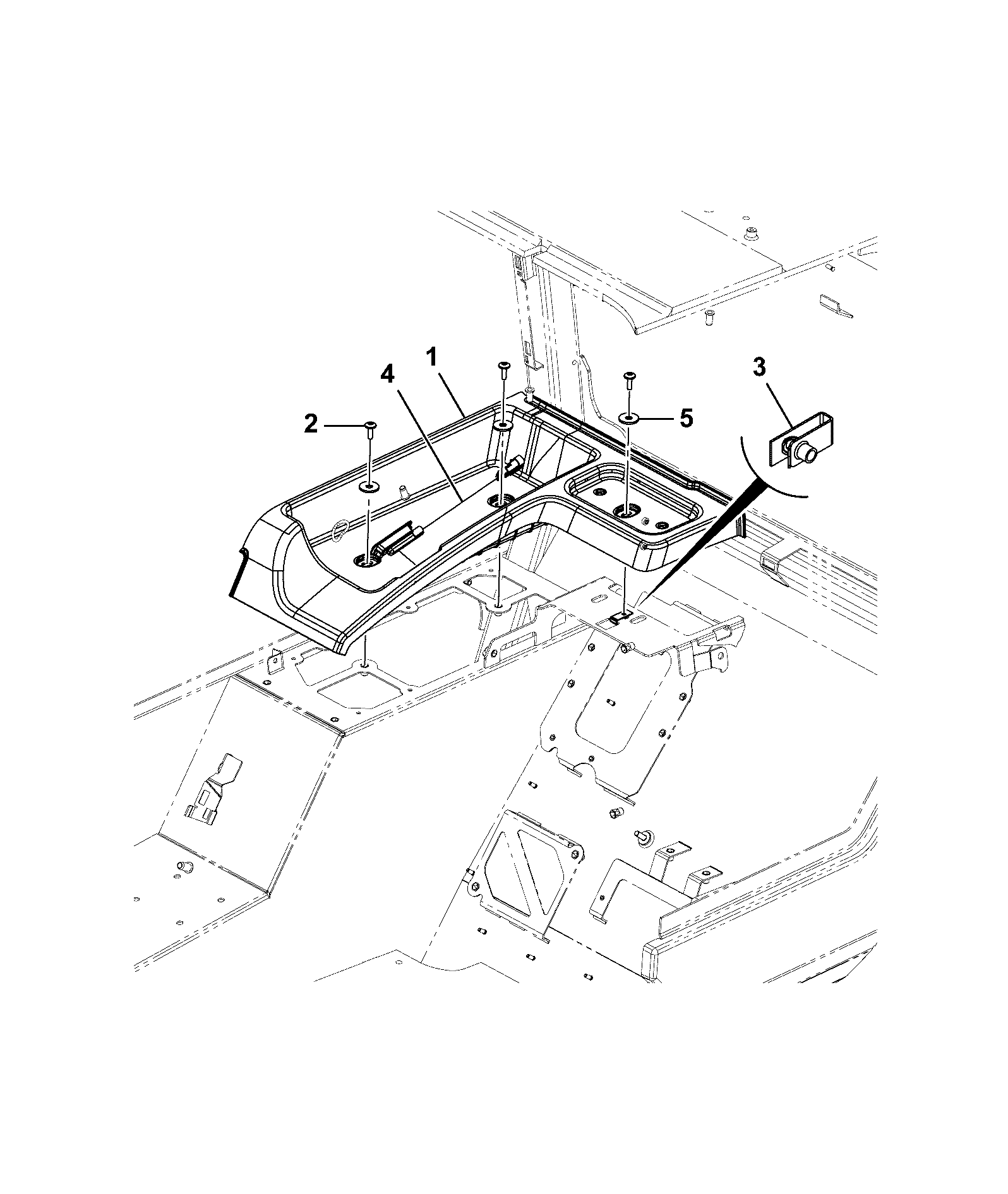

B270-235-1 MOULDINGS/TRIM INSTALLATION REAR ECU TRIM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MOULDING REAR ECU (P493) 334/F9620	1	AVAILABLE TO ORDER	$109.85	Quantity
2	SCREW M6x25 BUTTON SOCKET 826/01768	1	AVAILABLE TO ORDER	$2.11	Quantity
3	CLIP-ON NUT M6 (RE-INSTATE) P493 826/01465	1	4 IN STOCK	$8.78	Quantity

Showing 1 to 3 of 3 parts
