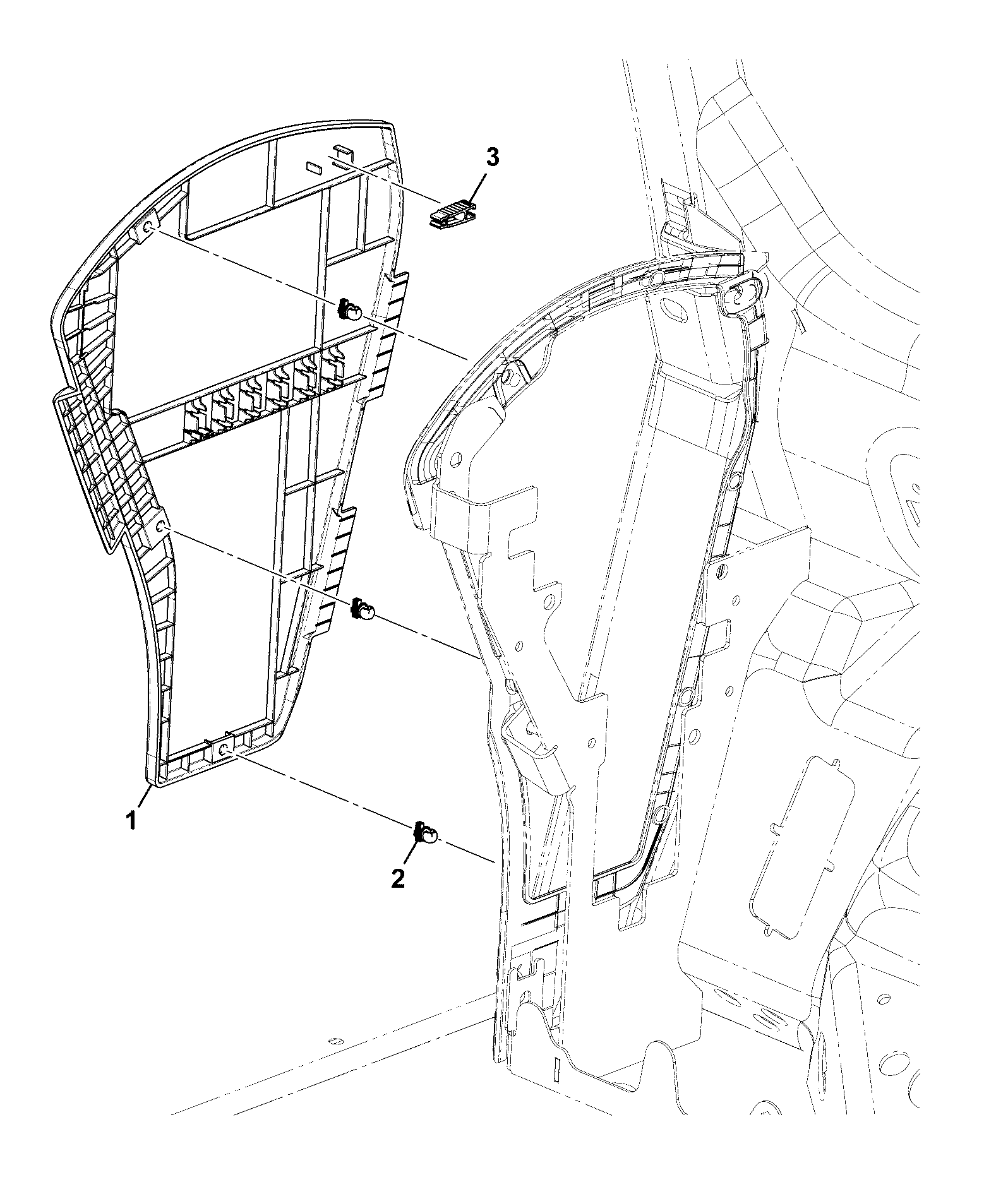

B270-185-1 MOULDINGS/TRIM DETAILS COVER LMI Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	(W) (P) ABI LMI COVER (P493) 401/C5461	1	AVAILABLE TO ORDER	$44.45	Quantity
2	PANEL FASTENER (P545) 334/H1237	1	AVAILABLE TO ORDER	$1.02	Quantity

Showing 1 to 2 of 2 parts

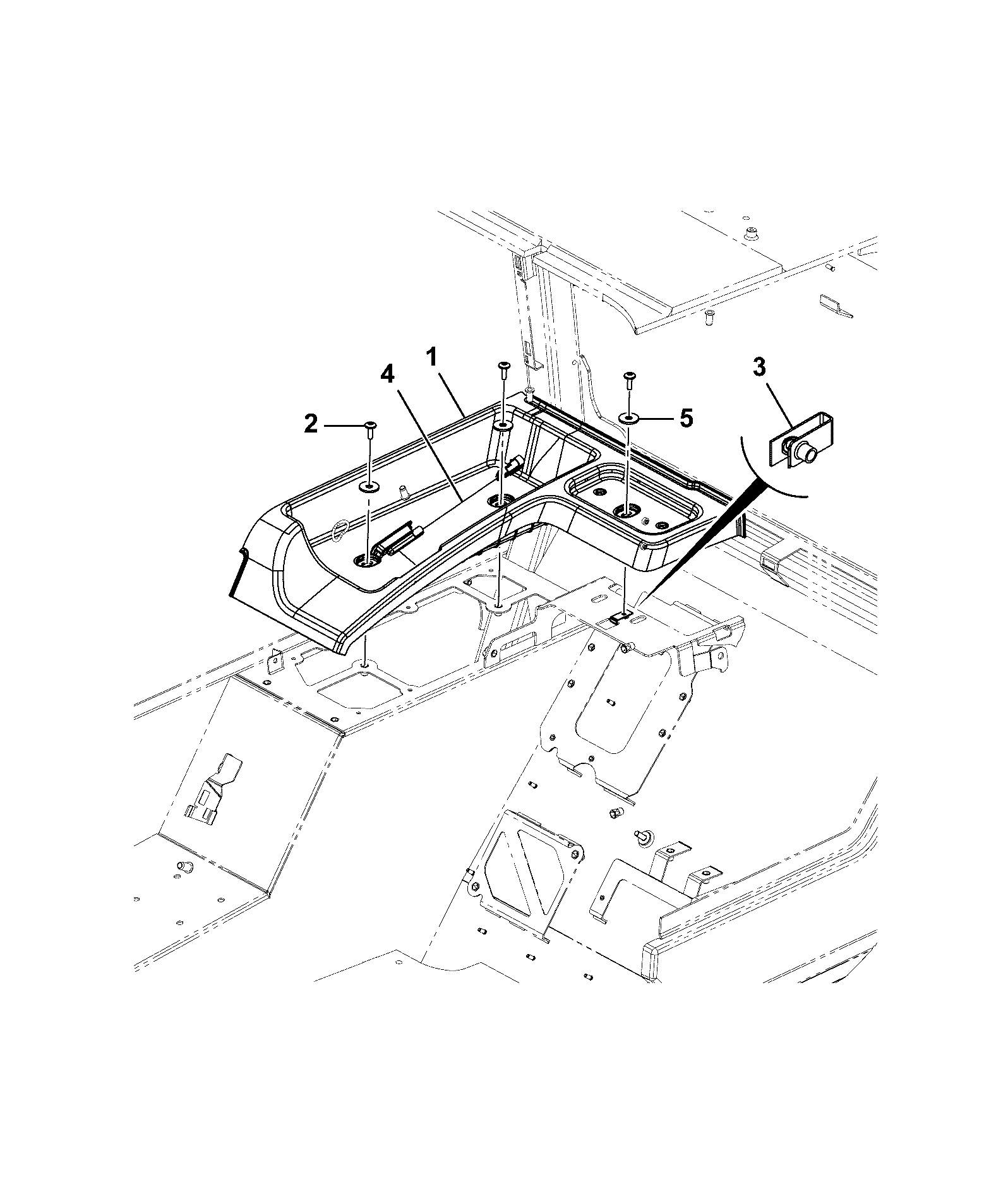

DIAG-B270-175-1-402712 B270-175-1 MOULDINGS/TRIM INSTALLATION REAR STORAGE, RH
