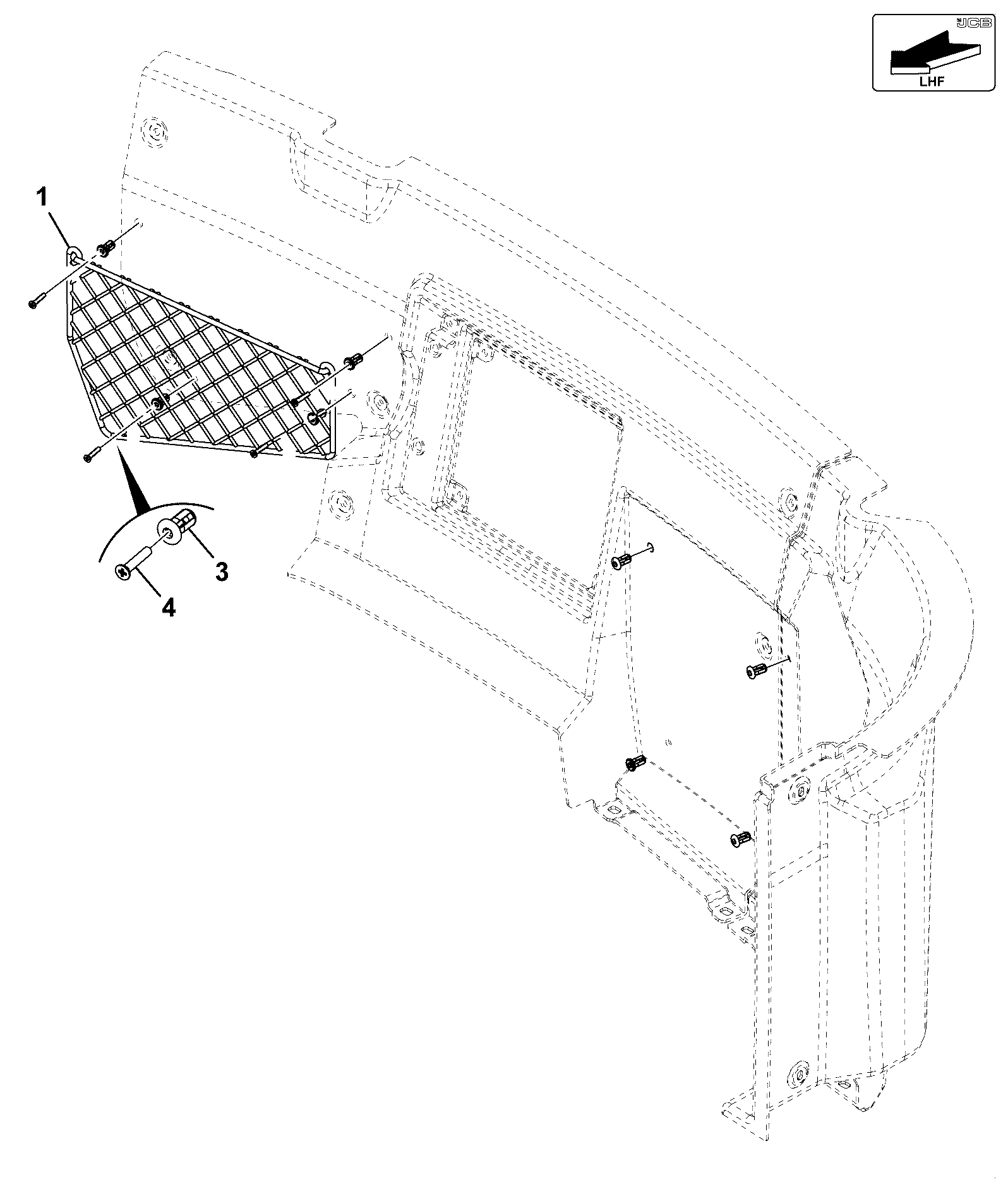

B270-175-1 MOULDINGS/TRIM A-POST TRIM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LH A POST TRIM 403/D9196	1	AVAILABLE TO ORDER	$121.29	Quantity
2	RH A POST TRIM 403/D9199	1	AVAILABLE TO ORDER	$173.51	Quantity
3	TOP HAT WASHER 401/N2444	1	AVAILABLE TO ORDER	$5.34	Quantity
4	BUTTON HEAD SCREW M10x16 (P511) 826/11545	1	AVAILABLE TO ORDER	$7.34	Quantity
6	FOAM - 20 X 670 402/L6119	1	AVAILABLE TO ORDER	$2.68	Quantity

Showing 1 to 5 of 5 parts
