B270-105-1 MOULDINGS/TRIM INSTRUMENT PANEL CAB BUILDS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI INST PANEL MOULDING 332/L7053	1	AVAILABLE TO ORDER	$173.78	Quantity
10	MLD INSTRUMENT PANEL 333/P9964	1	AVAILABLE TO ORDER	$116.66	Quantity
20	AIR VENT 331/26974	1	AVAILABLE TO ORDER	$77.26	Quantity
30	AIR VENT - RECTANGULAR 30/925586	1	AVAILABLE TO ORDER	$56.68	Quantity
40	M6 THREADED INSERT 826/11067	1	AVAILABLE TO ORDER	$5.79	Quantity

Showing 1 to 5 of 5 parts

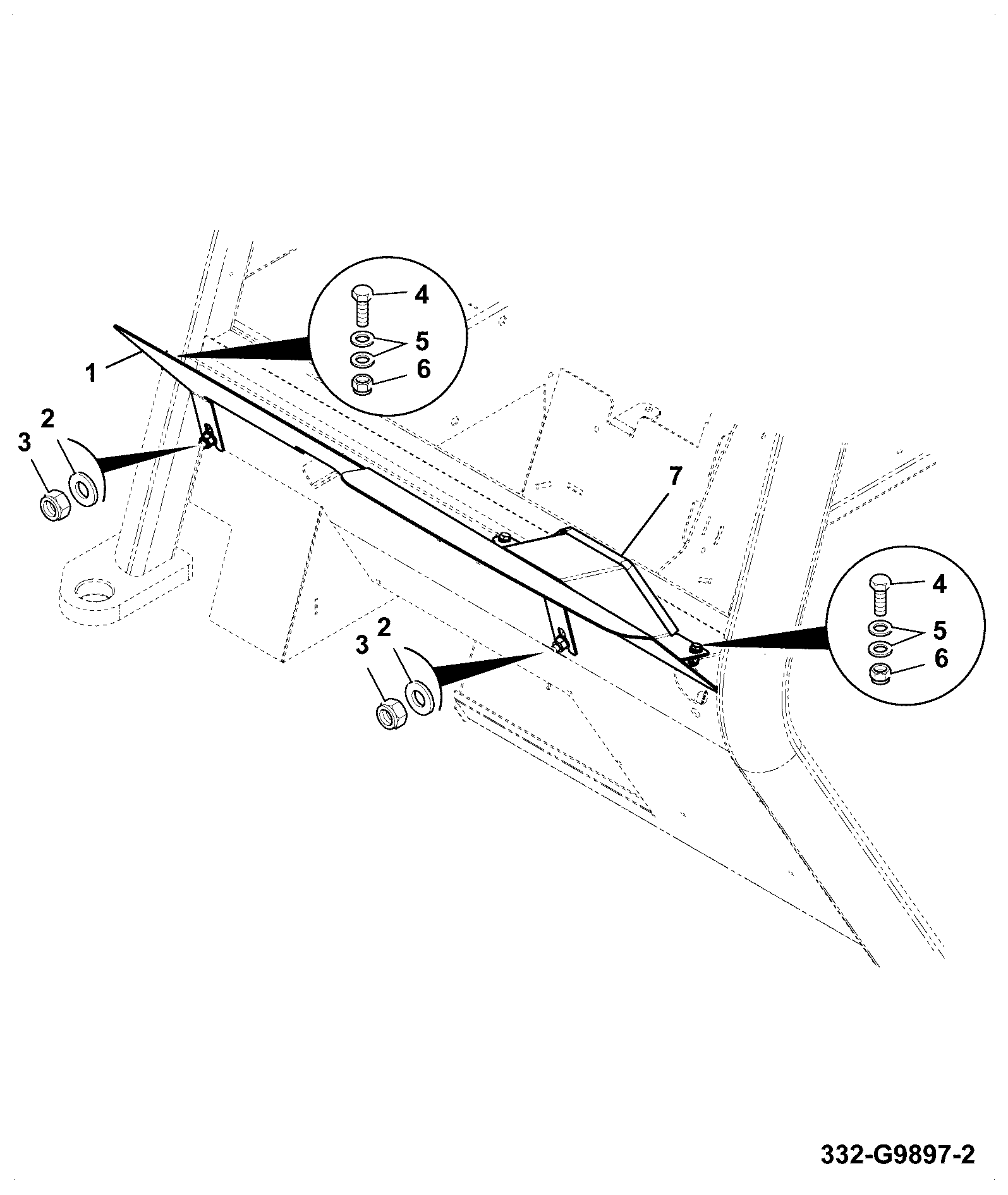

DIAG-B270-65-1-400747 B270-65-1 MOULDINGS/TRIM SPLASHGUARD
View Diagram

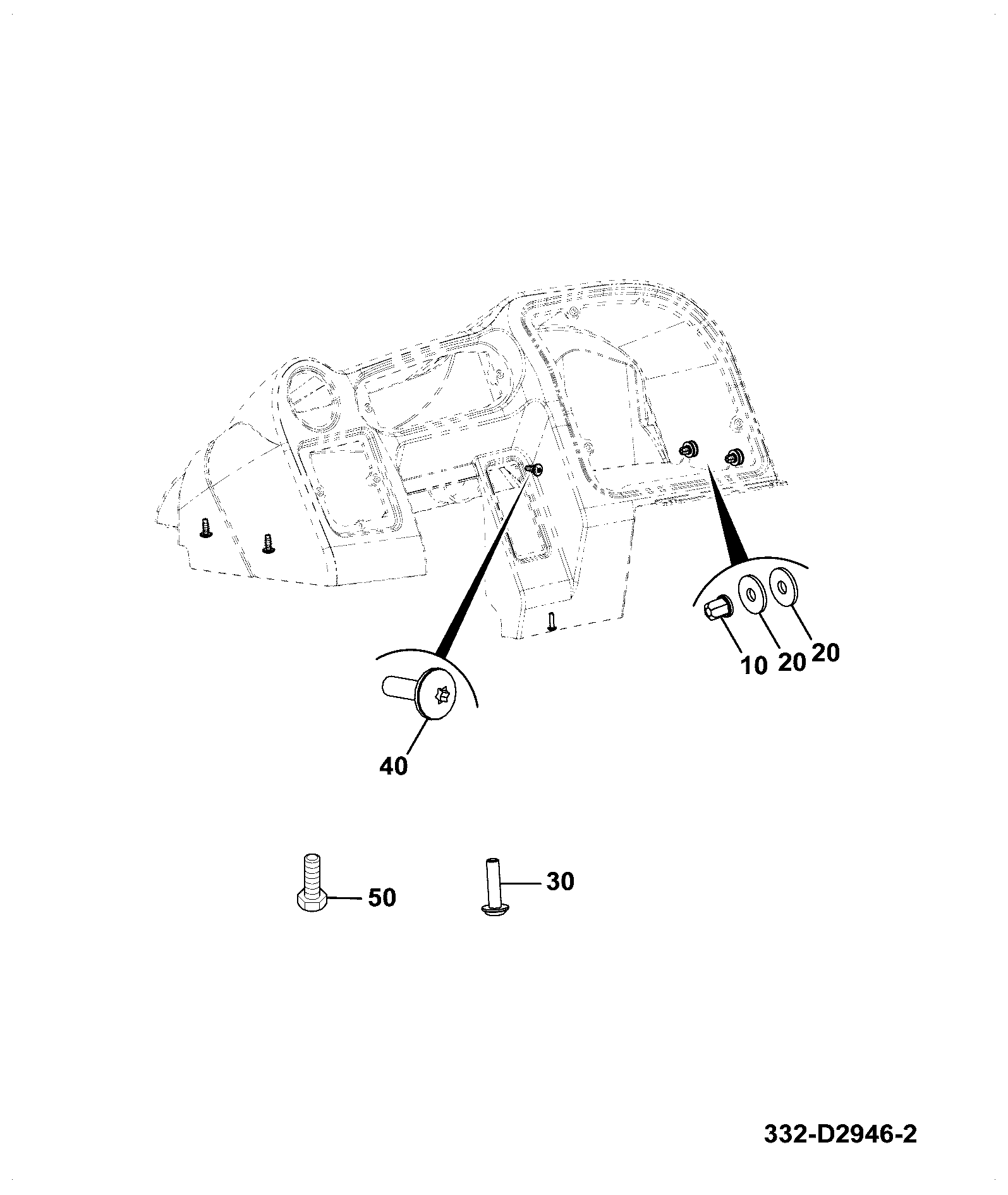

DIAG-B270-115-1-400747 B270-115-1 MOULDINGS/TRIM PANEL FIXING
