Scroll to zoom Click a part # to view details

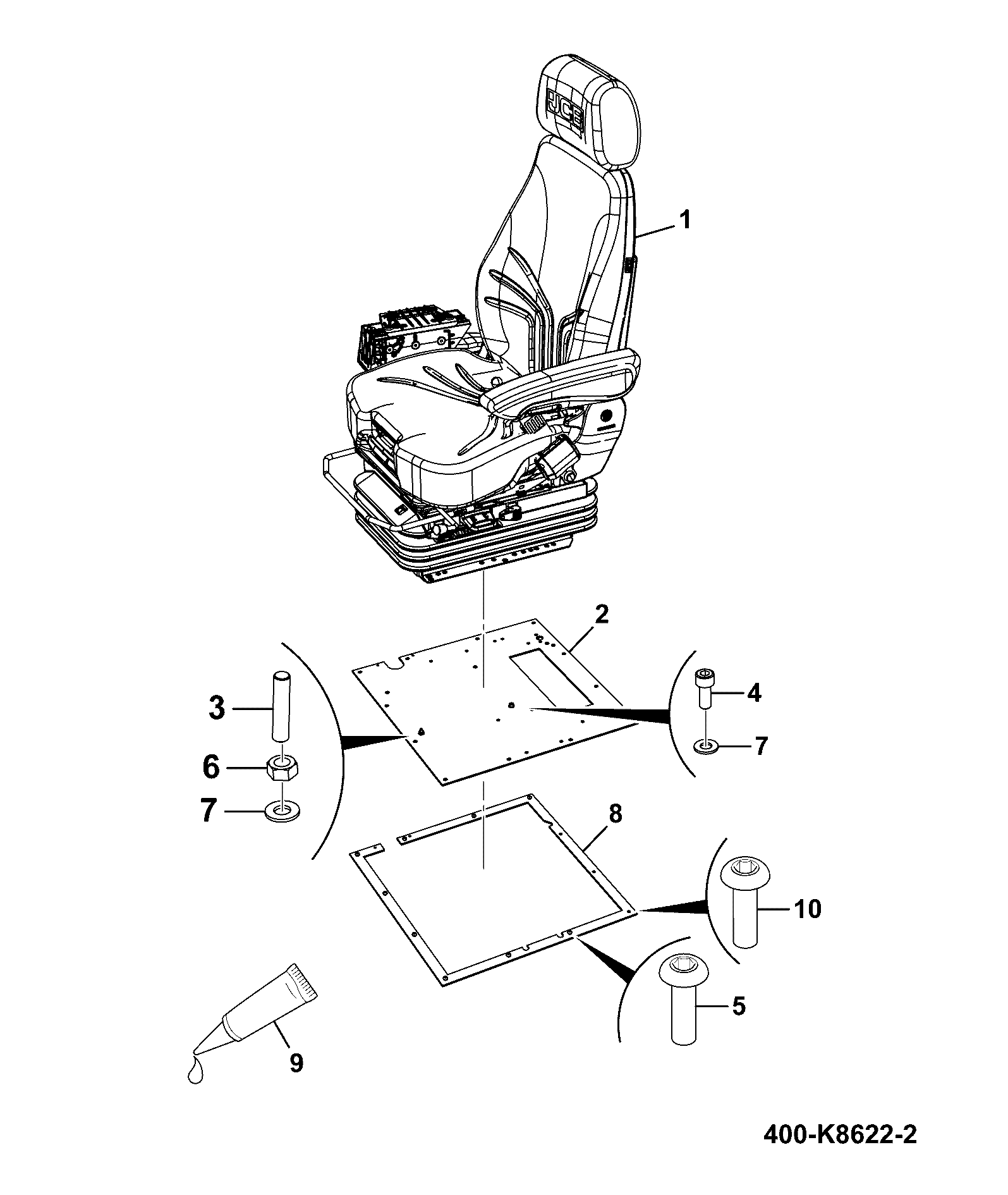

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Cushion backrest 40/910769 | 1 | $655.72 | |||
| 1.1 | Kit - SCREWS ONLY 333/D1206 | 1 | $32.93 | |||
| 2 | Cushion Seat Yuma 40/910729 | 1 | $482.89 | |||
| 3 | Headrest 334/D5322 | 1 | $1,435.65 | |||
| 4 | Insert 333/D1184 | 1 | $44.19 | |||
| 5 | COVER -BACKREST LH 40/910228 40/910949 | 1 | $57.57 | |||
| 6 | Armrest left hand 40/910773 40/911013 | 1 | $302.51 | |||
| 7 | Frame 333/D1187 | 1 | $646.67 | |||
| 8 | Kit 332/H7532 | 1 | $210.97 | |||
| 9 | Bearing 333/D1189 | 1 | $46.15 | |||
| 10 | Panel 333/D6099 | 1 | $142.44 | |||
| 10.1 | Kit swivel 333/D1209 | 1 | $128.32 | |||
| 13 | Trigger 333/C8642 | 1 | $71.52 | |||
| 14 | Lever 40/910263 | 1 | $90.38 | |||
| 15 | Adjuster 333/D1190 | 1 | $237.92 | |||
| 15.1 | Kit Depth/Angle Seat Small Parts 333/D1212 | 1 | $33.99 | |||
| 17 | Bracket 40/910226 | 1 | $124.53 | |||
| 19 | Kit 333/C8637 | 1 | $108.28 | |||
| 20 | Switch Seat 333/C9175 | 1 | $665.34 | |||
| 21 | Seat 333/C8640 | 1 | $463.81 | |||
| 22 | Wiring Harness Cpl. 336/A0051 | 1 | $496.29 | |||
| 23 | Kit, Slide Adjustment 336/D7984 | 1 | $527.19 | |||
| 24 | Kit 333/D1193 | 1 | $90.97 | |||
| 25 | Swivel Cpl 336/A0053 | 1 | $1,328.75 | |||
| 26 | Support Frame Arm Rest 336/A0054 | 1 | $2,092.31 | |||
| 27 | Multifunctionality Arm 336/A0055 | 1 | $2,282.28 | |||
| 28 | Kit 333/D1216 | 1 | $54.62 | |||
| 29 | Cover 40/910267 | 1 | $239.87 | |||
| 30 | Kit 333/D1218 | 1 | $77.54 | |||
| 31 | Kit 333/D1219 | 1 | $685.70 | |||
| 32 | Handle 333/H4128 | 1 | $18.82 | |||
| 34 | kit 333/H4212 | 1 | $54.00 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-
DIAG-B260-75-1-393665 B260-75-1 SEATS SERVICE PARTS ENTRY LEVEL
View Diagram -
DIAG-B260-85-1-393665 B260-85-1 SEATS SERVICE PARTS SEAT SUSPENSION ASSEMBLY
View Diagram -
DIAG-B260-70-5-393665 B260-70-5 SEATS SEAT ASSEMBLY HIGH BACK DRIVERS
View Diagram
