| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

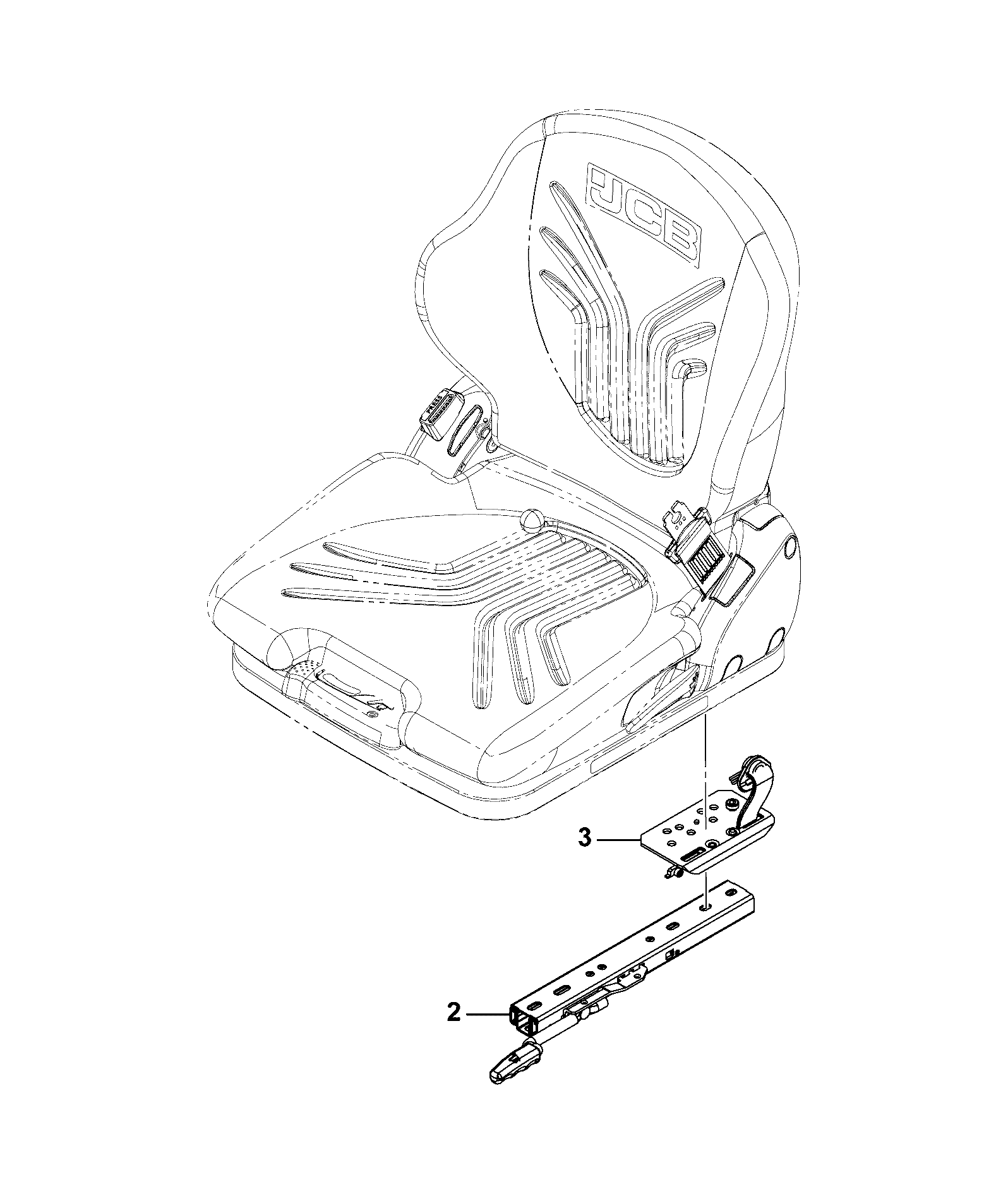

| 2 | W.A. UPPER PLATE LH 332/V4449 | 1 | $78.52 | |||
| 3 | FASTENER FIR TREE (P712) 826/10464 | 1 | $2.03 | |||
| 5 | WA DOZER LEVER 332/L1150 402/E7371 | 1 | $155.88 | |||
| 6 | BARREL LOCK WBH - 162/03434 333/C3143 | 1 | $57.31 | |||
| 7 | KNOB BASE 1-SWITCH 332/G6864 | 1 | $28.96 | |||
| 8 | KNOB TOP 1-SWITCH 332/G6805 | 1 | $37.73 | |||
| 9 | BUSH 831/00065 831/00065A | 1 | $20.17 | |||
| 10 | DISC RETAINING 231/75601 | 1 | $15.92 | |||
| 11 | TOLERANCE RING 122/67459 122/67459A | 1 | $7.41 | |||
| 12 | RUBBER COVER - DUMP SWITC 256/05709 | 1 | $16.84 | |||
| 14 | ABI WASHER BOTTLE 331/14075 401/D5929 | 1 | $93.23 | |||
| 15 | WASHER BOTTLE BRACKET WA 335/11463 | 1 | $16.62 | |||
| 20 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 22 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 23 | SET-SCREW M_5 L-_16mm 1315/0103D | 1 | $2.08 | |||
| 24 | POP RIVET 826/01070 | 1 | $0.78 | |||
| 25 | SCREW BUTTON HEAD M10x20 (P763) 826/11619 | 1 | $0.78 | |||
| 26 | SOCKET SCREW M8 336/C1273 | 1 | $0.86 | |||
| 27 | SLEW LOCK PIN RETAINER 331/57442 | 1 | $16.84 | |||
| 28 | KNOB DECAL DOZER & 2 SP T 817/18495 | 1 | $6.53 | |||
| 29 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 31 | RELAY MICRO 35/20A 12V - BLUE 716/E0156 | 1 | $21.52 | |||
| 32 | ELEC TIMING RELAY 5 SEC 704/50240 401/D2504 | 1 | $140.32 | |||
| 35 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 36 | SET SCREW M10x35 1315/0409D | 1 | $0.00 | |||
| 38 | W.A. UPPER PLATE RH 335/11434 | 1 | $76.95 | |||
| 43 | CABLE TIE 826/01626 | 1 | $0.15 | |||
| 50 | HARNESS SWITCH (LATCHING) 334/U1600 | 1 | $224.81 | |||
| 51 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 52 | TOP HAT WASHER 334/V0957 | 1 | $15.78 | |||
| 53 | 1 MM SHIM 334/V0958 | 1 | $10.43 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-B260-45-1-397948 B260-45-1 SEATS ABI SEATBASE
View Diagram -
DIAG-B260-75-5-397948 B260-75-5 SEATS ASSEMBLY SEATBASE
View Diagram -
DIAG-B260-40-1-397948 B260-40-1 SEATS ABI FABRIC
View Diagram
