Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | FLOORPLATE W.A. 335/12193 | 1 | $143.98 | |||
| 4 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 5 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 6 | BARREL LOCK WBH - 162/03434 333/C3143 | 1 | $57.31 | |||
| 7 | ISSOLATION MOUNT 331/20377 | 1 | $181.21 | |||
| 8 | SCREW M5x16 BUTTON HEAD 826/01429 | 1 | $4.87 | |||
| 9 | Bolt M16x90 1315/3719D | 1 | $10.80 | |||
| 10 | REBOUND PLATE 823/10891 | 1 | $12.55 | |||
| 14 | INSULATION SEAT BASE 331/55310 | 1 | $34.78 | |||
| 15 | INSULATION SEATBASE 331/55311 | 1 | $8.44 | |||
| 17 | SEAT BASE REAR FILTER GAUZE 32/925825 | 1 | $95.51 | |||
| 19 | FLOOR PLATE INSULATION 331/61120 | 1 | $14.89 | |||
| 21 | CAP SCREW 1391/9405 | 1 | $2.00 | |||
| 25 | DEUTSCH DT MNTG CLIP 7210/0067 | 1 | $26.59 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 27 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $1.36 | |||
| 28 | RESISTOR PLUG 1K2 0.6W 332/S2993 | 1 | $15.20 | |||
| 30 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-B260-600-1-398134 B260-600-1 SEATS FABRIC UPPER (OPTION)
View Diagram -

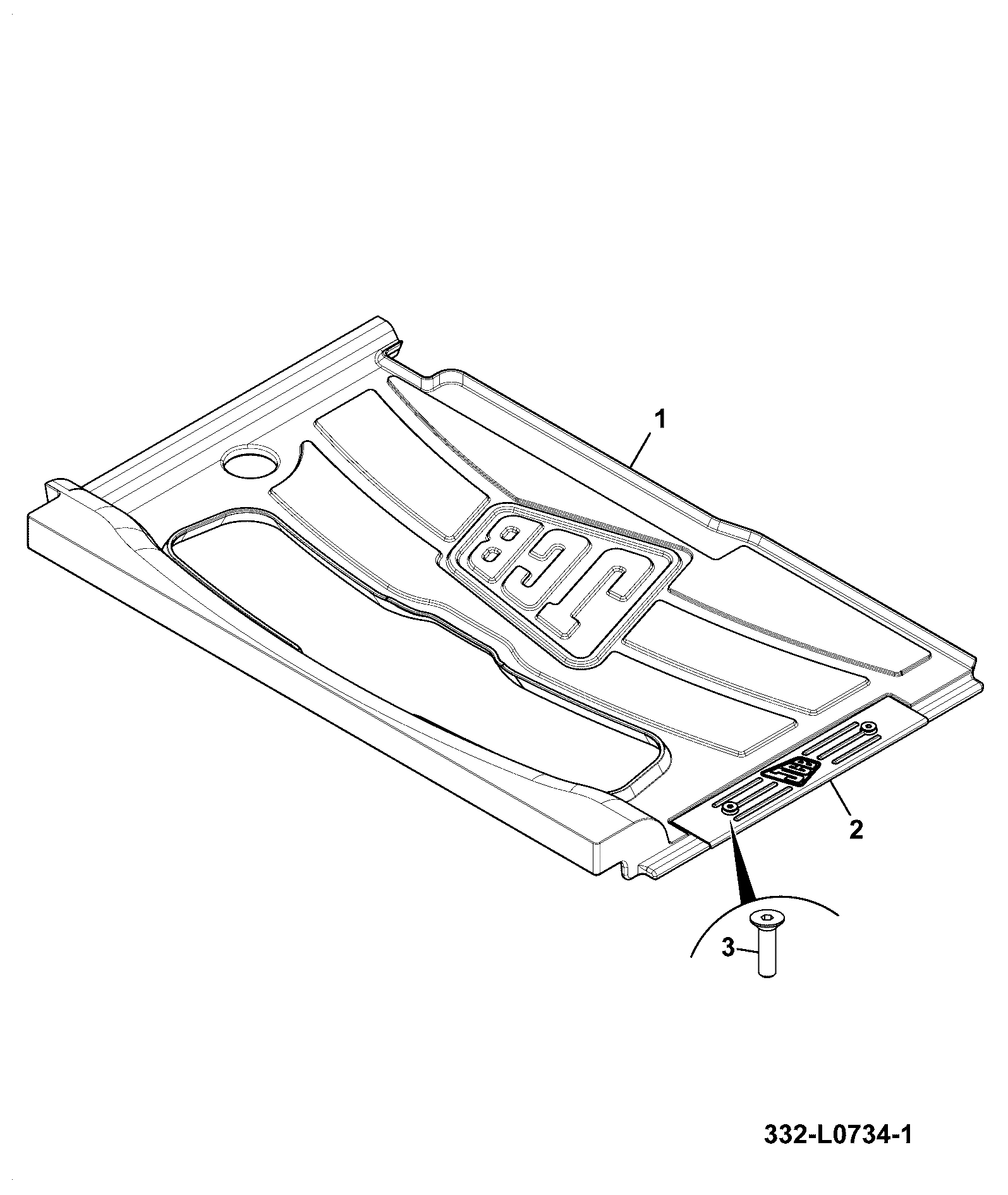

DIAG-B270-1-1-398134 B270-1-1 FLOORMAT ASSEMBLY
View Diagram -

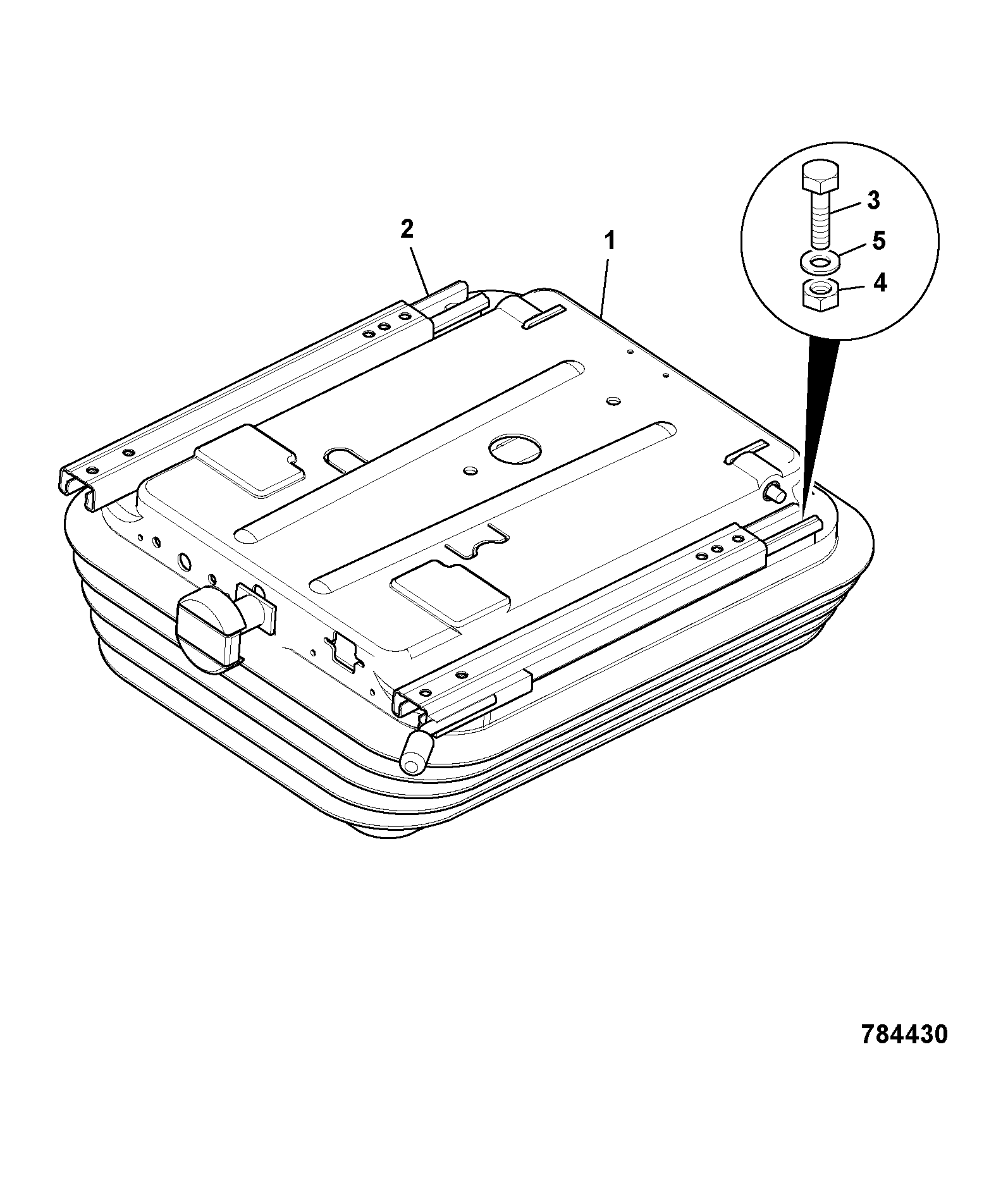

DIAG-B260-100-1-398134 B260-100-1 SEATBASE SUSPENSION UNIT A.B.I ASSEMBLY
View Diagram
