Scroll to zoom Click a part # to view details

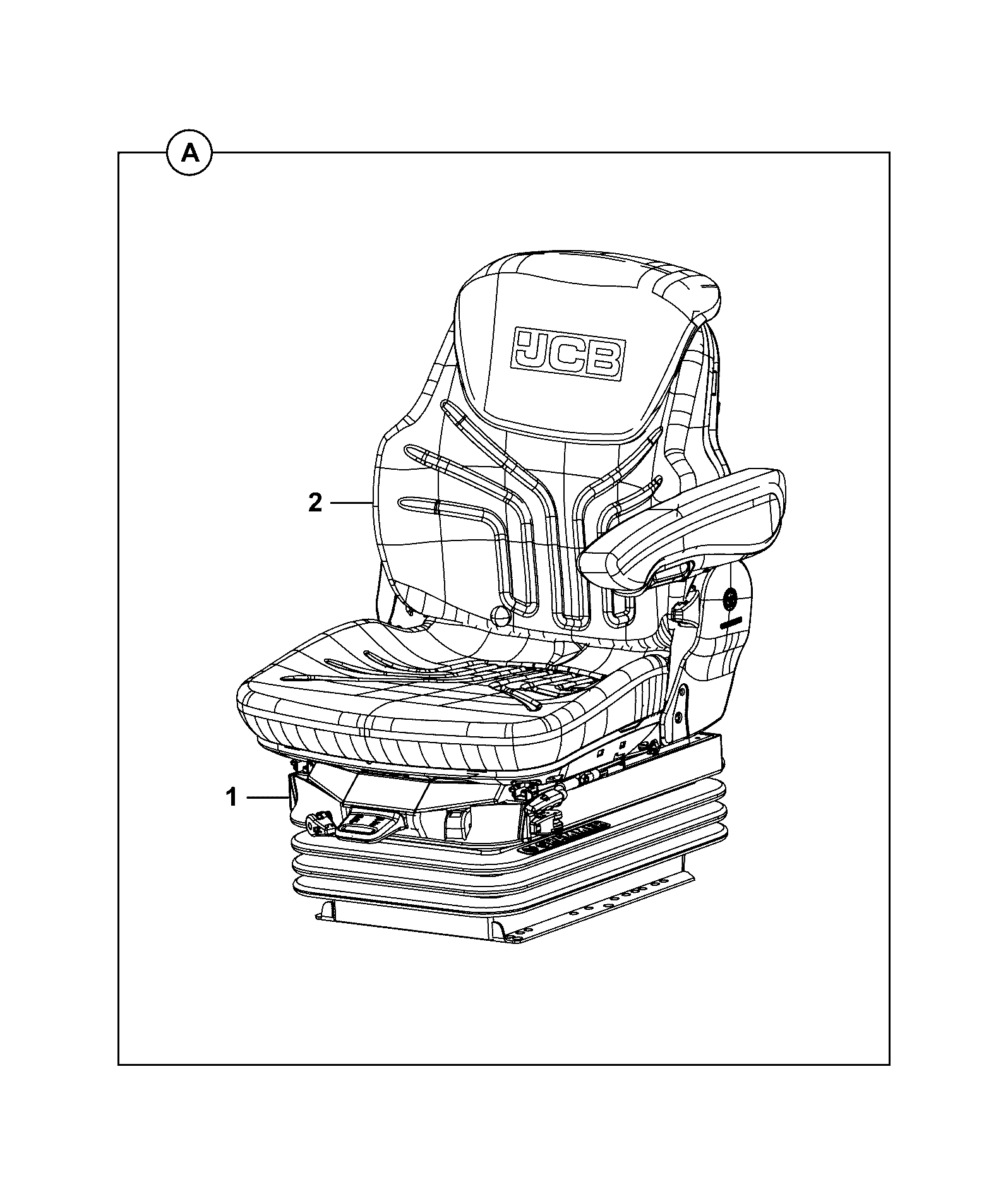

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Backrest Cushion Cloth 400/08784 | 1 | $649.66 | |||
| 2 | Seat Cushion 400/08785 | 1 | $618.71 | |||
| 3 | Headrest, Extension 400/08786 | 1 | $460.56 | |||
| 4 | Insert 333/D1184 | 1 | $44.19 | |||
| 5 | COVER -BACKREST LH 40/910228 40/910949 | 1 | $57.57 | |||
| 6 | Armrest 400/08787 | 1 | $481.08 | |||
| 7 | BACK REST 40/910275 | 1 | $613.50 | |||
| 8 | Handle Assy 400/08037 | 1 | $90.76 | |||
| 9 | Bearing 333/D1189 | 1 | $46.15 | |||
| 10 | COMPENSATOR 336/A2747 | 1 | $166.07 | |||
| 11 | Switch (Operator presence 334/E2375 | 1 | $306.43 | |||
| 12 | Plate 40/910960 | 1 | $506.58 | |||
| 13 | WIRING HARNESS 336/A2750 | 1 | $127.74 | |||
| 14 | Kit - SCREWS ONLY 333/D1206 | 1 | $32.93 | |||
| 15 | Kit swivel 333/D1209 | 1 | $128.32 | |||
| 16 | Kit 333/D1218 | 1 | $77.54 | |||
| 17 | Handle 400/08788 | 1 | $85.51 | |||
| 18 | Cover 400/08038 | 1 | $36.35 | |||
| 19 | Adjustment Slide Kit 400/08789 | 1 | $331.97 | |||
| 20 | Mounting Parts 400/08790 | 1 | $168.50 | |||
| 21 | Handle, Adjustment Slide 400/08791 | 1 | $70.65 | |||
| 22 | Document Net Kit 335/H3307 | 1 | $212.02 | |||
| 23 | kit 333/H4212 | 1 | $54.00 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-B260-45-1-403011 B260-45-1 SEATS AIR SEAT FABRIC MID
View Diagram -
DIAG-B260-60-1-403011 B260-60-1 SEATS SUSPENSION ASSEMBLY
View Diagram -
DIAG-B260-10-1-403011 B260-10-1 SEATS SEAT CS STANDARD AIR
View Diagram
