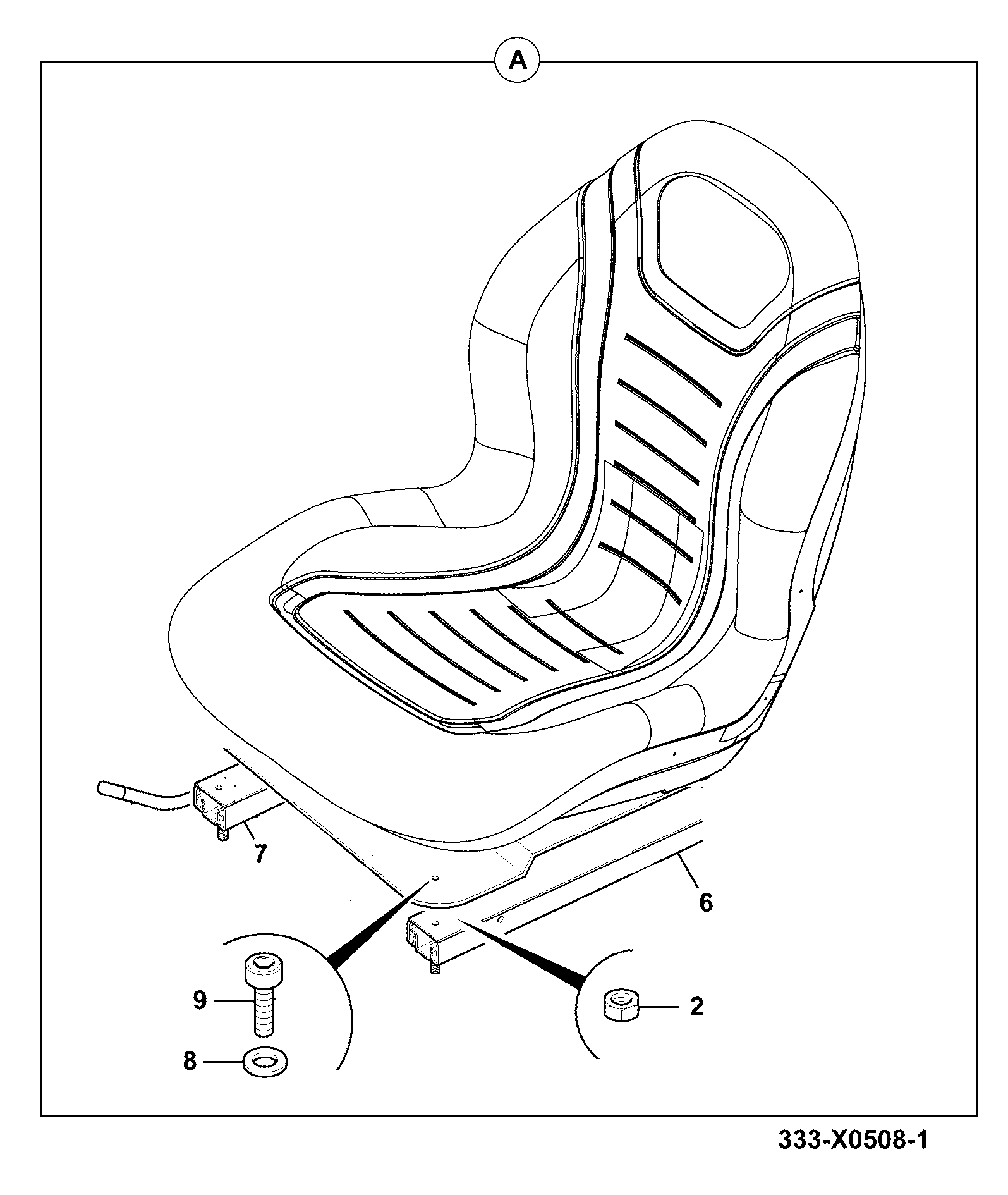

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BLIND RIVET 1/8 347/22361 | 1 | $0.15 | |||
| 2 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 3 | CASE HANDBOOK 444/E0064 157/51701 | 1 | $112.28 | |||
| 4 | ABI CASTING-LH JOYSTICK 333/X7674 | 1 | $264.71 | |||
| 5 | STRUT, GAS (P712) 331/63292 | 1 | $57.43 | |||
| 6 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 7 | WA-LH POD PIN 336/A4247 | 1 | $6.42 | |||
| 8 | NUT M6 THIN PLAIN (BR3) 1370/0102Z | 1 | $0.65 | |||
| 9 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 10 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 11 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | BALL JOINT 10mm M8 331/32843 | 1 | $8.12 | |||
| 14 | STRUT-LAP BAR 332/X0242 | 1 | $187.80 | |||
| 15 | CAP-SCREW M_6 L-_20mm 1391/3205Z 1391/3205 | 1 | $0.85 | |||
| 16 | WA-PIVOT PIN 336/A4244 | 1 | $4.87 | |||
| 17 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 18 | M6X16 BUTTON/HD BOLT 826/01428 | 1 | $1.20 | |||
| 19 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 19 of 19 parts
