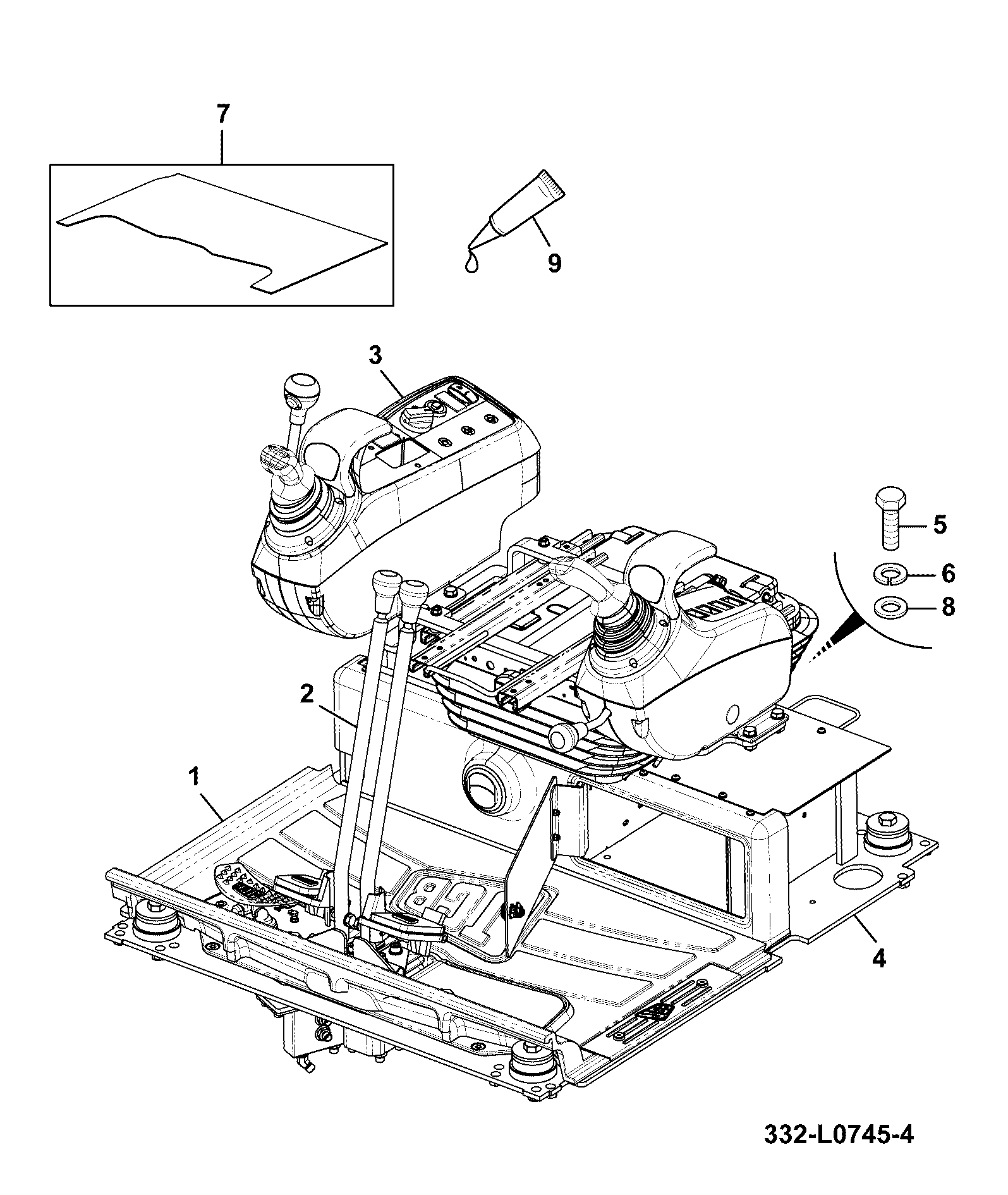

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | COVER SEAT BASE LEFT 332/W5775 333/U6006 | 1 | $133.59 | |||
| 3 | FRONT MLDG - SEAT BASE 332/W5742 | 1 | $108.50 | |||
| 4 | FLOORPLATE W.A. 335/12193 | 1 | $143.98 | |||
| 5 | FLOOR PLATE SEAL 333/S5843 | 1 | $39.26 | |||
| 6 | FLOOR PLATE SEAL 333/T2969 | 1 | $39.26 | |||
| 7 | DOOR TOOL BOX 332/W7242 | 1 | $173.64 | |||
| 8 | BARREL LOCK WBH - 162/03434 333/C3143 | 1 | $57.31 | |||
| 9 | AIR VENT 331/26974 | 1 | $77.26 | |||
| 10 | RESISTIOR DIODE PLUG - 39R 15W 332/U0486 | 1 | $76.59 | |||
| 11 | POP RIVET 332/U5455 | 1 | $0.18 | |||
| 12 | ISSOLATION MOUNT 331/20377 | 1 | $181.21 | |||
| 13 | REBOUND PLATE 823/10891 | 1 | $12.55 | |||
| 14 | Bolt M16x90 1315/3719D | 1 | $10.80 | |||
| 15 | GROMMET 2410/1114 | 1 | $21.37 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 18 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 19 | SCREW M5x16 BUTTON HEAD 826/01429 | 1 | $4.87 | |||
| 20 | 'BOLT M_6 L-_16mm 8.8 FLANGED HEX(KANBAN 1317/3203Z | 1 | $2.91 | |||
| 21 | SCREW M6x10 BUTTON SOCKET (P960) 826/01673 | 1 | $1.08 | |||
| 22 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 23 | LOCKNUT M5 1370/0003D | 1 | $0.00 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B260-25-1-398163 B260-25-1 SEATS SUSPENSION UNIT A.B.I ASSEMBLY
View Diagram -
DIAG-B260-40-5-398163 B260-40-5 SEATS BASE HVAC
View Diagram -
DIAG-B260-20-1-398163 B260-20-1 SEATS POD BASE MOUNTING
View Diagram
