Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| LEATHER PASSENGER SEAT 334/V6630 | 1 | $2,719.23 | ||||
| 1 | Backrest cushion 334/H4103 | 1 | $3,173.81 | |||
| 2 | Cushion 334/H4105 | 1 | $3,742.22 | |||
| 3 | Screw 40/910625 | 1 | $1.26 | |||
| 5 | NUT, SEAT HANDLE 478/20117 | 1 | $0.50 | |||
| 18 | Washer 334/H4232 | 1 | $27.23 | |||
| 28 | Backrest extension 334/H4234 | 1 | $1,616.66 | |||
| 35 | COVER -BACKREST LH 40/910228 40/910949 | 1 | $57.57 | |||
| 37 | Spring 40/911142 | 1 | $21.93 | |||
| 40 | Seat Plate 336/A0064 | 1 | $369.66 | |||
| 41 | SCREW, M8 x 40 40/910232 | 1 | $2.08 | |||
| 43 | NUT 478/20044 | 1 | $0.81 | |||
| 44 | LEVER 40/910233 | 1 | $73.71 | |||
| 45 | HANDLE 40/910234 | 1 | $12.85 | |||
| 46 | PLATE 40/910235 | 1 | $30.86 | |||
| 47 | SCREW M6 X 10 40/910236 | 1 | $13.22 | |||
| 56 | BACK REST 40/910275 | 1 | $613.50 | |||
| 57 | BUSHING 40/910245 | 1 | $5.13 | |||
| 66 | TUBE 40/910247 | 1 | $79.74 | |||
| 70 | KIT ADJUSTER 40/910252 | 1 | $187.69 | |||
| 77 | SCREW 478/20153 | 1 | $11.19 | |||
| 100 | Bracket 40/910265 | 1 | $42.99 | |||
| 103 | COVER 40/910277 | 1 | $1.64 | |||
| 104 | Cover 40/910267 | 1 | $239.87 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

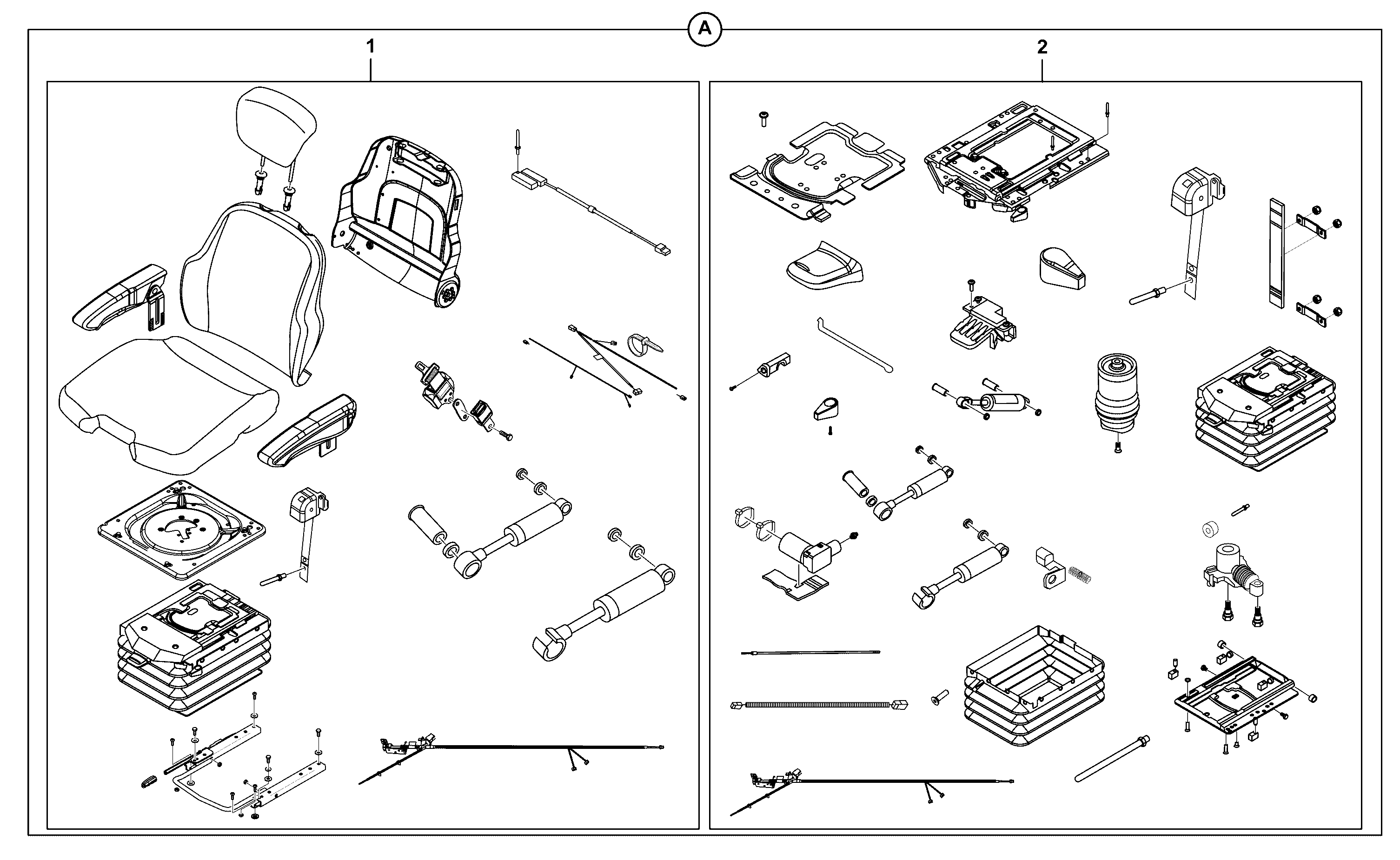

DIAG-B260-30-1-393697 B260-30-1 SEATS UPPER COMPONENTS 334/V6629
View Diagram -

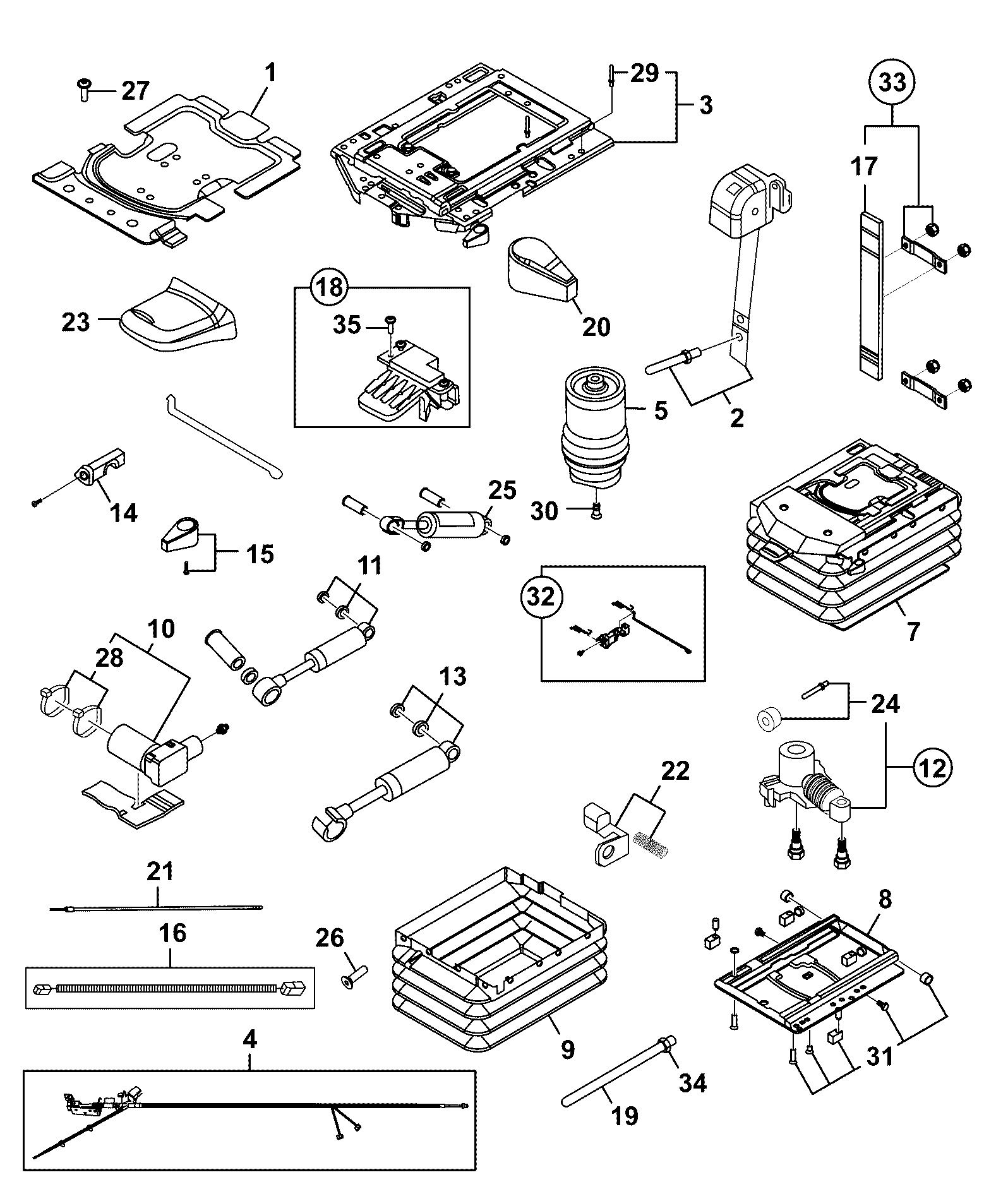

DIAG-B260-31-1-393697 B260-31-1 SEATS LOWER COMPONENTS 334/V6629
View Diagram -
DIAG-B260-35-1-393697 B260-35-1 SEATS PASSENGER STANDARD
View Diagram
