Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | SEAT ABI-CLOTH 401/W0644 | 1 | $2,035.16 | |||
| 30 | SEAT GASKET 402/J5489 | 1 | $30.80 | |||
| 60 | BOLT M_8 L-_20mm FLANGED 1317/3305D | 1 | $1.26 | |||
| 70 | BOLT M_8 L-_25mm G-_8.8 FLANGED HEX 1317/3307D | 1 | $4.11 | |||
| 80 | (W) (P) PHILIDAS NUT 1370/0203 | 1 | $6.63 | |||
| 90 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 100 | GROMMET 2410/0112 | 1 | $6.97 | |||
| 110 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 120 | BOLT FLANGED HEX M8 x 30 g8.8 1317/3308D | 1 | $2.15 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-

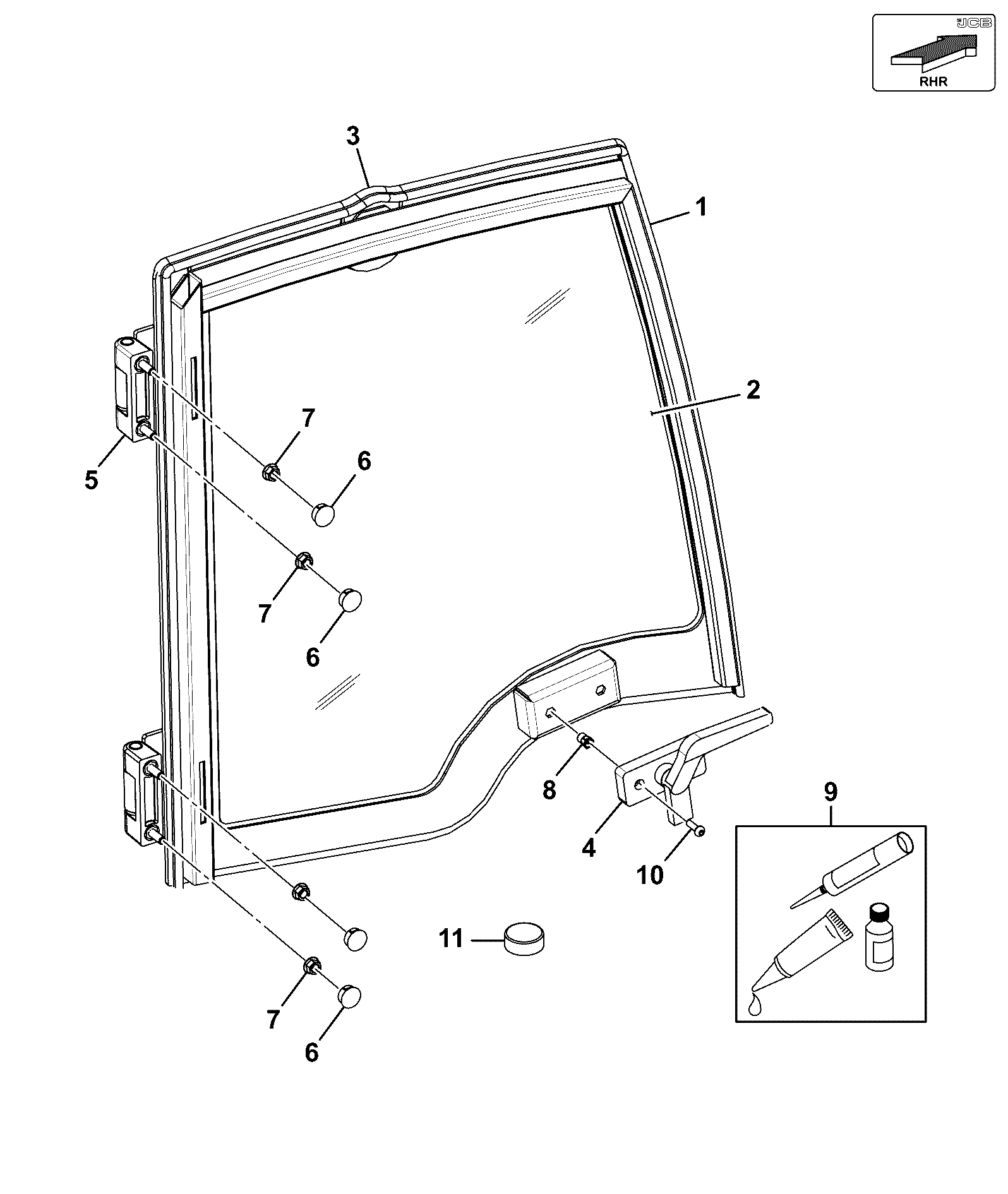

DIAG-B250-100-1-400476 B250-100-1 GLASS/FRAMES INSTALLATION WINDOW
View Diagram -

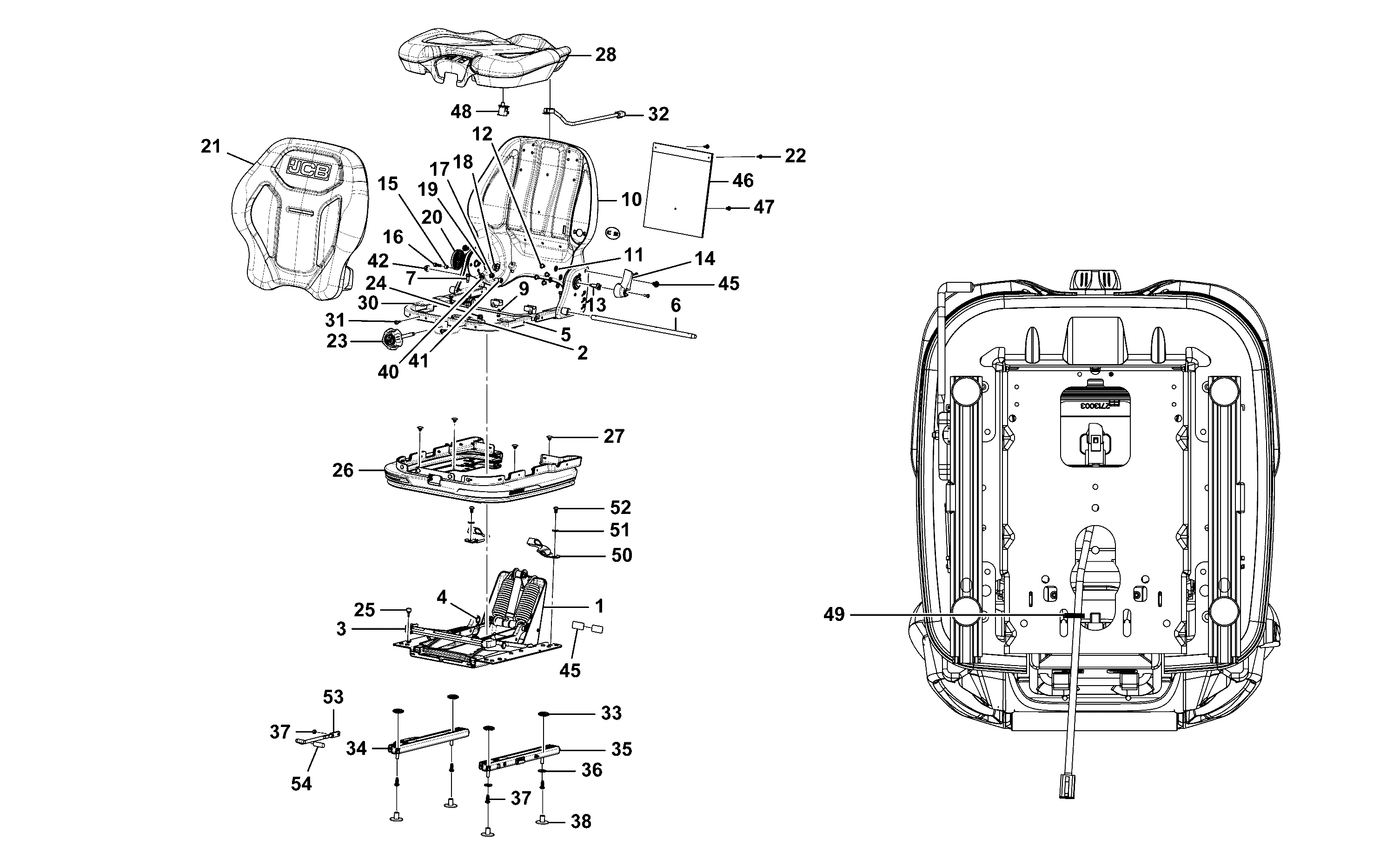

DIAG-B260-30-1-400476 B260-30-1 SEATS COMPONENTS CLOTH
View Diagram -

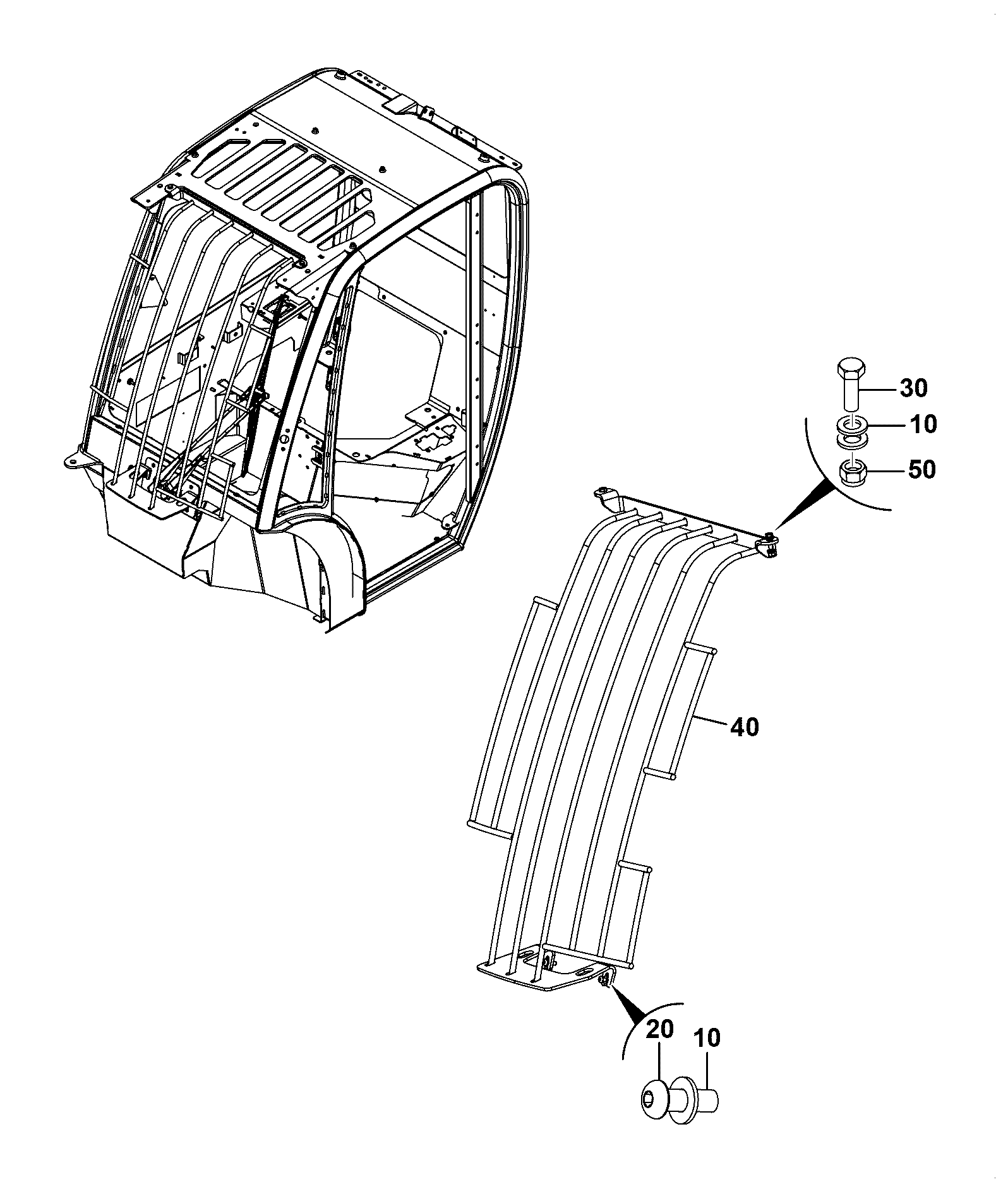

DIAG-B250-95-1-400476 B250-95-1 GLASS/FRAMES INSTALLATION SCREEN GUARD
View Diagram
