Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| OPERATOR SEAT-P458 334/Y5951 | 1 | $1,098.85 | ||||
| 1 | Back Pad PU 336/A1194 | 1 | $60.87 | |||
| 2 | Cushion Pad PU 336/A1195 | 1 | $26.23 | |||
| 6 | Scissors Assembly 336/A1200 | 1 | $81.10 | |||
| 10 | Vane Sensor Switch 336/A0529 | 1 | $48.12 | |||
| 12 | Recliner Lever Kit 336/A1206 | 1 | $14.10 | |||
| 16 | Sector Recliner 336/A1210 | 1 | $33.96 | |||
| 19 | Spring Back Tilt 335/H3841 | 1 | $1.73 | |||
| 22 | Bearing Shaft - 3/8 335/H3827 | 1 | $7.42 | |||
| 29 | Swivel Handle 336/A1219 | 1 | $34.19 | |||
| 43 | Bearing Ball 1/2"(12.7Mm) 336/A1232 | 1 | $20.33 | |||
| 44 | Retainer Ball 336/A1233 | 1 | $9.28 | |||
| 45 | Weight Adjust Knob Assy 336/A1234 | 1 | $12.76 | |||
| 46 | Pin , Roll 5/32 X 5/8 336/A1235 | 1 | $0.38 | |||
| 47 | Thrust Bearing Race 335/H3799 | 1 | $2.03 | |||
| 48 | Thrust Bearing 335/H3797 | 1 | $4.59 | |||
| 50 | Nut, Weight,Adjust 336/A1237 | 1 | $1.43 | |||
| 58 | Spring, Extension 335/H3817 | 1 | $22.49 | |||
| 60 | Bushing, Spring 335/H3821 | 1 | $15.51 | |||
| 63 | Tube, Bearing 335/H3825 | 1 | $1.29 | |||
| 64 | Bushing, Shock 335/H3813 | 1 | $0.38 | |||
| 65 | Damper 335/H3812 | 1 | $29.11 | |||
| 73 | Spring Torsion 336/A1244 | 1 | $0.38 | |||
| 77 | PVC Trim Seat Cushion 335/H3842 | 1 | $28.62 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

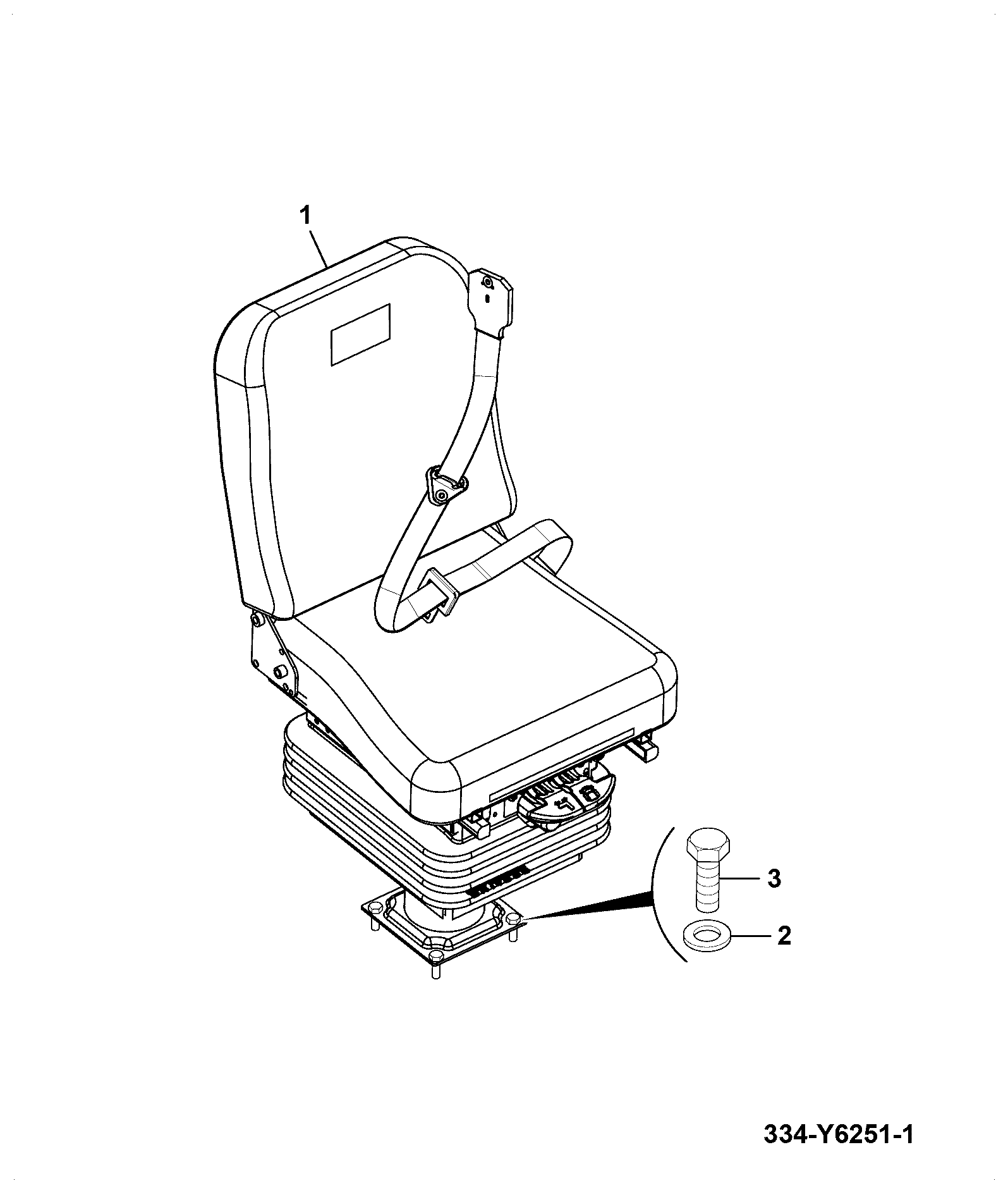

DIAG-B260-15-1-394879-10938154 B260-15-1 SEATS OPERATOR
View Diagram -
DIAG-B250-50-1-394879 B250-50-1 GLASS/FRAMES REAR WINDOW TINTED
View Diagram -

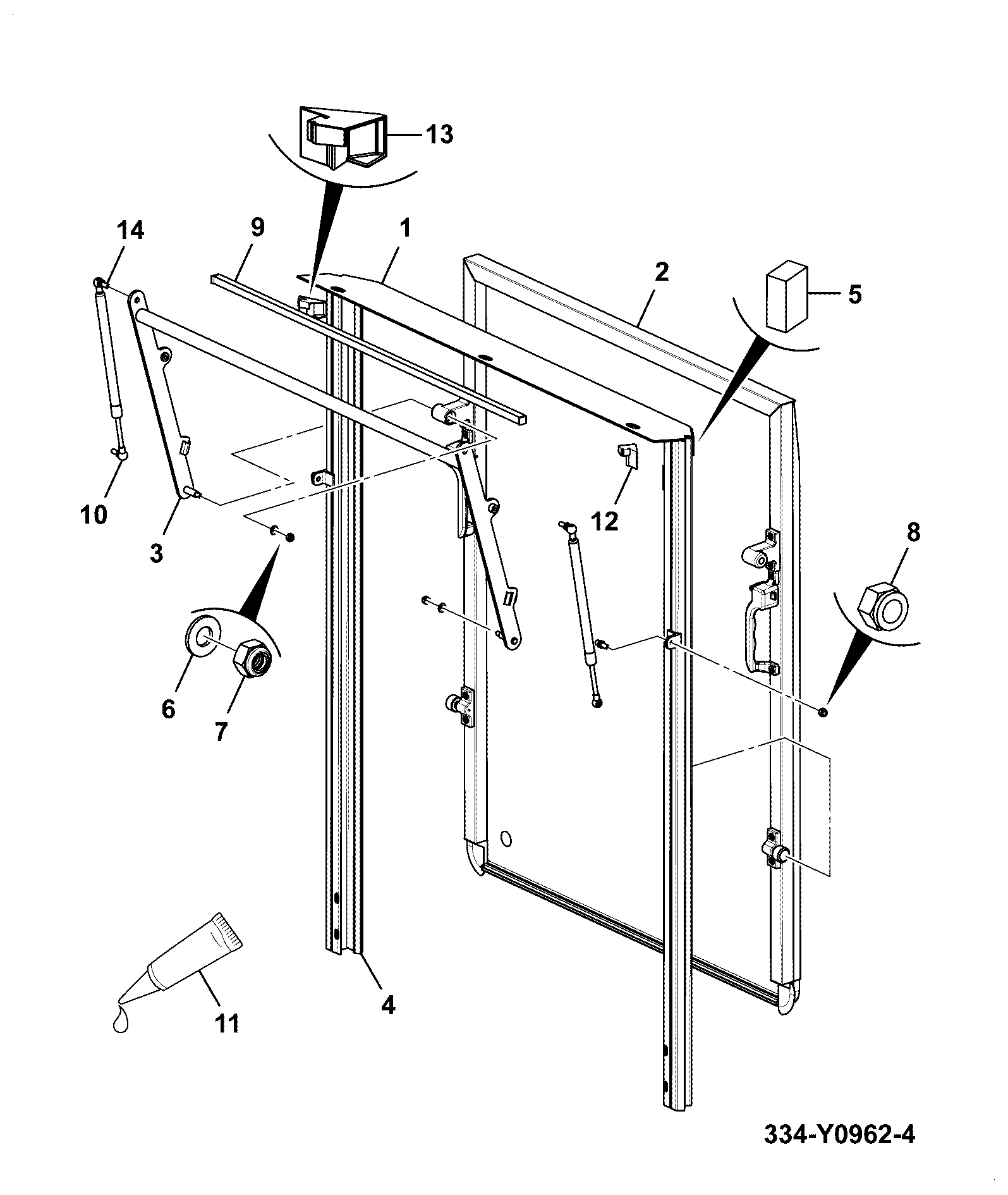

DIAG-B250-45-1-394879-10938141 B250-45-1 GLASS/FRAMES TINTED WINDOW CASSETTE
View Diagram
