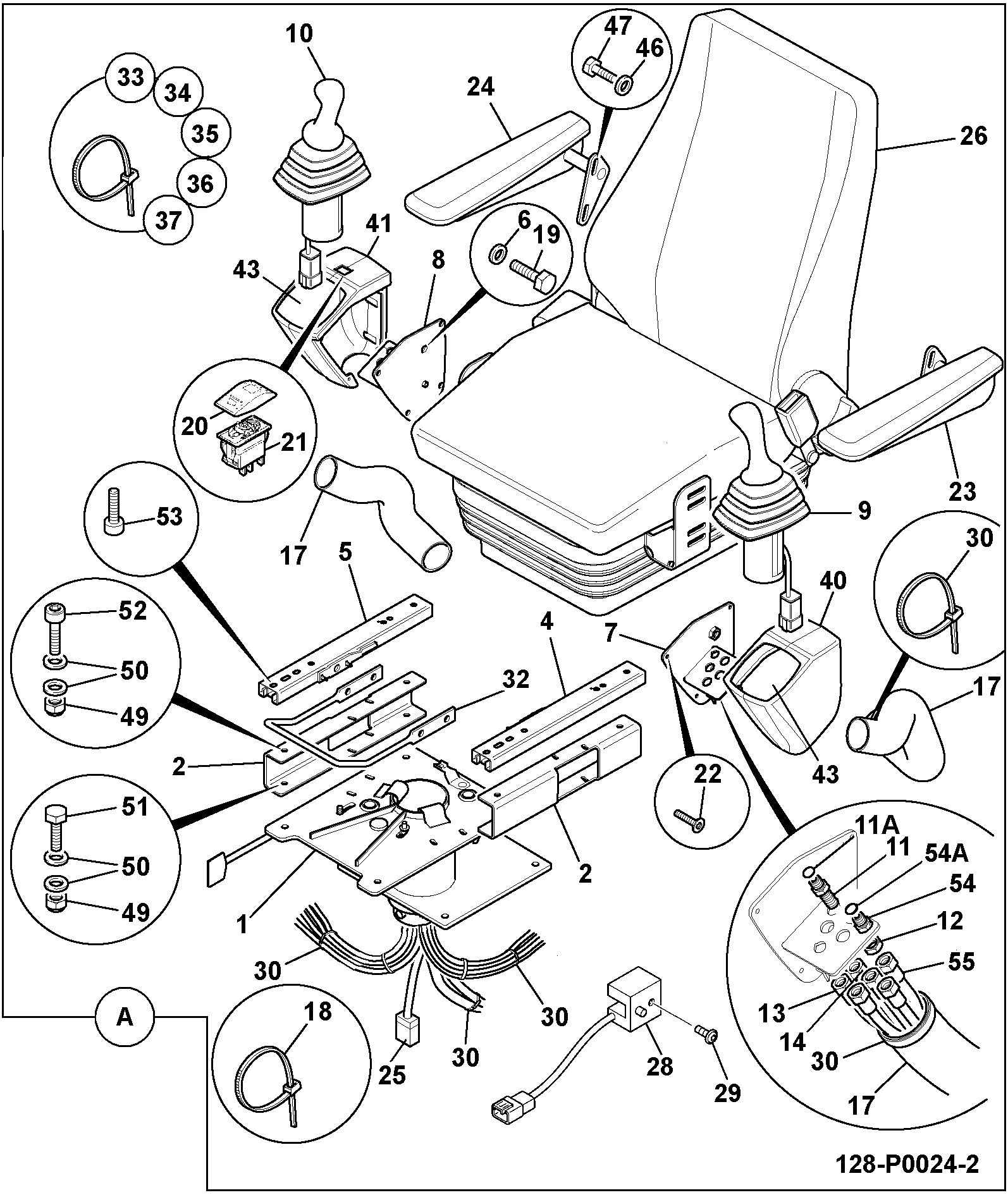

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O Ring 333/E1944 | 1 | $3.73 | ||||
| 1 | PEDESTAL - SEAT 40/910892 128/17568 | 1 | $1,629.48 | |||
| 2 | SEAT RISER 40/910923 | 1 | $155.06 | |||
| 3 | NORDLOCK WASHER M8 LARGE 332/F8518 | 1 | $15.95 | |||
| 4 | SLIDE SEAT LH 40/910409 40/910753 | 1 | $237.33 | |||
| 5 | SLIDE SEAT RH 40/910410 40/910754 | 1 | $235.11 | |||
| 7 | WA MOUNT l/h joystick 128/F0002 | 1 | $178.06 | |||
| 8 | WA MOUNT r/h joystick 128/F0003 | 1 | $228.36 | |||
| 9 | L/H PILOT CONTROLLER AUX (N) 332/F4887 | 1 | $743.23 | |||
| 10 | R/H PILOT CONTROLLER AUX (N) 332/F4890 | 1 | $1,599.39 | |||
| 11 | ADAPTOR 816/90899 | 1 | $26.16 | |||
| 11A | O-RING 2401/0505 | 1 | $2.54 | |||
| 12 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 13 | HOSE 1/4BSP 2000mm 649/51349 | 1 | $43.80 | |||
| 14 | HOSE 1/4BSP 1700mm 649/51974 | 1 | $206.53 | |||
| 17 | HOSE CONDUIT 550mm 331/40292 | 1 | $337.76 | |||
| 18 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 19 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 20 | LH CONTROL POD PAIR 346/00350 128/C0216 | 1 | $74.60 | |||
| 21 | RH CONTROL POD PAIR 346/00351 128/C0217 | 1 | $67.38 | |||
| 22 | TORX SCREW M4x16 826/11300 | 1 | $2.59 | |||
| 23 | GA L/H ARMREST 128/14665 | 1 | $662.10 | |||
| 24 | GA R/H ARMREST 128/14666 | 1 | $662.10 | |||
| 25 | HARNESS SEAT PCH 332/E7860 | 1 | $703.04 | |||
| 26 | Kit seat, upper co 333/D2698 | 1 | $4,517.46 | |||
| 27 | SCREW No4x3/8 SELFTAP 332/E0566 | 1 | $5.96 | |||
| 28 | VANE SENSOR 3 WAY DTM 332/C9990 | 1 | $53.85 | |||
| 29 | SELFTAP SCREW 10Gx3/8 332/D9048 | 1 | $0.30 | |||
| 30 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 32 | HANDLE SLIDER ADJUSTMENT 40/903124 40/910755 | 1 | $172.13 | |||
| 33 | CABLE TIE 100mm natural (R) 826/11294 | 1 | $0.34 | |||
| 34 | CABLE TIE 100mm blue (R) 826/11295 | 1 | $0.38 | |||
| 35 | CABLE TIE 100mm red 826/11296 | 1 | $0.15 | |||
| 36 | CABLE TIE 100mm green (R) 826/11297 | 1 | $0.50 | |||
| 37 | CABLE TIE 100mm orange (R) 826/11298 | 1 | $0.58 | |||
| 40 | SWITCH PANEL 12V 2POS DPC (Ref) 701/E8982 | 1 | $24.29 | |||
| 41 | ACTUATOR joystick ETCHED (Ref) 701/E8989 | 1 | $4.90 | |||
| 46 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 47 | SET SCREW M8x35 1321/3309D | 1 | $4.48 | |||
| 49 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 51 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 52 | CAP SCREW M8x20(KANBAN) 1391/3305Z | 1 | $2.94 | |||
| 53 | (W) (Pre-P)-CAP SCREW M8x30 1391/3308Z | 1 | $4.83 | |||
| 54 | ADAPTOR 332/F7789 | 1 | $51.49 | |||
| 55 | HOSE - 04 BSP LP 1700mm A 332/F7880 | 1 | $124.53 | |||
| A | '(W) (P) ABI SEAT 2 AIR Cloth pcHrlm+2au 128/P0040 | 1 | $9,086.54 | |||
Showing 1 to 46 of 46 parts
