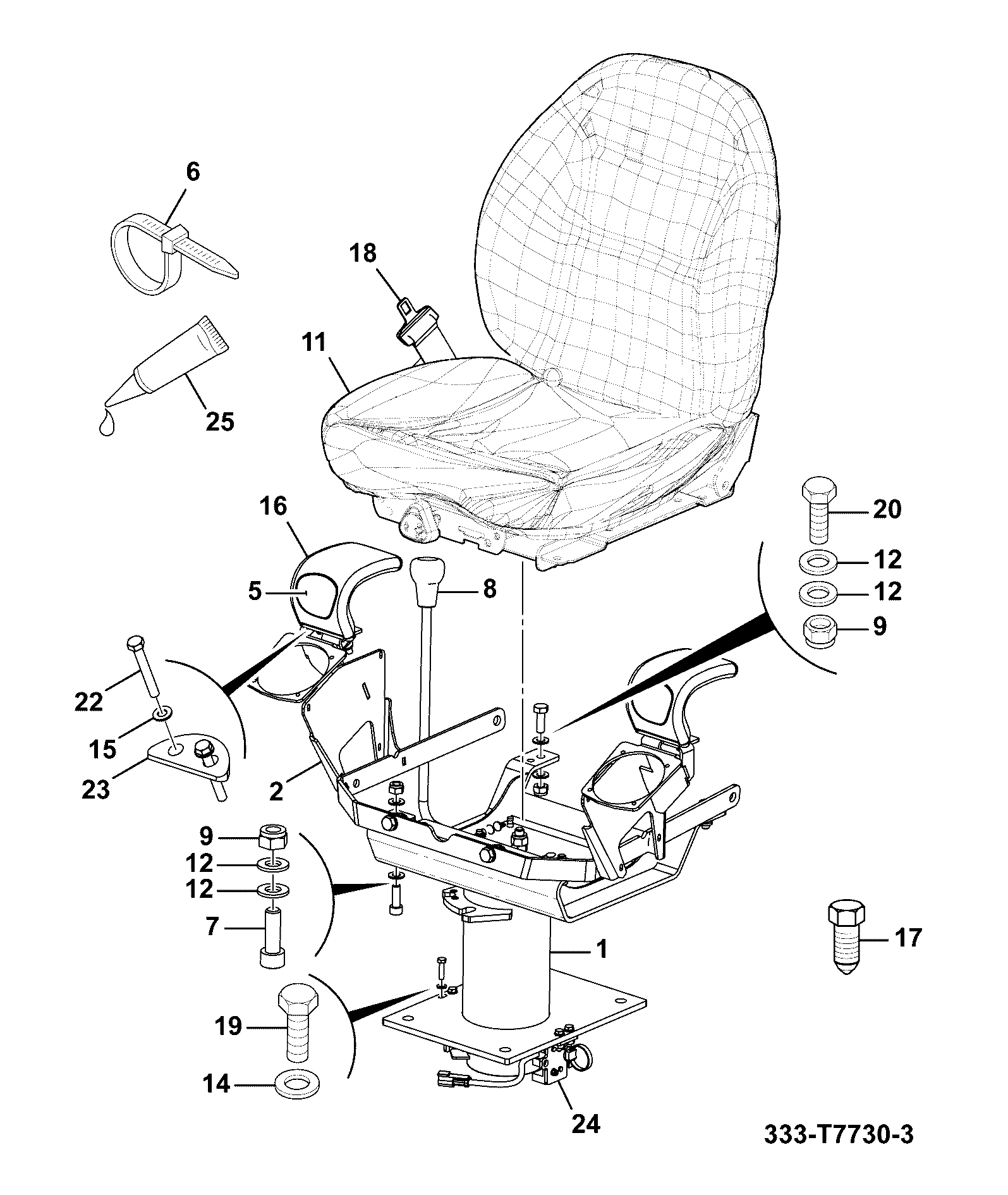

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Cushion back vinyl 40/910862 | 1 | $591.90 | ||||
| 1 | LOW SEAT BASE - ABI - MAN 333/T7473 | 1 | $1,465.75 | |||
| 2 | SERVO MOUNT W.A. 333/S2866 | 1 | $519.77 | |||
| 4 | VANE SENSOR 3 WAY DTM 332/C9990 | 1 | $53.85 | |||
| 5 | ARM REST PLUG 331/42187 | 1 | $15.43 | |||
| 6 | CABLE TIE 300mm 826/11017 | 1 | $2.08 | |||
| 7 | CAP SCREW M10x30 1391/3408 | 1 | $2.44 | |||
| 8 | KNOB - RED (P710-T) 331/49049 | 1 | $13.42 | |||
| 9 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 10 | NUT M_4 STD SELF LOCK 1370/9403D | 1 | $1.43 | |||
| 11 | (P) SEAT ABI-VINYL (P933) 401/W4216 | 1 | $1,875.68 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | PLAIN WASHER M4 (BR3) 1420/0004D | 1 | $0.58 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | POD ARM REST 331/42186 | 1 | $30.57 | |||
| 17 | SELF-TAP SCREW 826/00632 | 1 | $2.41 | |||
| 18 | SECURON SEATBELT 40/902200 335/E0373 | 1 | $208.34 | |||
| 19 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 21 | SET SCREW M4x16 (P564) (Reinstate) 1315/9403Z | 1 | $0.81 | |||
| 22 | (W) Screw 1315/0314D | 1 | $6.18 | |||
| 23 | SPACER ARM REST (P461) 332/C0748 | 1 | $28.83 | |||
| 24 | POSITION BLANK 333/T7243 | 1 | $14.34 | |||
| 25 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-B260-60-1-394197 B260-60-1 SEATS HIGH-SPEC VINYL
View Diagram -
DIAG-B260-50-1-394197 B260-50-1 SEATS LOW BASE,VINYL
View Diagram -
DIAG-B260-40-1-394197 B260-40-1 SEATS LOW BASE,CLOTH
View Diagram
