Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| MFAR DRIVERS SEAT - STD 332/W9193 | 1 | $4,568.46 | ||||
| 1 | Cushion backrest 40/910996 | 1 | $1,070.05 | |||
| 2 | Cushion seat 40/910997 | 1 | $740.88 | |||
| 3 | Rest head restrain 333/C1781 | 1 | $469.29 | |||
| 4 | Insert 333/D1184 | 1 | $44.19 | |||
| 5 | COVER -BACKREST LH 40/910228 40/910949 | 1 | $57.57 | |||
| 6 | Armrest left hand 40/910773 40/911013 | 1 | $302.51 | |||
| 7 | Frame 333/D1187 | 1 | $646.67 | |||
| 8 | Kit 332/H7532 | 1 | $210.97 | |||
| 9 | Bearing 333/D1189 | 1 | $46.15 | |||
| 10 | Panel 333/D6099 | 1 | $142.44 | |||
| 13 | Trigger 333/C8642 | 1 | $71.52 | |||
| 14 | Lever 40/910263 | 1 | $90.38 | |||
| 15 | Adjuster 333/D1190 | 1 | $237.92 | |||
| 17 | Bracket 40/910226 | 1 | $124.53 | |||
| 19 | Kit 333/C8637 | 1 | $108.28 | |||
| 20 | Kit 40/911000 | 1 | $208.68 | |||
| 21 | Actuator 333/D1191 | 1 | $86.78 | |||
| 22 | Switch Seat 333/C9175 | 1 | $665.34 | |||
| 23 | Seat 333/C8640 | 1 | $463.81 | |||
| 24 | Harness harness 333/D1192 | 1 | $354.17 | |||
| 25 | Kit-handle 40/911004 | 1 | $43.02 | |||
| 26 | Kit 333/D1197 | 1 | $375.87 | |||
| 27 | Kit 333/D1193 | 1 | $90.97 | |||
| 29 | Armrest 333/D1200 | 1 | $723.24 | |||
| 30 | Frame 333/D1201 333/D9281 | 1 | $2,029.50 | |||
| 31 | Kit - SCREWS ONLY 333/D1206 | 1 | $32.93 | |||
| 32 | Kit swivel 333/D1209 | 1 | $128.32 | |||
| 33 | Kit Depth/Angle Seat Small Parts 333/D1212 | 1 | $33.99 | |||
| 34 | Kit 333/D1216 | 1 | $54.62 | |||
| 36 | Switch 332/L9047 | 1 | $117.86 | |||
| 37 | Kit 333/D1218 | 1 | $77.54 | |||
| 38 | Kit 333/D1219 | 1 | $685.70 | |||
| 39 | HANDLE 40/910234 | 1 | $12.85 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

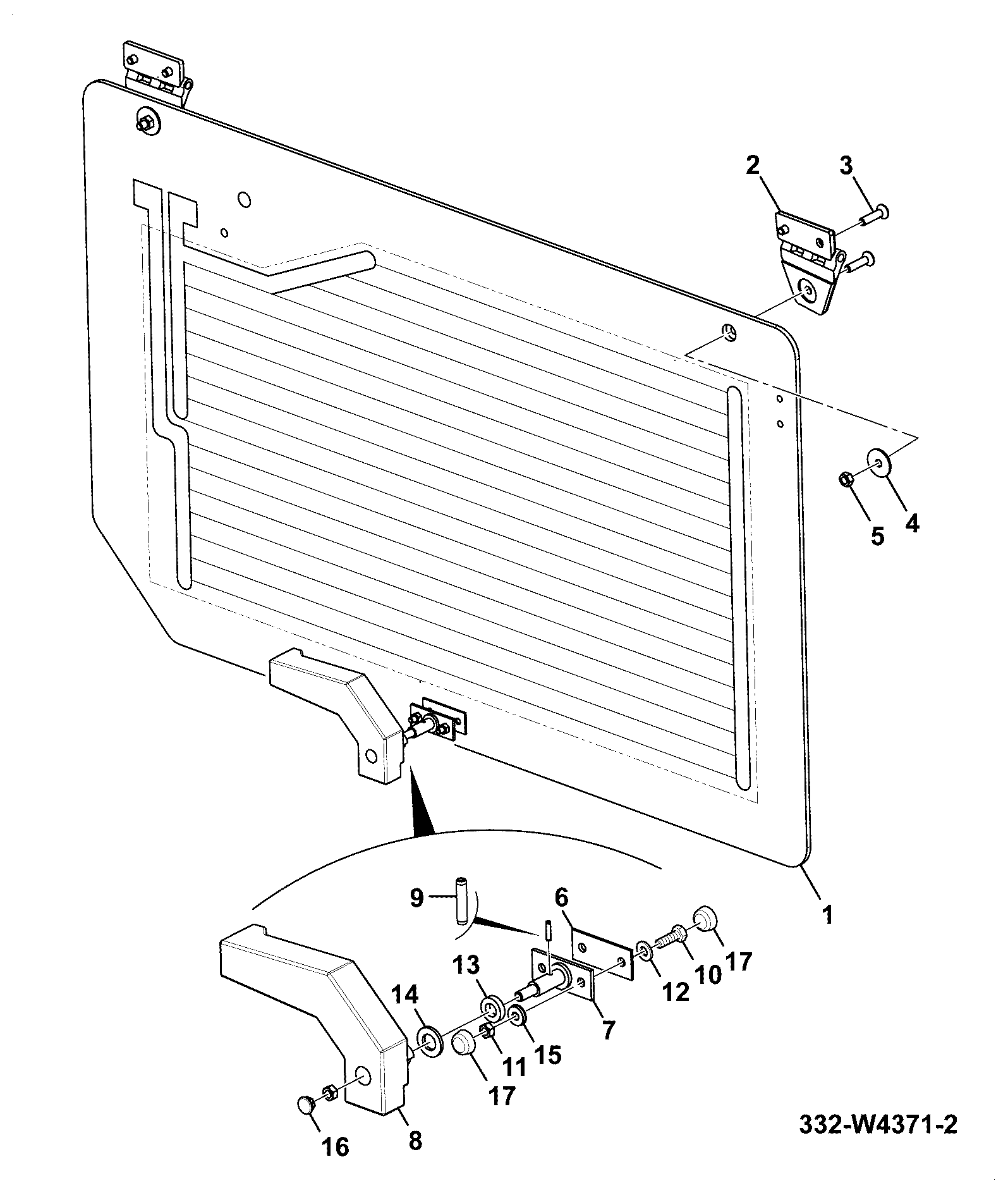

DIAG-B250-15-1-393603 B250-15-1 GLASS/FRAMES REAR SCREEN PARTS
View Diagram -
DIAG-B260-2-1-393603 B260-2-1 SEATS LOWER COMPONENTS 332/W9193
View Diagram -

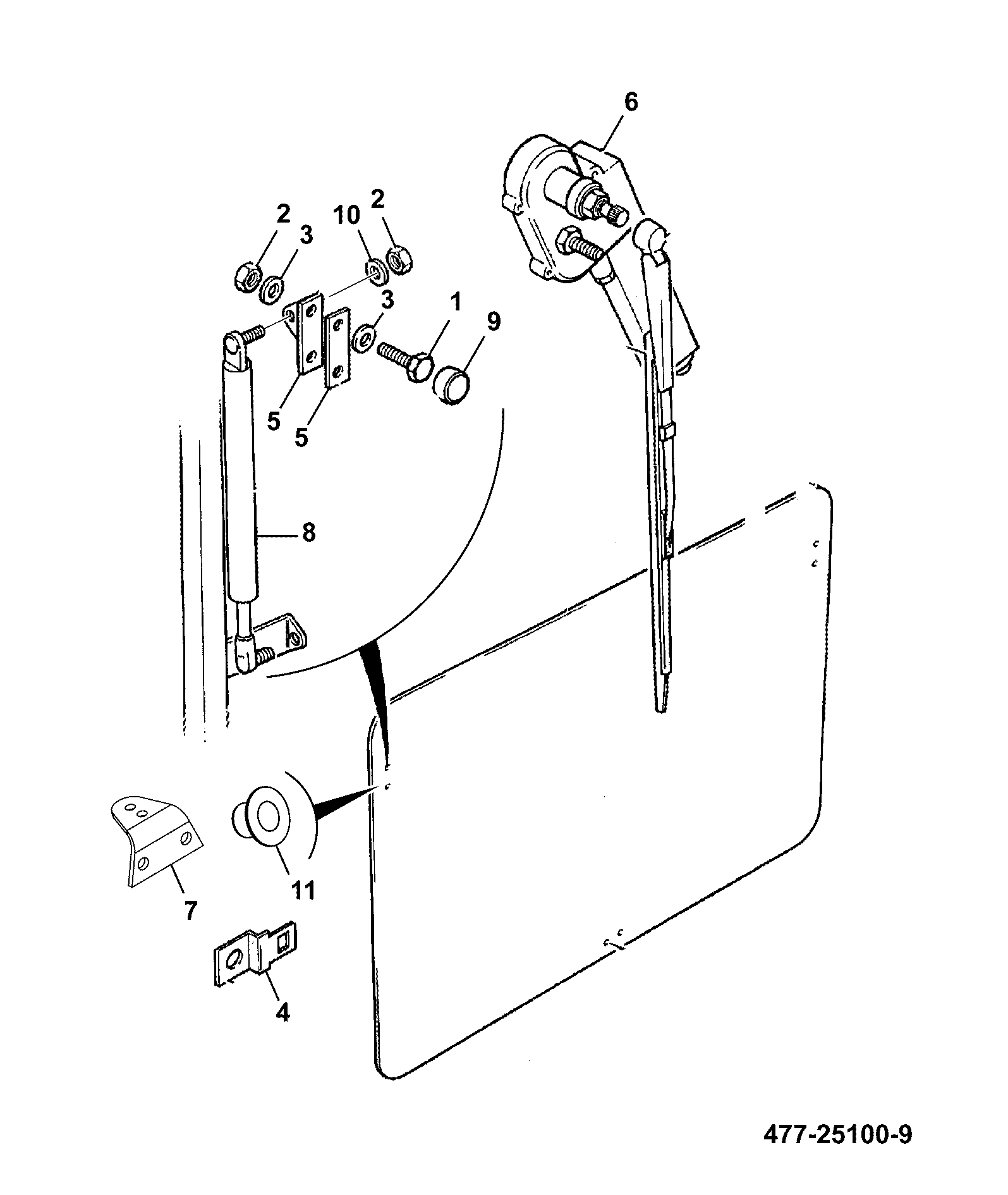

DIAG-B250-7-1-393603 B250-7-1 GLASS/FRAMES HEATED REAR
