Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA LOWER DOOR - (GLASS) (T4i) 333/D2708 | 1 | $2,572.08 | ||||
| 1 | GA LOWER DOOR RIVET NUT (T4i) 333/D2710 | 1 | $1,683.70 | |||
| 2 | P68 LOW DOOR GLSS NO LOGO~LDL P68 827/80300 | 1 | $450.30 | |||
| 3 | ABI HINGE (STD) (MIXED) 331/31247 401/M9995 | 1 | $24.76 | |||
| 4 | DOOR HANDLE - CORPORATE 332/A3729 | 1 | $141.04 | |||
| 5 | GASKET-STD DOOR HANDLE 2m 331/28105 333/A6182 | 1 | $7.72 | |||
| 7 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 10 | THREADLOCK 10ML 4101/1101 4101/0250 | 1 | $17.36 | |||
| 11 | ADH SEAL 1400MM LONG P68 Cut Length 926/46606 | 1 | $52.05 | |||
| 12 | ADHESIVE SEAL P68- Cut Length 600mm 926/46605 | 1 | $23.80 | |||
| 14 | DOOR LOCK COVER (P68) 331/45546 401/H9288 | 1 | $24.60 | |||
| 16 | WASHER NYLON M6 823/00516 | 1 | $5.17 | |||
| 19 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 25 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 26 | LATCH HANDLE - LH (41.5212.1202) 332/A5642 | 1 | $158.78 | |||
| 27 | LATCH COVER Up/ Lower Door (P68) (T4i) 333/D2843 | 1 | $27.66 | |||
| 28 | SHIM (T4i) 333/D3739 | 1 | $18.81 | |||
| 29 | ABI Latch Assembly 333/F3757 | 1 | $234.42 | |||
| 30 | FLANGE BUTTON HEAD M6X16 Lock Patch 333/L4878 | 1 | $3.21 | |||
| 31 | 3M111 ADHESION PROMOTER 8.45oz 4104/3703 | 1 | $430.13 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

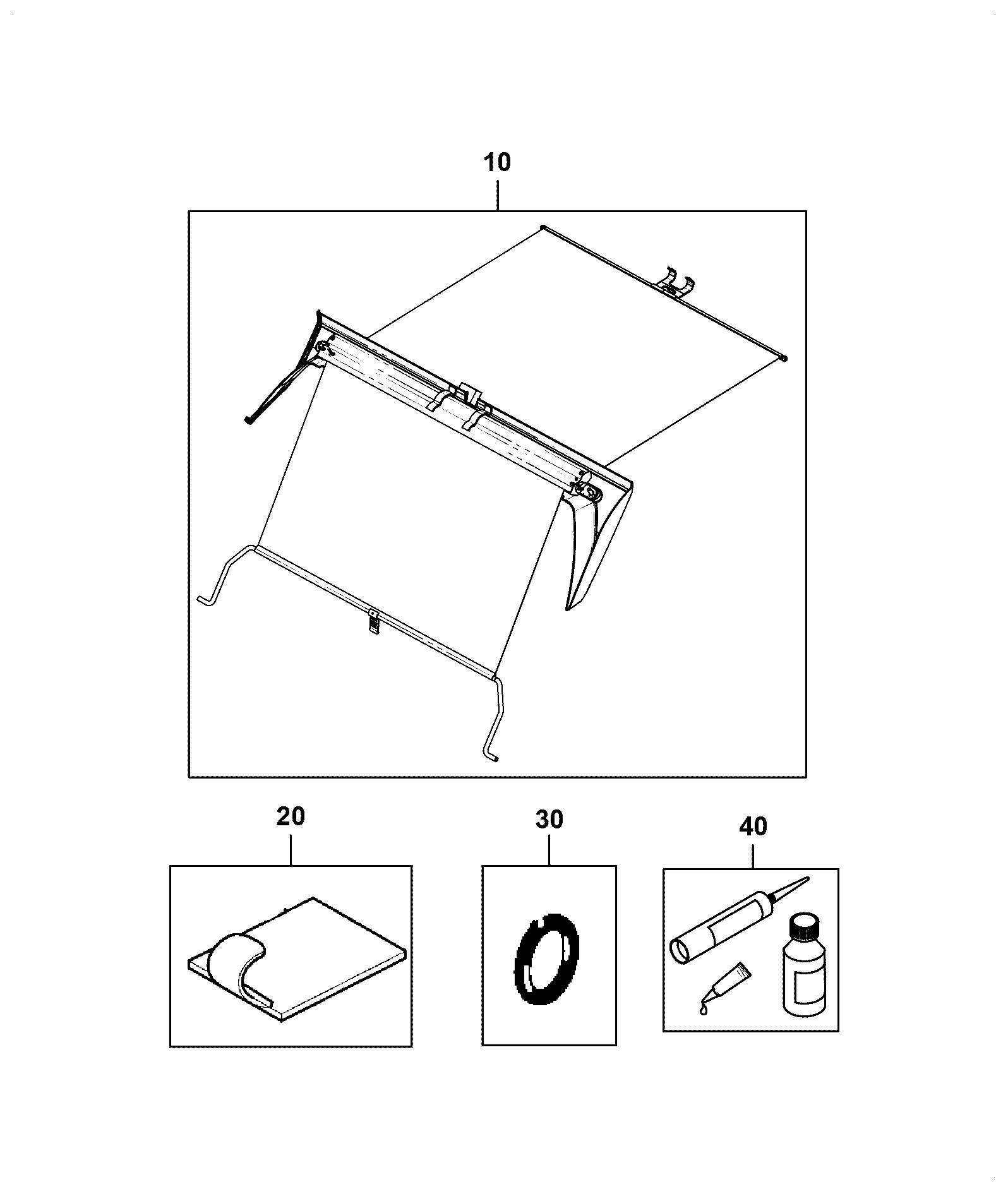

DIAG-B250-35-1-401693 B250-35-1 GLASS/FRAMES SUN BLIND TUV
View Diagram -
DIAG-B250-45-5-401693 B250-45-5 GLASS/FRAMES LOWER DOOR WITH GLASS
View Diagram -
DIAG-B250-50-1-401693 B250-50-1 GLASS/FRAMES GLASS GLAZING SEALANTS & ADHESIVES
View Diagram
