Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | MISC FRONT WINDOW UNPROTE (P513) 400/S8077 | 1 | $1,670.64 | |||
| 2 | MISC SIDE WINDOW LARGE OS (P513) 400/Y3201 | 1 | $1,235.84 | |||
| 3 | MISC GLASS RH OS (NG) 333/W5354 | 1 | $28.53 | |||
| 4 | GLASS ROOF LIGHT OS 335/A7234 | 1 | $487.44 | |||
| 5 | MISC GLASS LH (NG) 334/T1463 | 1 | $197.99 | |||
| 6 | MISC GLASS REAR OS (NG) 333/W5355 | 1 | $80.85 | |||
| 7 | Rubber SPACER BLOCK 926/15500 | 1 | $0.20 | |||
| 8 | Teroson VR10 4104/1203 4103/1204 | 1 | $52.14 | |||
| 11 | TEROSON PU 8910 CR310ML 4103/5200 4103/5242 | 1 | $30.29 | |||
| 12 | LABEL EMERGENCY EXIT (ALC Nato) 332/U9066 | 1 | $86.75 | |||
| 13 | MISC NYLON SPACER OS 334/T5458 | 1 | $14.13 | |||
| 14 | NUT M6 LOCK + WASHER 1370/0108D | 1 | $1.55 | |||
| 15 | BOLT FLANGED HEX M8 x 30 g8.8 1317/3308D | 1 | $2.15 | |||
| 16 | M5 NUT - STD FLANGE G8 (TLT) 1370/0008B | 1 | $1.70 | |||
| 17 | MISC NYLON WASHER (NG) 335/D9948 | 1 | $1.20 | |||
| 18 | MISC PIVOT BUSH OS 334/U4856 | 1 | $9.81 | |||
| 22 | SOCKET SCREW M5x15 826/01723 | 1 | $1.43 | |||
| 23 | CAP SCREW M6x20 SPECIAL 826/00902 | 1 | $1.25 | |||
| 24 | RUBBER SPACER BLOCK 331/44724 | 1 | $8.44 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-B250-30-1-397663 B250-30-1 GLASS/FRAMES WINDSCREEN FRONT AND PROTECTION ASSEMBLY
View Diagram -
DIAG-B240-20-5-397663 B240-20-5 DOORS HOLDBACK ASSEMBLY
View Diagram -

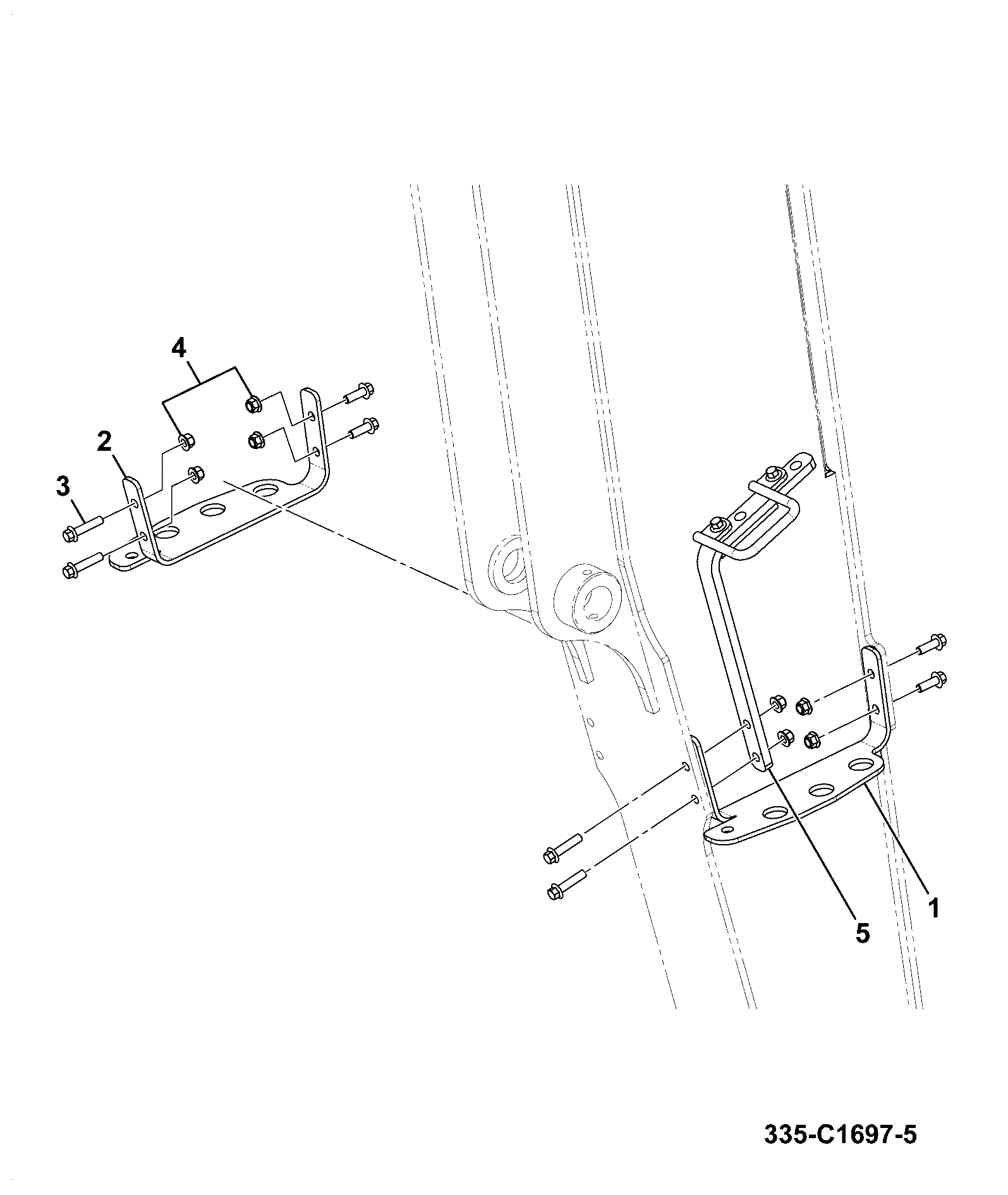

DIAG-B490-40-1-397663 B490-40-1 OTHER EXCAVATOR PARTS BRACKET AUXILIARY, DIPPER
View Diagram
