Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | MISC FRONT WINDOW ABI UNP (P836) 401/V6372 | 1 | $1,764.93 | |||
| 2 | MISC SIDE WINDOW OS (P511) 400/J3079 | 1 | $1,168.98 | |||
| 3 | MISC LH SIDE GLASS OS (P511) 400/D0357 | 1 | $166.30 | |||
| 4 | MISC ROOF GLASS OS (P511) 400/F0742 | 1 | $373.81 | |||
| 5 | MISC REAR GLASS OS (P511) 400/D1102 | 1 | $224.66 | |||
| 6 | DECAL: EMERGENCY EXIT - H 817/19457 402/T6290 | 1 | $1.49 | |||
| 7 | Rubber SPACER BLOCK 926/15500 | 1 | $0.20 | |||
| 8 | TEROSON PU 8545 UV BO500ML 4104/4200 4104/4250 | 1 | $125.47 | |||
| 10 | TEROSON PU 8910 CR310ML 4103/5200 4103/5242 | 1 | $30.29 | |||
| 11 | SCREW M6x25 BUTTON SOCKET 826/01768 | 1 | $2.11 | |||
| 13 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 14 | NUT M6 LOCK + WASHER 1370/0108D | 1 | $1.55 | |||
| 15 | M5 NUT - STD FLANGE G8 (TLT) 1370/0008B | 1 | $1.70 | |||
| 16 | MISC NYLON WASHER (NG) 335/D9948 | 1 | $1.20 | |||
| 17 | MISC PIVOT BUSH OS (P512B) 335/G6628 | 1 | $3.06 | |||
| 18 | BOLT FLANGED HEX M8 x 30 g8.8 1317/3308D | 1 | $2.15 | |||
| 19 | MFI WINDOW SUPPORT 331/25735 | 1 | $0.44 | |||
| 20 | M8 NUT - STD FLANGE G8 1370/0208B | 1 | $1.94 | |||
| 21 | BUMP STOP (P512B) 335/G6705 | 1 | $13.16 | |||
| 24 | SOCKET SCREW M5x15 826/01723 | 1 | $1.43 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

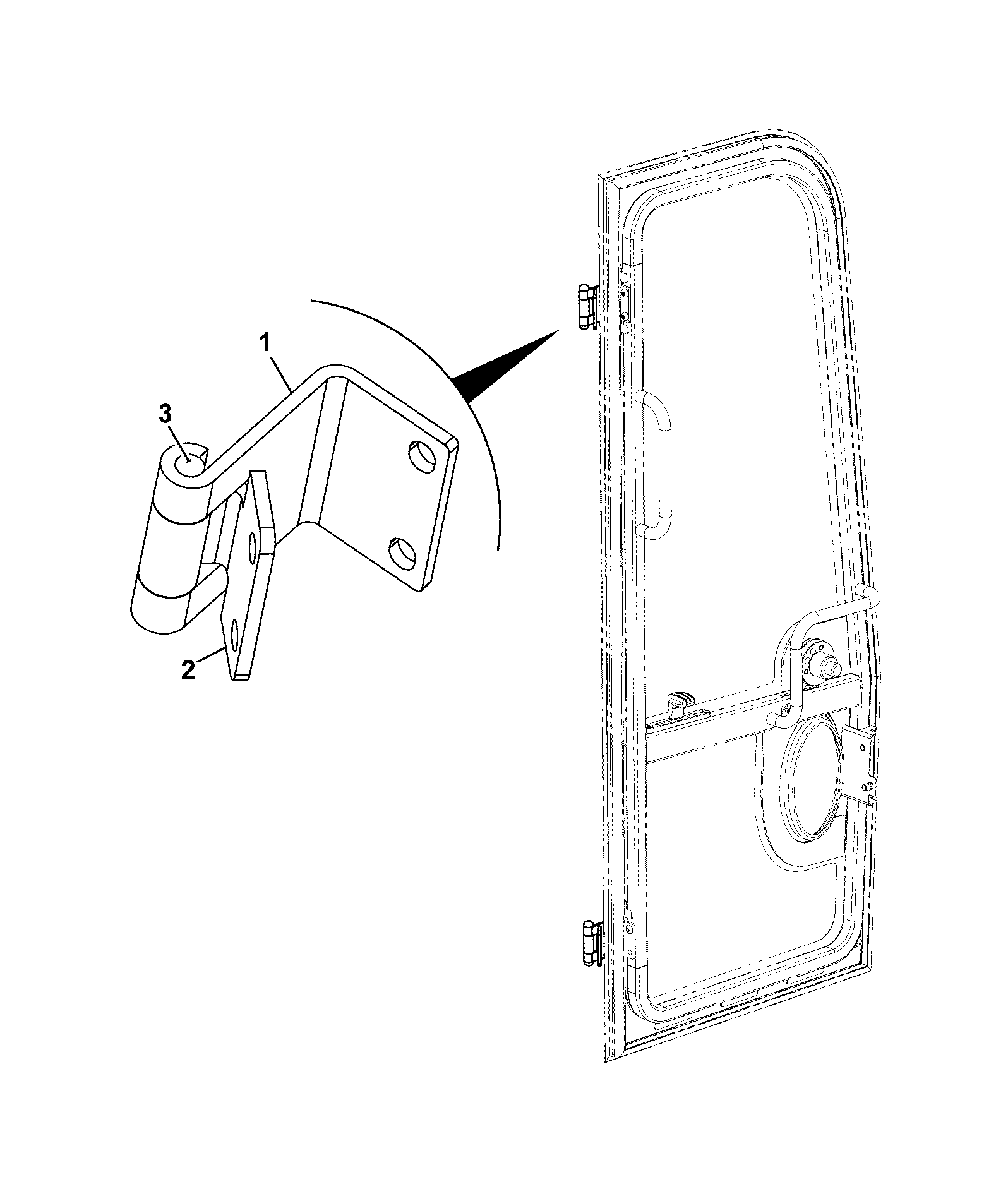

DIAG-B240-90-1-397469 B240-90-1 DOORS HINGE GA
View Diagram -
DIAG-B250-10-5-397469 B250-10-5 GLASS/FRAMES ASSEMBLY GLASSPACK, UNPROTECTED
View Diagram -
DIAG-B240-75-5-397469 B240-75-5 DOORS ASSEMBLY LOCKBACK, DOOR GLAZING
View Diagram
