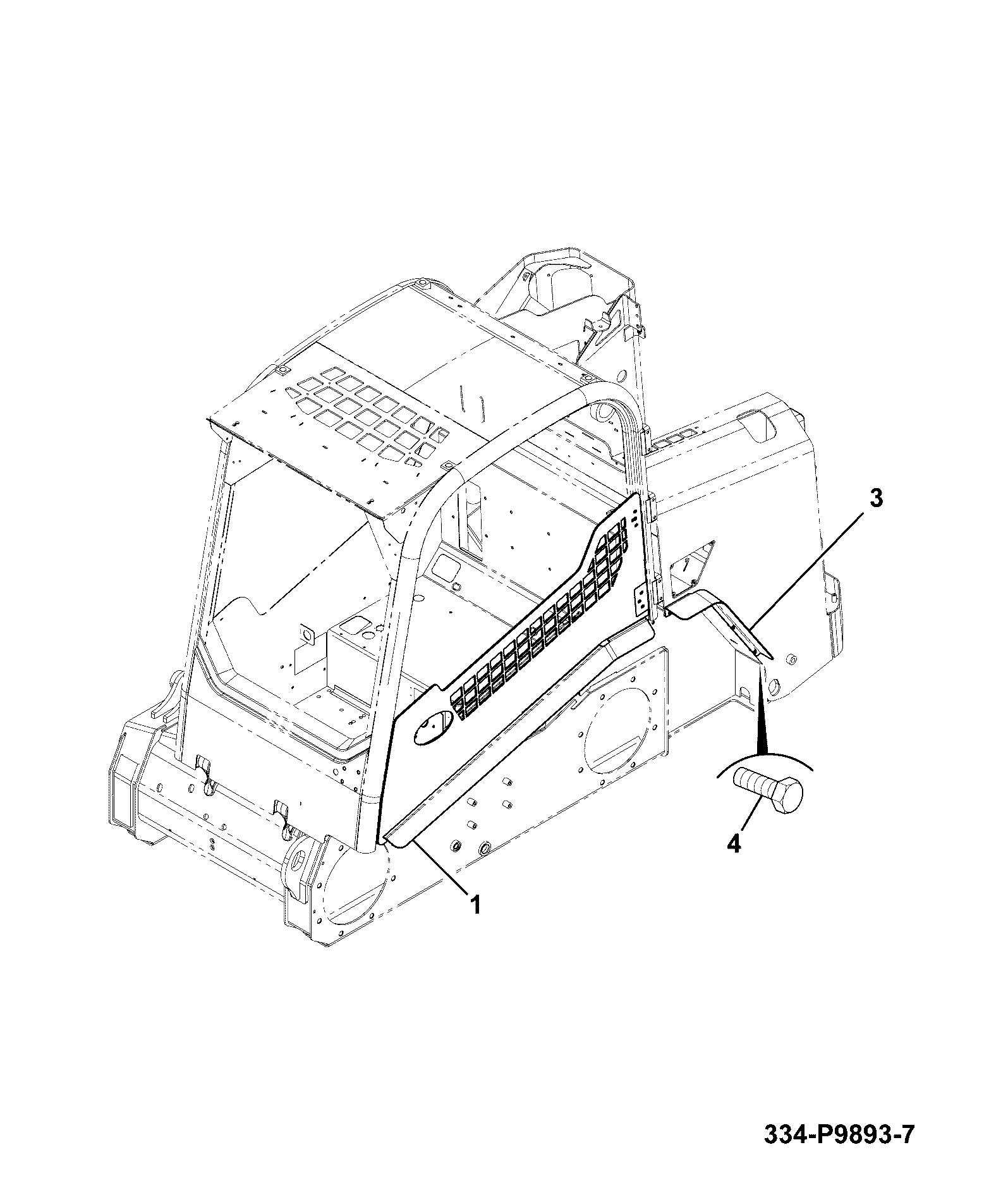

B240-50-5 DOORS FENDER ASSEMBLY,CANOPY,TRACKED Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	DOOR CNP STD TRKD BLK PNT 335/B8183	1	AVAILABLE TO ORDER	$953.76	Quantity
3	FENDER JCB YELLOW 335/B0102	1	AVAILABLE TO ORDER	$66.63	Quantity
4	SCREW 826/01141	1	AVAILABLE TO ORDER	$2.12	Quantity

Showing 1 to 3 of 3 parts

DIAG-B240-50-10-395244 B240-50-10 DOORS FENDER ASSEMBLY,CANOPY,TRACKED
View Diagram
DIAG-B210-115-5-395244 B210-115-5 OPERATOR ENCLOSURE CAB FITTINGS, ASSEMBLY, TRACKED, TIER 4
View Diagram

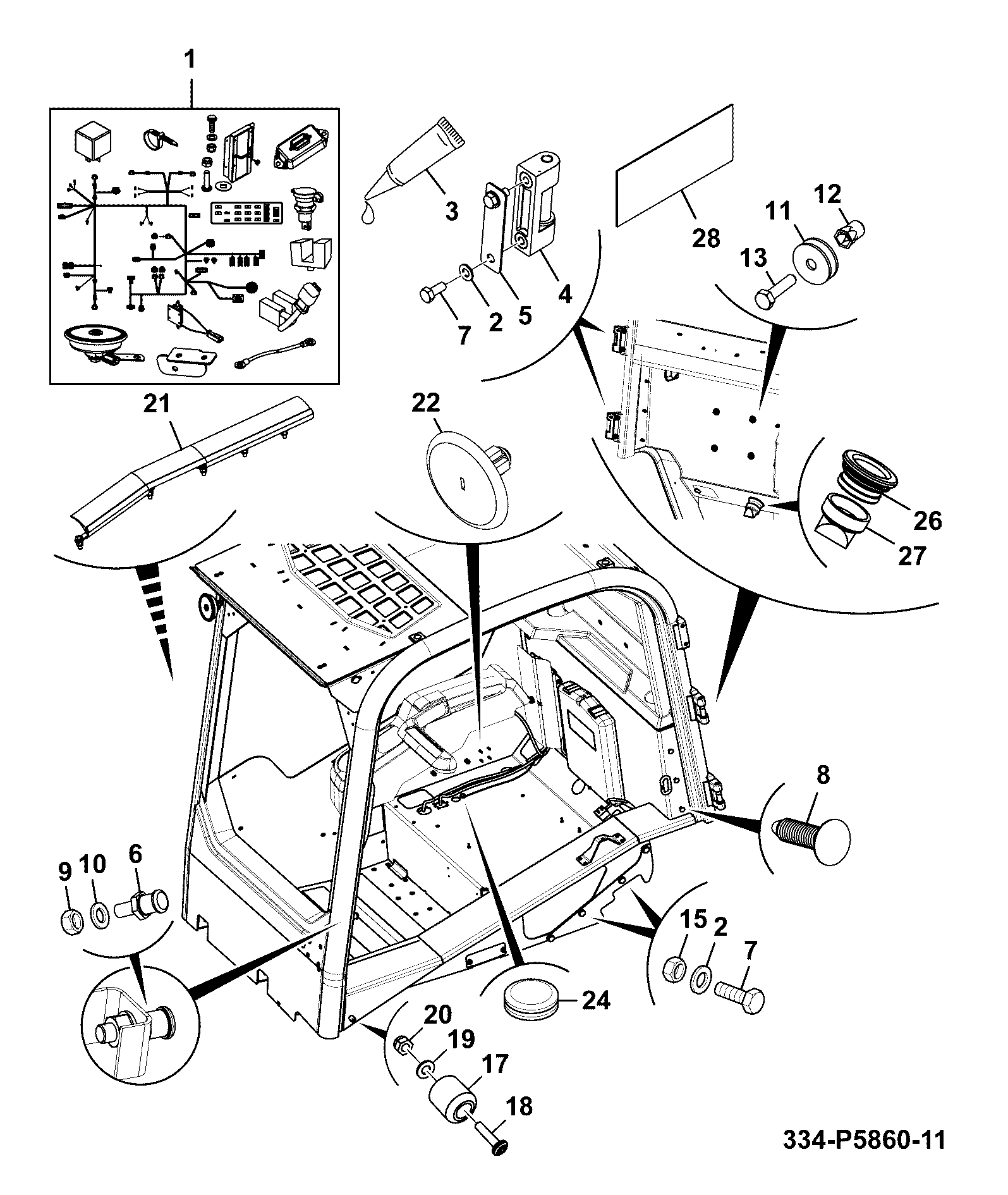

DIAG-B210-105-5-395244 B210-105-5 OPERATOR ENCLOSURE CANOPY FITTINGS, ASSEMBLY, TRACKED, TIER 4
