Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA DOOR LH (P375 MWLS) 335/G9970 | 1 | $3,101.18 | ||||
| 1 | P/S DOOR FRAME P375 402/Y1134 | 1 | $1,035.68 | |||
| 2 | GA SLIDING DOOR WINDOW (P375 MWLS) 335/G9989 | 1 | $1,436.97 | |||
| 4 | PURCHASED HINGE BLOCK ASSEMBLY 333/S8877 | 1 | $112.50 | |||
| 5 | GASKET - SPACER (P375) 335/C6467 | 1 | $25.20 | |||
| 6 | BOLT FLANGED HEX M8 x 30 (P369 WLS) 1317/3308B | 1 | $3.40 | |||
| 7 | WINDOW GASKET X 1000 813/10233 | 1 | $10.05 | |||
| 8 | WINDOW GASKET ROUND 813/10169 | 1 | $2.21 | |||
| 9 | HINGE CAP X300 331/23194 | 1 | $5.61 | |||
| 10 | GASKET-3CXC DOOR HANDLE 5 334/G3903 | 1 | $7.69 | |||
| 11 | DOOR HANDLE - CORPORATE (58.4710.0035) 333/W3501 | 1 | $134.00 | |||
| 12 | LATCH DOUBLE MOTOR (P375) 400/A7898 | 1 | $76.36 | |||
| 13 | M4 LOCK NUT (P369) 400/S4255 | 1 | $0.21 | |||
| 14 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 15 | DOOR MOULDING-LWR-MWLS (P375) 335/G8861 | 1 | $42.46 | |||
| 16 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 18 | FLANGE LOCK NUT M8 1370/0209B | 1 | $1.97 | |||
| 19 | ROD DOOR LATCH-MWLS (P375) 335/H0418 | 1 | $34.78 | |||
| 20 | DOOR MOULDING-UPR-MWLS (P375) 335/G8864 | 1 | $42.46 | |||
| 21 | SQUEEZE HANDLE ( 41.5201.1802 ) 333/W4044 | 1 | $35.21 | |||
| 22 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 24 | DOOR HANDLE (P369) 400/H7133 | 1 | $10.95 | |||
| 25 | GASKET - HINGE (P369 WLS) 334/V5493 | 1 | $18.57 | |||
| 26 | RETAINING WASHER 826/00711 | 1 | $0.45 | |||
| 27 | P375 DOOR SEAL 400/B3378 402/E7540 | 1 | $97.98 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-B240-1-1-404488 B240-1-1 DOORS ABI TWIN SKIN HVAC DOOR
View Diagram -
DIAG-B240-5-5-404488 B240-5-5 DOORS ASSEMBLY RIGHT HAND SIDE
View Diagram -

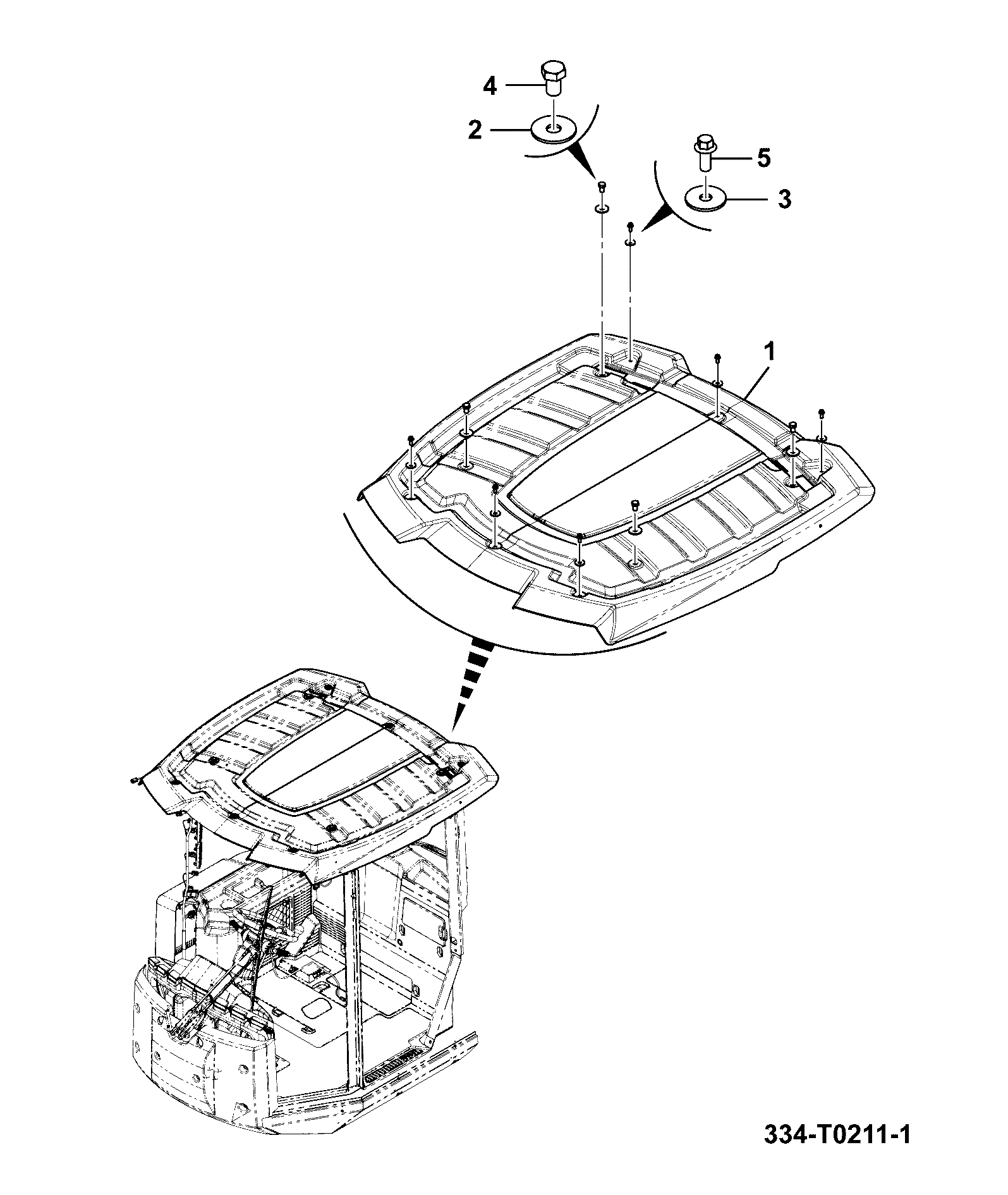

DIAG-B230-1-1-404488 B230-1-1 ROOF INSTALLATION MOULDING CS
View Diagram
