Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | '(P) LOWER DOOR GLAZING, GREEN (P414&P56 333/E0252 | 1 | $294.04 | |||
| 3 | DOOR HANDLE RECESS MOULDING P414 332/G0190 | 1 | $39.10 | |||
| 4 | DOOR HANDLE (SLIMLINE) 332/F5989 | 1 | $255.40 | |||
| 4A | Key Ignition Switch( 44.0652.0101) 701/45501 | 1 | $8.51 | |||
| 5 | GASKET-STD DOOR HANDLE 2m 331/28105 333/A6182 | 1 | $7.72 | |||
| 6 | RIVET NUT (BR3) 826/01101 | 1 | $3.76 | |||
| 7 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 8 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 9 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 10 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 11 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | LATCH HANDLE - LH ( 41.5212.1201) 332/F8217 | 1 | $245.51 | |||
| 15 | ABI HINGE (P561/P414) (MIXED) 332/G8263 401/M9996 | 1 | $25.80 | |||
| 16 | TRIMMED LATCH COVER MLDG 332/F8461 | 1 | $170.62 | |||
| 17 | Rubber SPACER BLOCK 926/15500 | 1 | $0.20 | |||
| 18 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 19 | HINGE RECESS MOULDING 332/F6036 | 1 | $7.78 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

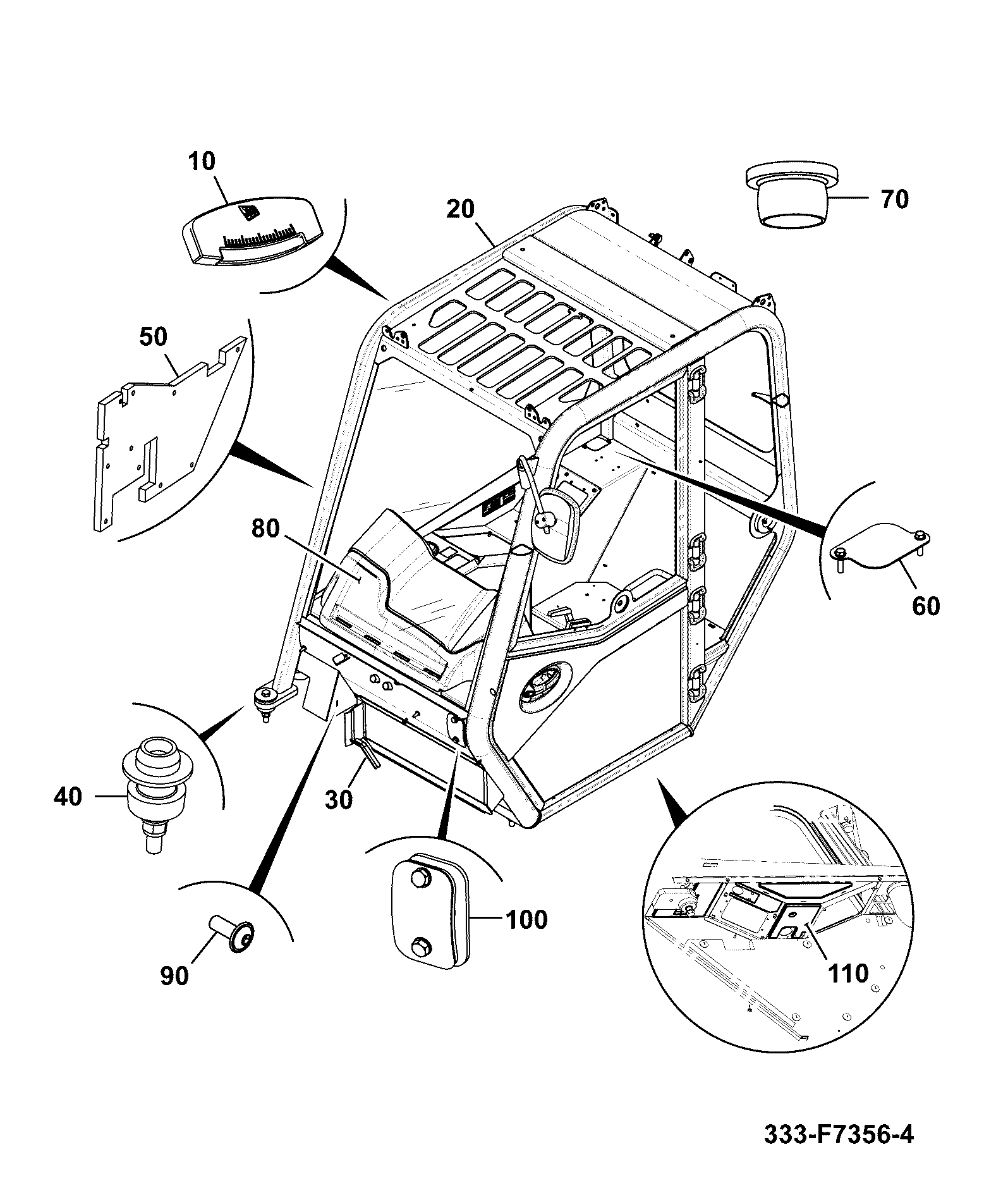

DIAG-B210-20-1-400649 B210-20-1 OPERATOR ENCLOSURE ABI CAB SLD
View Diagram -
DIAG-B201-60-1-400649 B201-60-1 OPERATOR ENCLOSURE SALES SPECIALS WITH STEEL LOWER DOOR
View Diagram -
DIAG-B250-75-1-400649 B250-75-1 GLASS/FRAMES INSTALLATION UPPER WINDOW
View Diagram
