B240-30-1 DOORS CAB Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	P/S CAB T4i 406 P842 400/X6645 402/L7755	1	AVAILABLE TO ORDER	$8,776.00	Quantity
3	GA STANDARD DOOR (P842) 400/W4840	1	AVAILABLE TO ORDER	$1,675.59	Quantity
4	G/A R/H WINDOW 406 CAB 274/60366	1	AVAILABLE TO ORDER	$1,421.94	Quantity
5	GA HVAC DOOR YELLOW (P842) 400/W5942	1	AVAILABLE TO ORDER	$1,058.22	Quantity

Showing 1 to 4 of 4 parts

DIAG-B230-20-1-404387 B230-20-1 ROOF ROOF MOULDING CWLS AIRCO
View Diagram
DIAG-B230-15-1-404387 B230-15-1 ROOF ROOF MOULDING ASSEMBLY , AIRCON
View Diagram

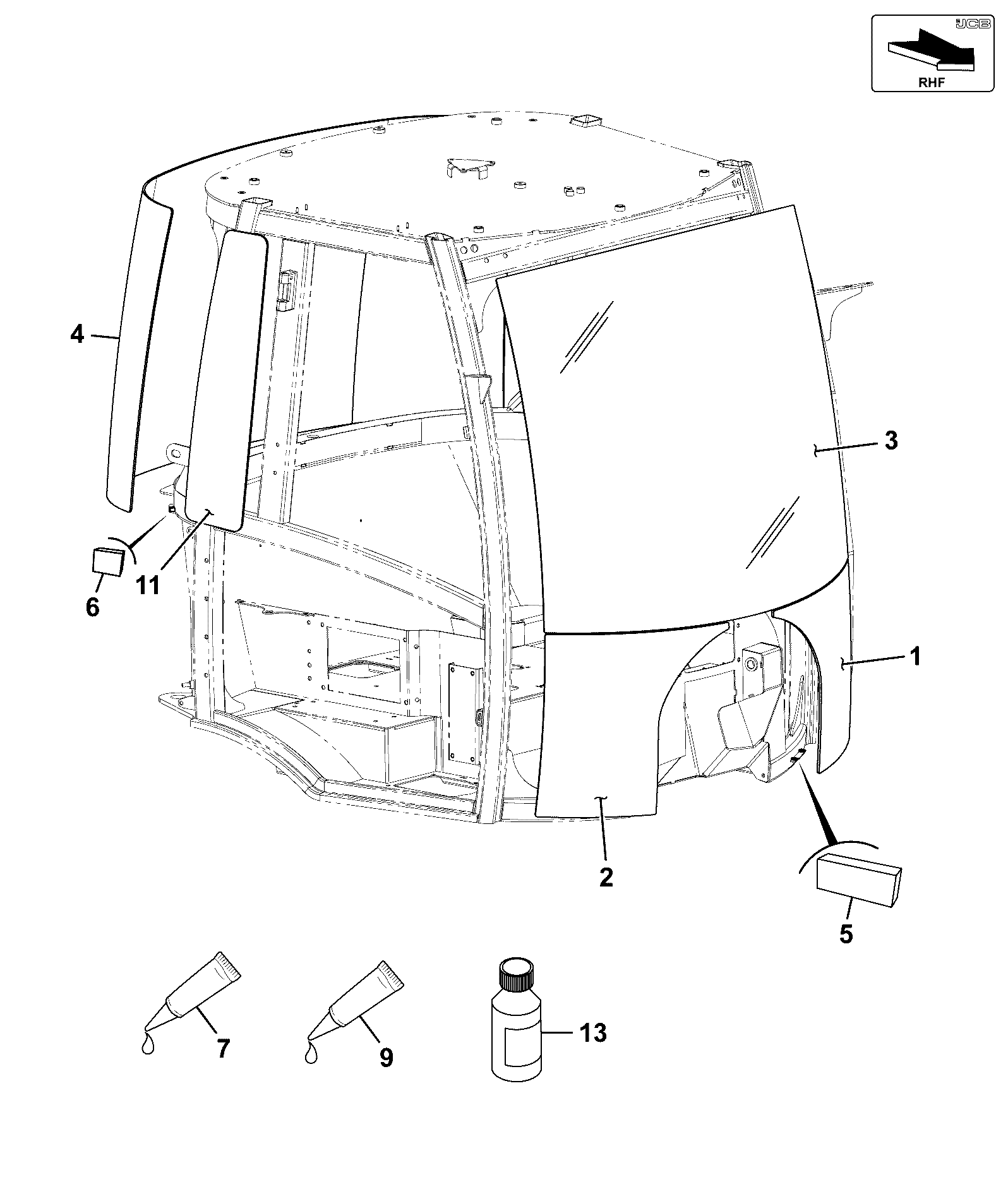

DIAG-B250-1-1-404387 B250-1-1 GLASS/FRAMES CAB GLASS PACK ASSEMBLY
