Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SLIDING DOOR GA 406 NO LOGO 274/60371 | 1 | $4,611.71 | ||||
| 1 | WA DOOR FRAME - LHS (406) 335/G3448 | 1 | $1,297.31 | |||
| 2 | DOOR HANDLE - CORPORATE 332/A3729 | 1 | $141.04 | |||
| 3 | WA DOOR HINGE UPPER (406) 335/G3458 | 1 | $197.74 | |||
| 4 | LH DOOR LATCH COVER 331/43042 | 1 | $57.64 | |||
| 5 | GASKET-3CXC DOOR HANDLE 5 334/G3903 | 1 | $7.69 | |||
| 6 | DOOR HINGE LOWER WA 406 335/G3460 335/09925 | 1 | $282.11 | |||
| 7 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 8 | LATCH-DLP ( 61.5200.0282 ) 334/E7579 | 1 | $165.80 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 11 | SOCKET SCREW COUNTERSUNK 334/U9692 | 1 | $16.93 | |||
| 12 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 13 | SLIDING DOOR ASSY 406 NO LOGO~WLS 406 927/20069 | 1 | $1,663.14 | |||
| 14 | DOOR SEAL 406- Vulcanised ring 4078mm 331/47899 | 1 | $222.38 | |||
| 15 | NUT CAP M8 335/E1356 | 1 | $0.27 | |||
| 16 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 17 | ABI HINGE (STD) (MIXED) 331/31247 401/M9995 | 1 | $24.76 | |||
| 18 | DOOR PACKER 331/52759 | 1 | $220.12 | |||
| 19 | BLACK WASHER M8 823/00529 | 1 | $3.11 | |||
| 20 | DOOR GASKET (P366/P842) 401/H5578 | 1 | $7.92 | |||
| 22 | WASHER 20 OD x 6.5 ID (MINI/TLT) 332/H1049 | 1 | $0.95 | |||
| 23 | TEROSON PU 8545 UV BO500ML 4104/4200 4104/4250 | 1 | $125.47 | |||
| 24 | TEROSON PU 8910 CR310ML 4103/5200 4103/5242 | 1 | $30.29 | |||
| 32 | H PLATE (P376/P384) 400/K2969 | 1 | $7.61 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-

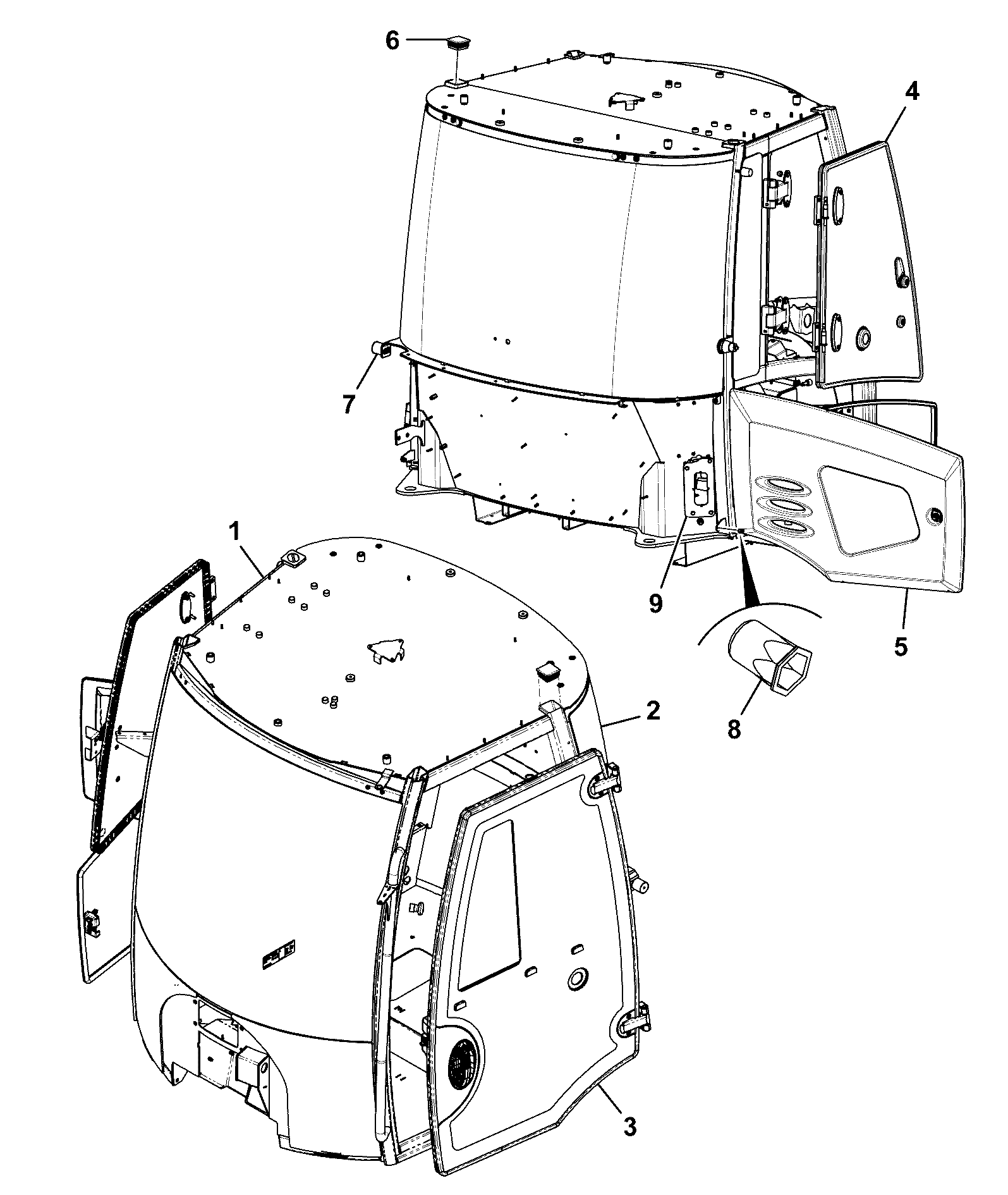

DIAG-B210-25-10-404416 B210-25-10 OPERATOR ENCLOSURE CAB ABI AJAR ONLY STANDARD
View Diagram -
DIAG-B210-20-10-404416 B210-20-10 OPERATOR ENCLOSURE CAB ABI FULLY OPEN RH WINDOW
View Diagram -

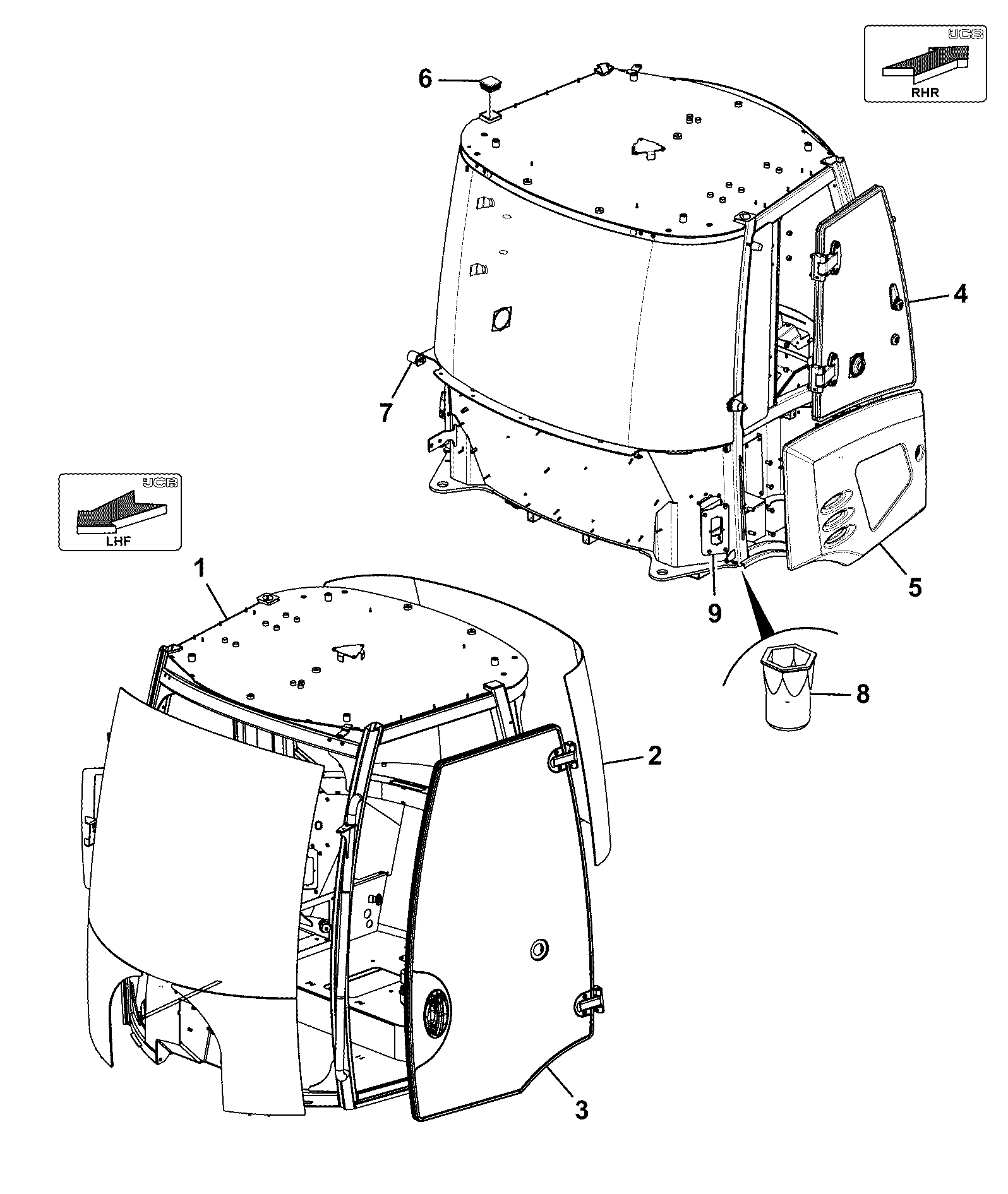

DIAG-B210-1-10-404416 B210-1-10 OPERATOR ENCLOSURE CAB ABI - SLIDING DOOR ASSEMBLY
View Diagram
