Scroll to zoom Click a part # to view details

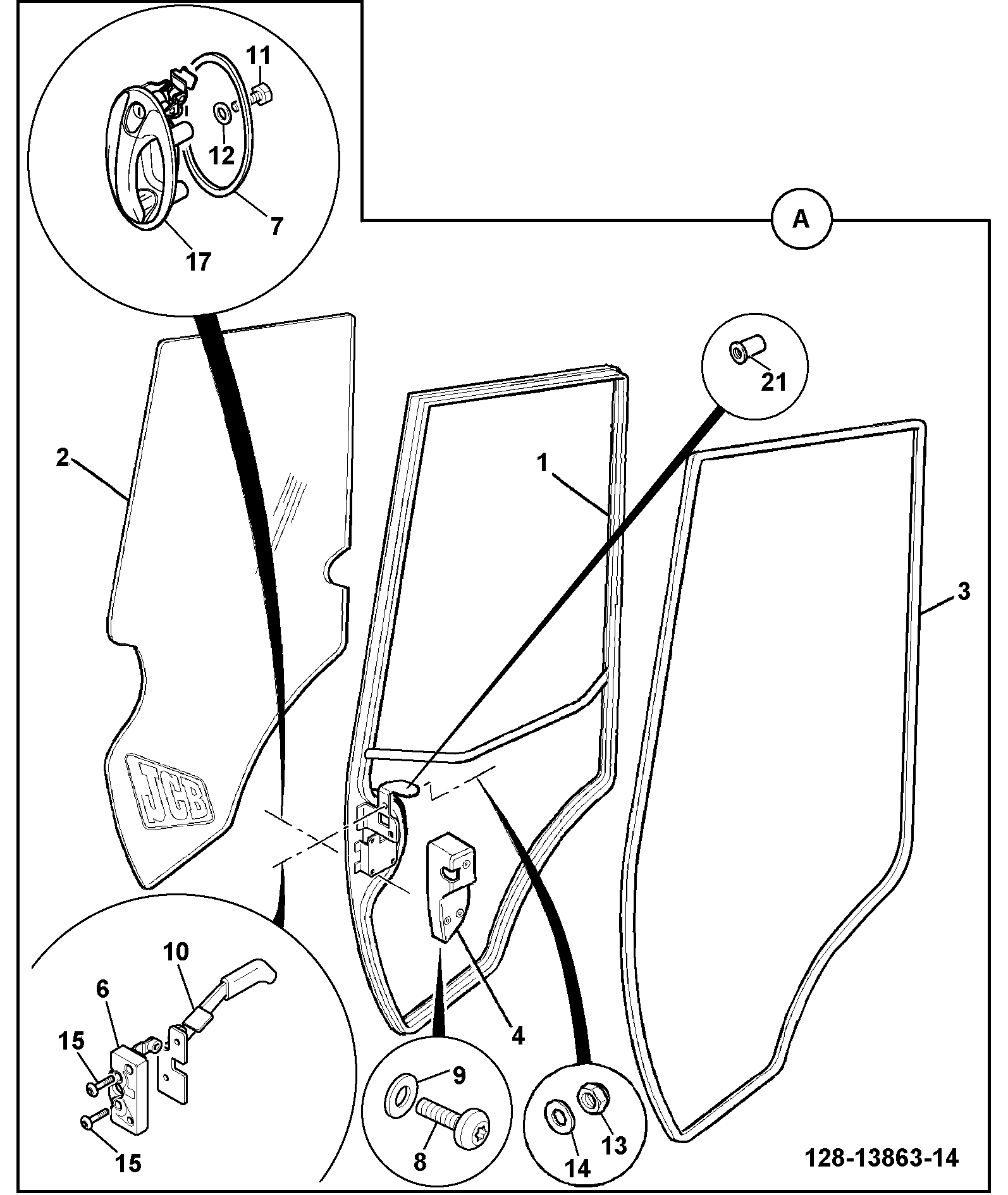

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | GLASS L/H DOOR NO LOGO BHL (P392/P762) 827/80361 | 1 | $535.63 | |||
| 3 | '(P) RUBBER DOOR SEAL- Vulcanised ring 4 331/23358 | 1 | $135.99 | |||
| 4 | LH DOOR LOCK COVER 331/44207 331/59163 | 1 | $40.34 | |||
| 6 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 7 | DOOR HANDLE GASKET( 05.0963.0100) 813/10185 | 1 | $10.86 | |||
| 8 | TORX SCREW M6X16 826/10887 | 1 | $1.07 | |||
| 9 | WASHER NYLON M6 823/00516 | 1 | $5.17 | |||
| 10 | LATCH HANDLE - LH (41.5212.1202) 332/A5642 | 1 | $158.78 | |||
| 11 | SET-SCREW M_6 L-_12mm 1315/0201D | 1 | $0.68 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 15 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 17 | CORPORATE DOOR HANDLE 332/A3731 | 1 | $201.69 | |||
| 21 | RIVET NUT M6(KANBAN) 826/01099 | 1 | $3.11 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-B240-2-50-394860 B240-2-50 DOORS CAB RIGHT HAND SIDE, 70TH ANNIVERSARY MACHINE
View Diagram -
DIAG-B210-3-50-394860 B210-3-50 OPERATOR ENCLOSURE CAB ABI, AIR CONDITIONING COMPATIBLE, T4i, 70TH ANNIVERSARY MACHINE
View Diagram -
DIAG-A100-253-50-394860 A100-253-50 SHOVEL INSTALLATION ASSEMBLIES FORKS CLAM SHOVEL, 1.2M3 & 1.3M3, 70TH ANNIVERSARY MACHINE
View Diagram
