Scroll to zoom Click a part # to view details

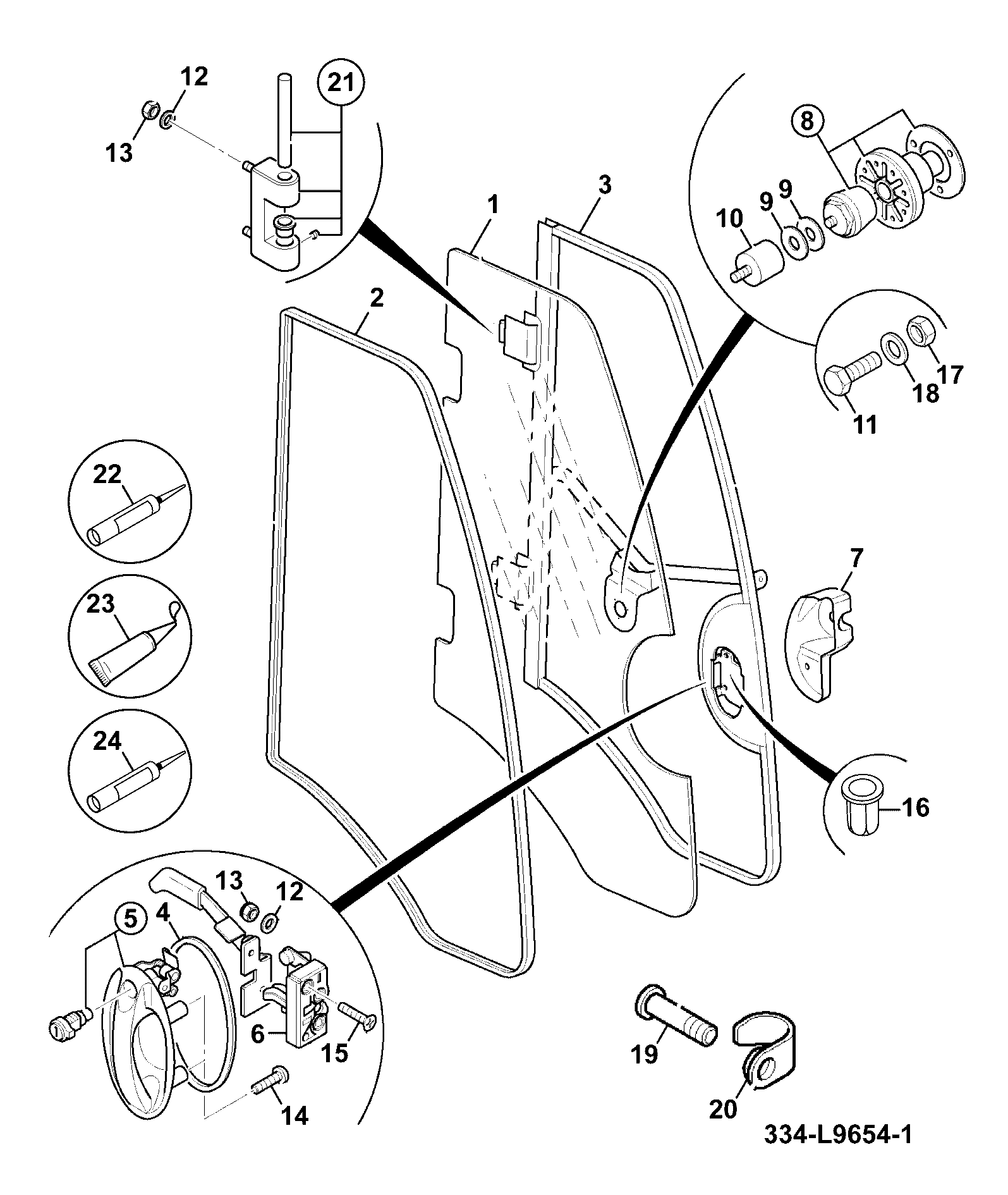

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (P) GA LH DOOR TM320 267/85469 334/L9652 | 1 | $3,749.69 | ||||
| 1 | (P) GLASS - LH DOOR TM320 827/80460 334/L9653 | 1 | $732.53 | |||
| 2 | (W) WEATHERSEAL - DOOR EDGE 331/64718 | 1 | $89.96 | |||
| 3 | (W) (P) PAINTED DOOR L/H TM430 (N) 332/A1596 | 1 | $3,923.03 | |||
| 4 | GASKET-STD DOOR HANDLE 2m 331/28105 333/A6182 | 1 | $7.72 | |||
| 5 | DOOR HANDLE - CORPORATE 332/A3729 | 1 | $141.04 | |||
| 6 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 7 | (W) (P) DOOR LATCH COVER - LH 331/64686 | 1 | $120.91 | |||
| 8 | (W) (P) HOLDBACK - WINDOW 331/35219 | 1 | $189.47 | |||
| 9 | WINDOW GASKET X 1000 813/10233 | 1 | $10.05 | |||
| 10 | CYLINDRICAL BOBBIN 331/55840 | 1 | $54.97 | |||
| 11 | M6x30 BUTTON HEAD 480hr B 334/L6709 | 1 | $1.36 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | FLANGE BUTTON HEAD M6X16 Lock Patch 333/L4878 | 1 | $3.21 | |||
| 15 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 16 | RIVET NUT (BR3) 826/01101 | 1 | $3.76 | |||
| 17 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 20 | LATCH HANDLE - LH (41.5212.1202) 332/A5642 | 1 | $158.78 | |||
| 21 | ABI HINGE (STD) (MIXED) 331/31247 401/M9995 | 1 | $24.76 | |||
| 22 | SIKAFLEX 227 BLACK (FRAME SEALANT) 4102/2300 | 1 | $48.12 | |||
| 23 | PU ADHESIVE 4103/2200 4103/2209 | 1 | $48.61 | |||
| 24 | Adhesive Kit 993/55700 993/55701 | 1 | $332.68 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-B240-2-1-403050 B240-2-1 DOORS RIGHT SIDE
View Diagram -

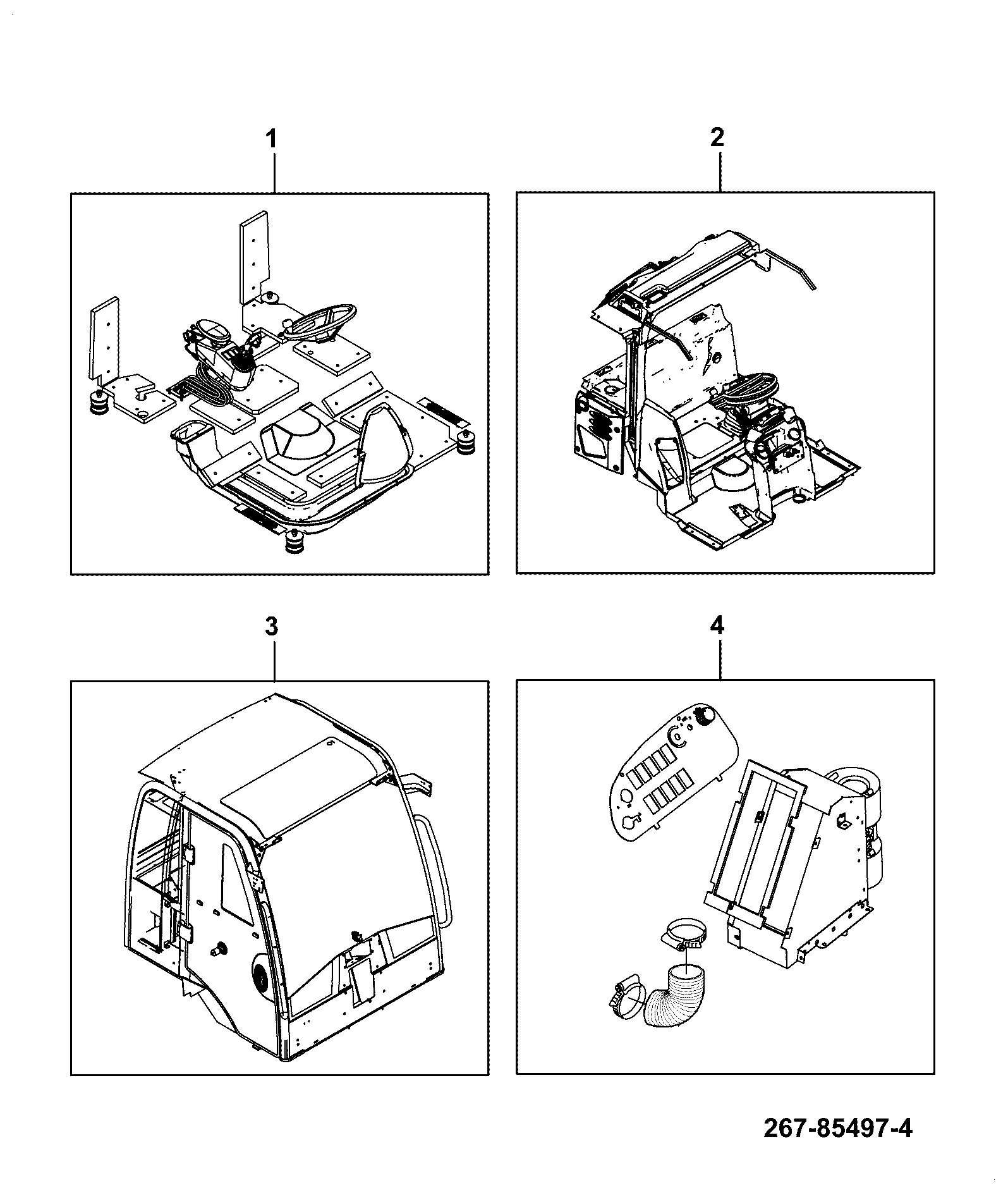

DIAG-B210-10-1-403050 B210-10-1 OPERATOR ENCLOSURE STANDARD
View Diagram -

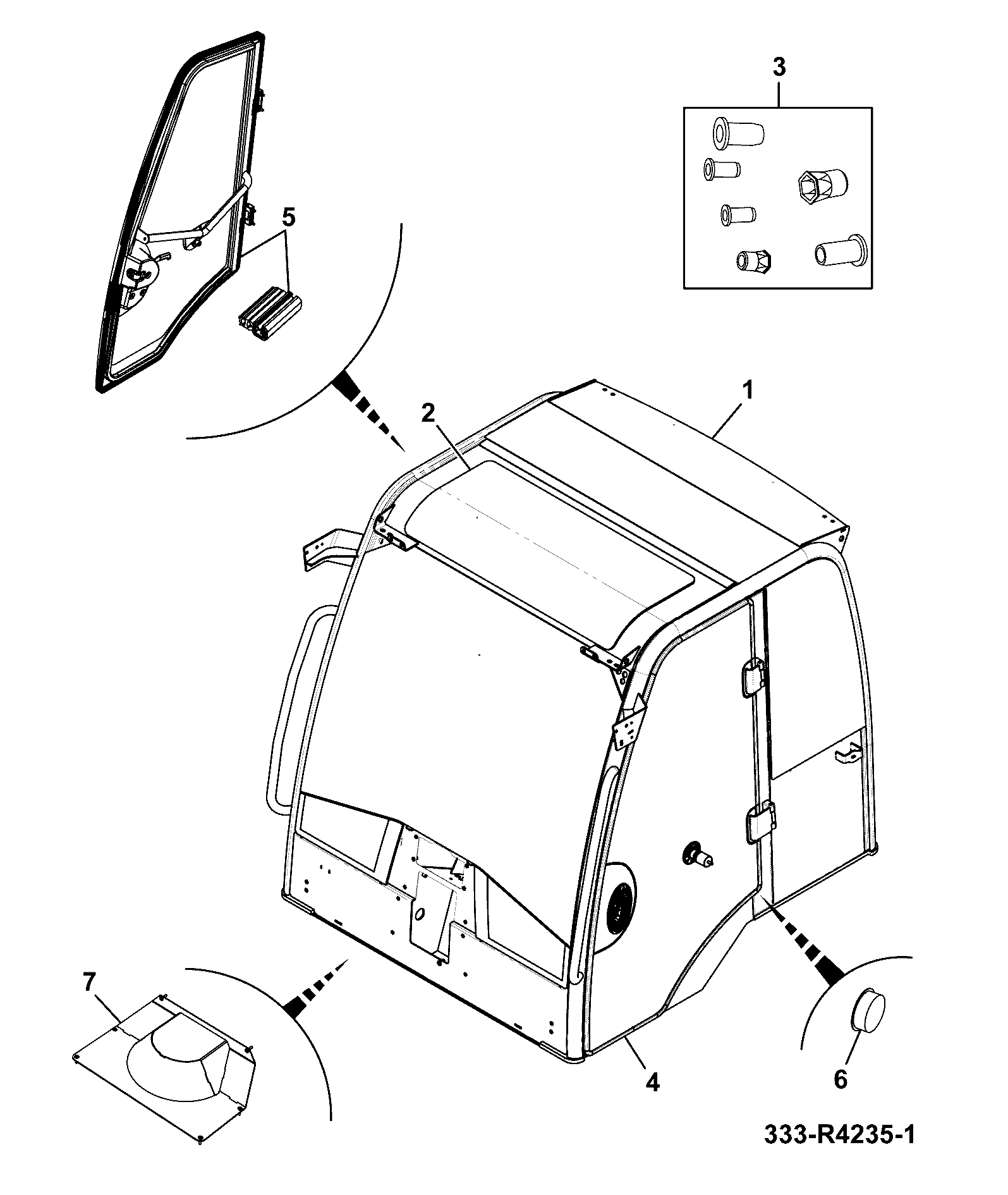

DIAG-B240-10-1-403050 B240-10-1 DOORS STANDARD CAB
View Diagram
