B230-5-1 ROOF GUARDS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PAINTED WA ROOF GUARD 403/K4449	1	AVAILABLE TO ORDER	$577.81	Quantity
2	SET SCREW M8X25 826/11041	1	AVAILABLE TO ORDER	$3.12	Quantity
3	NUT LOCK, M8 BLACK 826/11042	1	AVAILABLE TO ORDER	$1.36	Quantity
4	BLACK WASHER M8 823/00529	1	2 IN STOCK	$3.11	Quantity
5	BOOT-RUBBER 331/34822	1	AVAILABLE TO ORDER	$3.02	Quantity

Showing 1 to 5 of 5 parts

DIAG-B200-50-1-400902 B200-50-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES COMMON TRIM SIDE AND ROOF GLASS
View Diagram
DIAG-B190-335-1-400902 B190-335-1 OTHER BODYWORK ITEMS DETAILS POD SIDE COVER
View Diagram

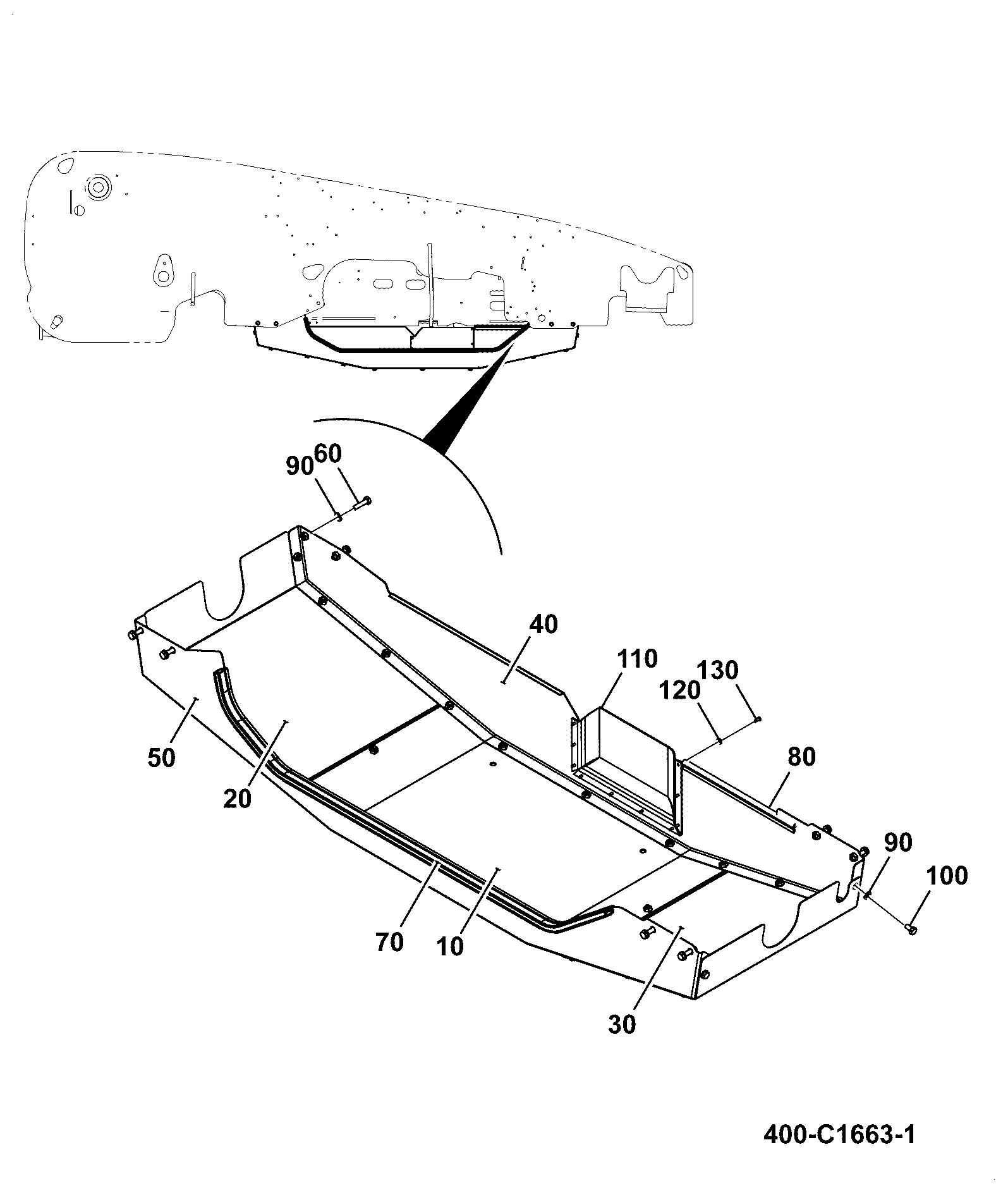

DIAG-B190-115-1-400902-13040050 B190-115-1 OTHER BODYWORK ITEMS INSTALLATION BELLY PLATES
