B210-30-1 OPERATOR ENCLOSURE CAB ABI SLIDING DOOR ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	(P) 406 SLIDING DOOR GA 274/60347	1	AVAILABLE TO ORDER	$5,941.98	Quantity
4	RH LATCHBACK WINDOW GA 332/W9765	1	AVAILABLE TO ORDER	$3,179.99	Quantity
5	HVAC DOOR GA 274/60178	1	AVAILABLE TO ORDER	$2,969.32	Quantity

Showing 1 to 3 of 3 parts

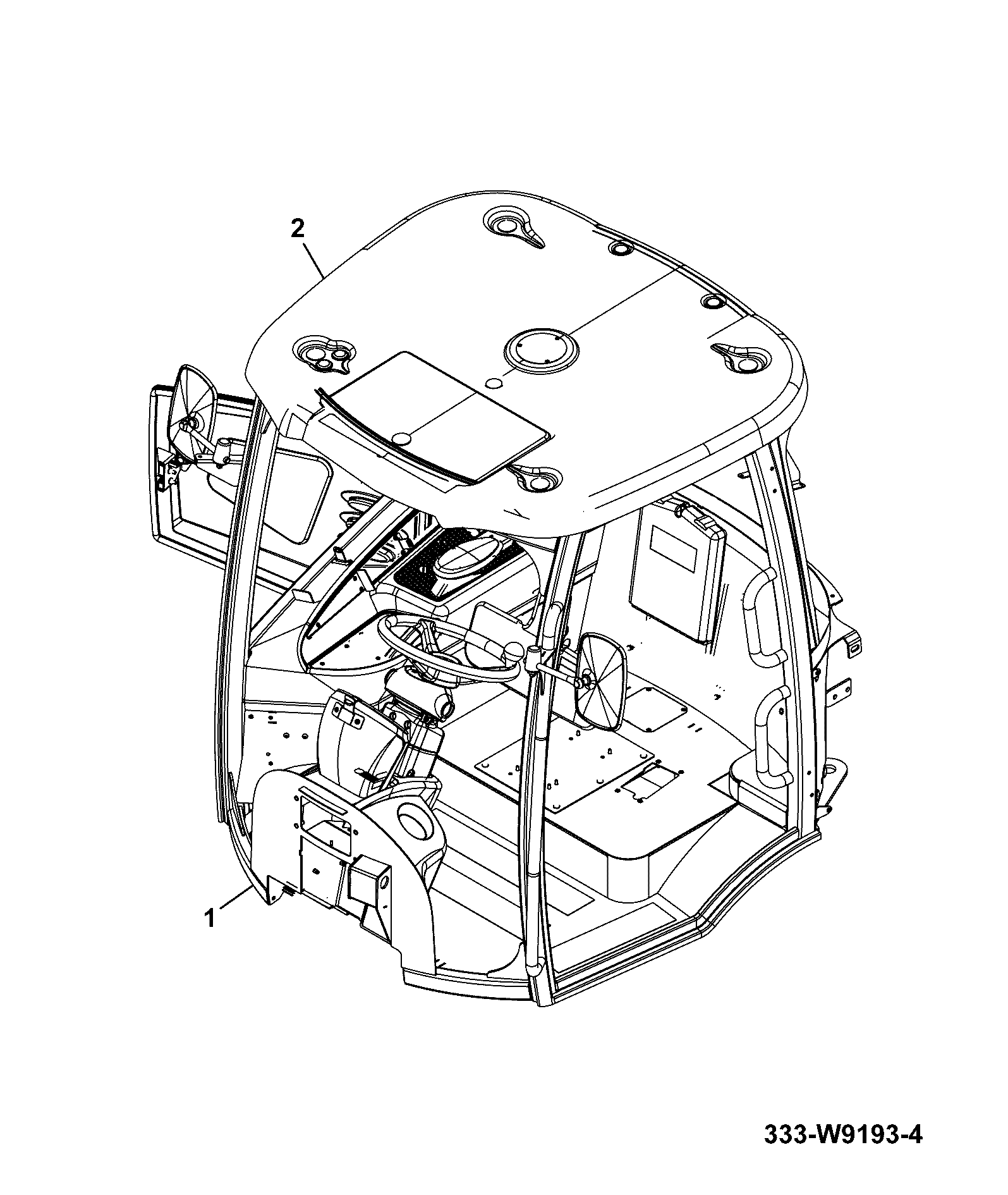

DIAG-B210-10-1-404467 B210-10-1 OPERATOR ENCLOSURE CAB CAB ABI AJAR ONLY STD
View Diagram
DIAG-B200-9-5-404467 B200-9-5 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CANOPY
View Diagram

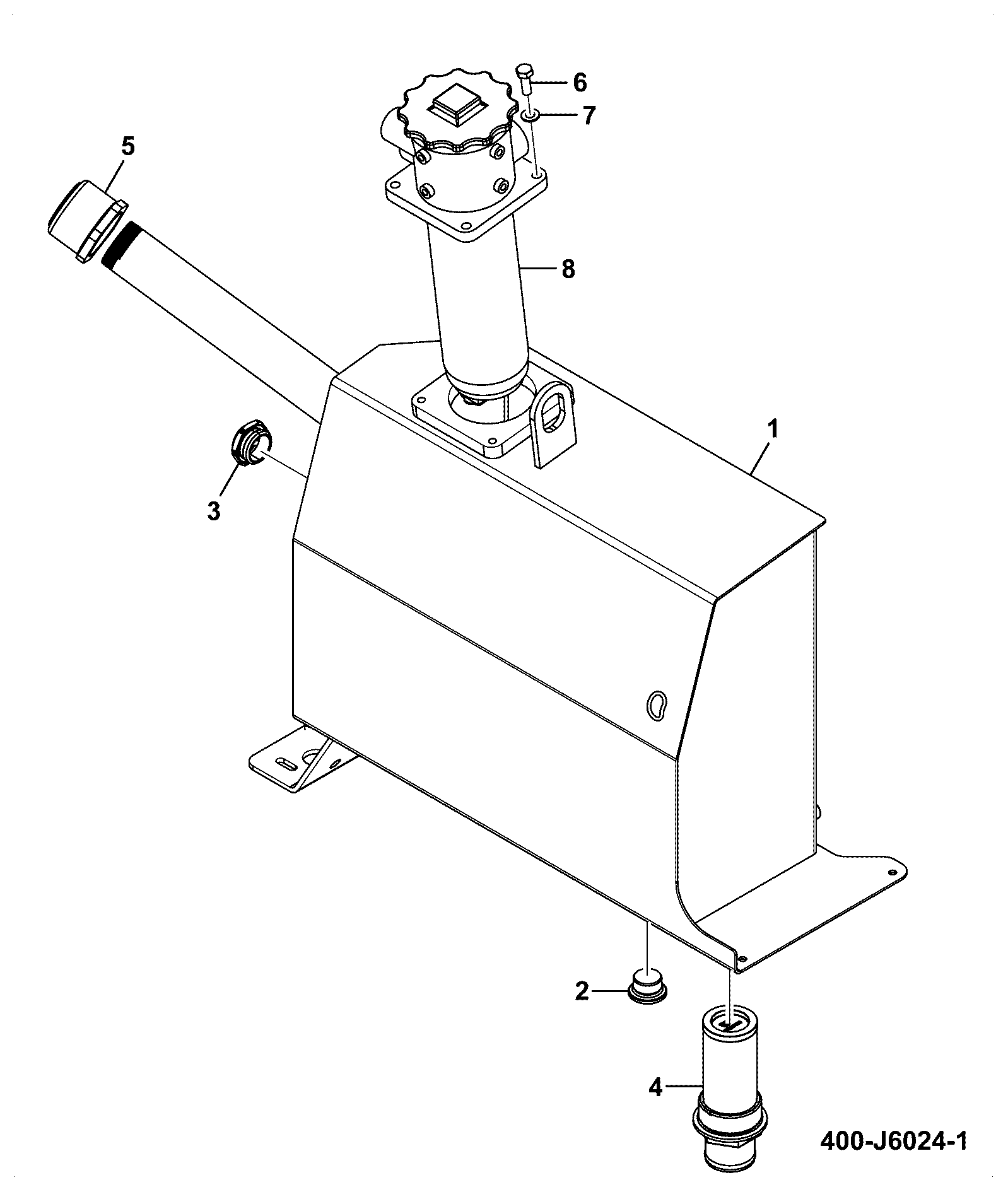

DIAG-B130-2-3-404467 B130-2-3 HYDRAULIC TANK ABI 400/J6024
