B210-20-10 OPERATOR ENCLOSURE CANOPY WHEELED,FULL DOOR,VOLVO,GREY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	DOOR-CAB LP WLD VOLVO GREY 400/K8390	1	AVAILABLE TO ORDER	$1,486.96	Quantity
4	PLATE - LH SIDE MESH VOLVO GREY 332/L8066	1	AVAILABLE TO ORDER	$800.37	Quantity
7	WHLD DOOR STRUT MOUNT VOLVO GREY 332/X4738	1	AVAILABLE TO ORDER	$42.93	Quantity
8	FRONT LIP-VOLVO GRAY 332/X4914	1	AVAILABLE TO ORDER	$13.16	Quantity

Showing 1 to 4 of 4 parts

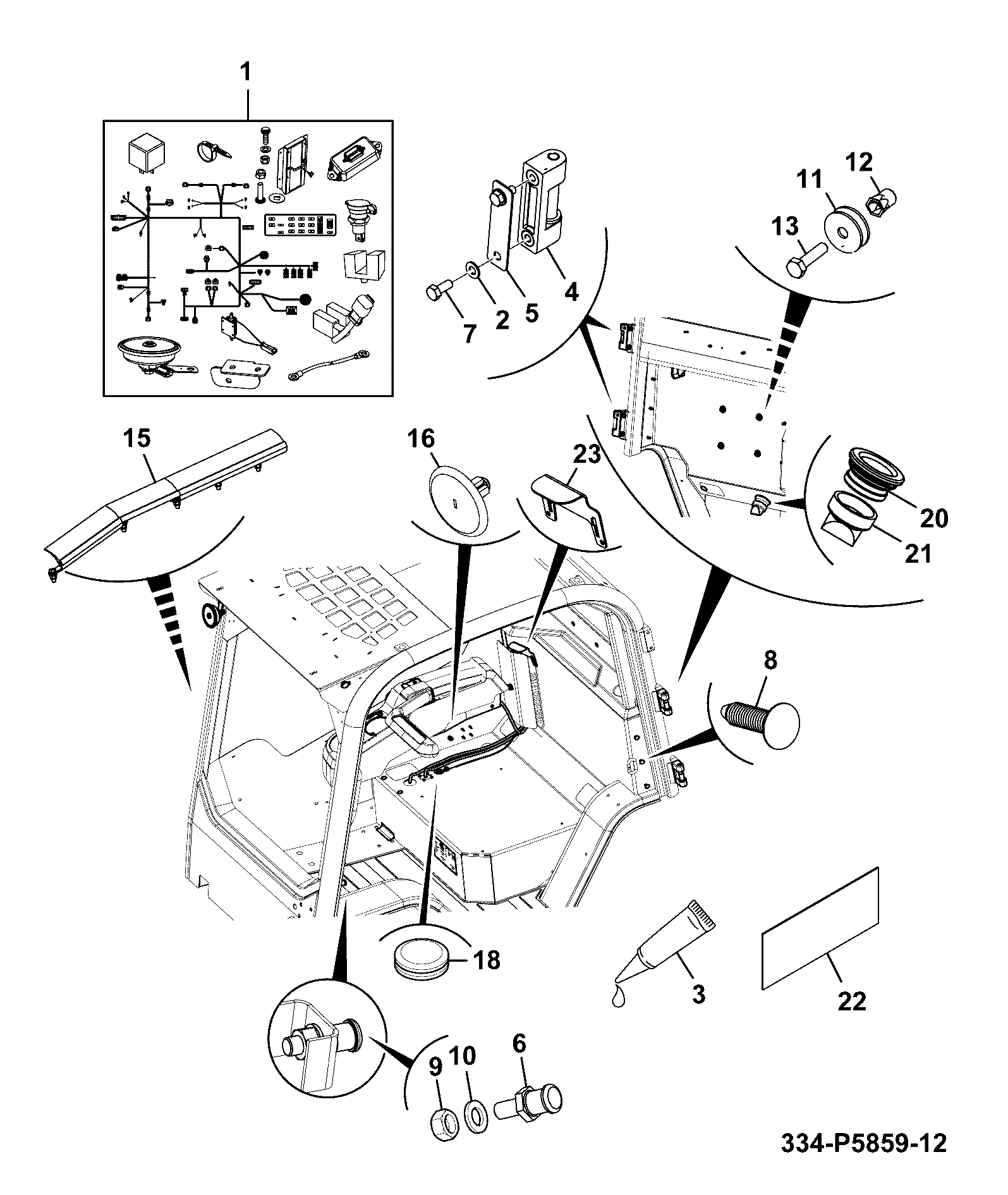

DIAG-B210-100-1-399925 B210-100-1 OPERATOR ENCLOSURE CANOPY FITTINGS, ASSEMBLY, WHEELED, VOLVO, TIER 4
View Diagram

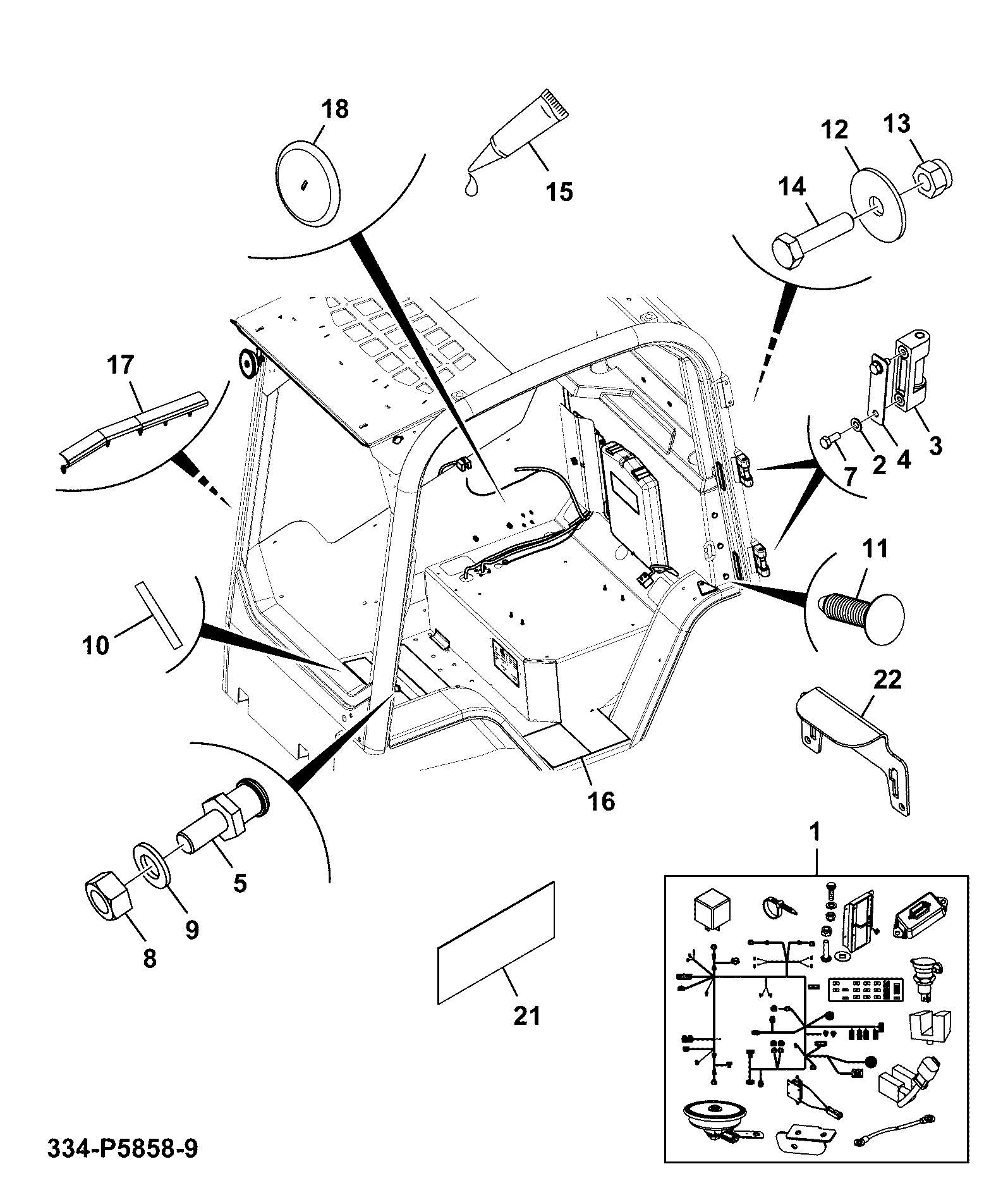

DIAG-B210-110-1-399925 B210-110-1 OPERATOR ENCLOSURE CAB FITTINGS, ASSEMBLY, WHEELED, VOLVO, TIER 4
View Diagram

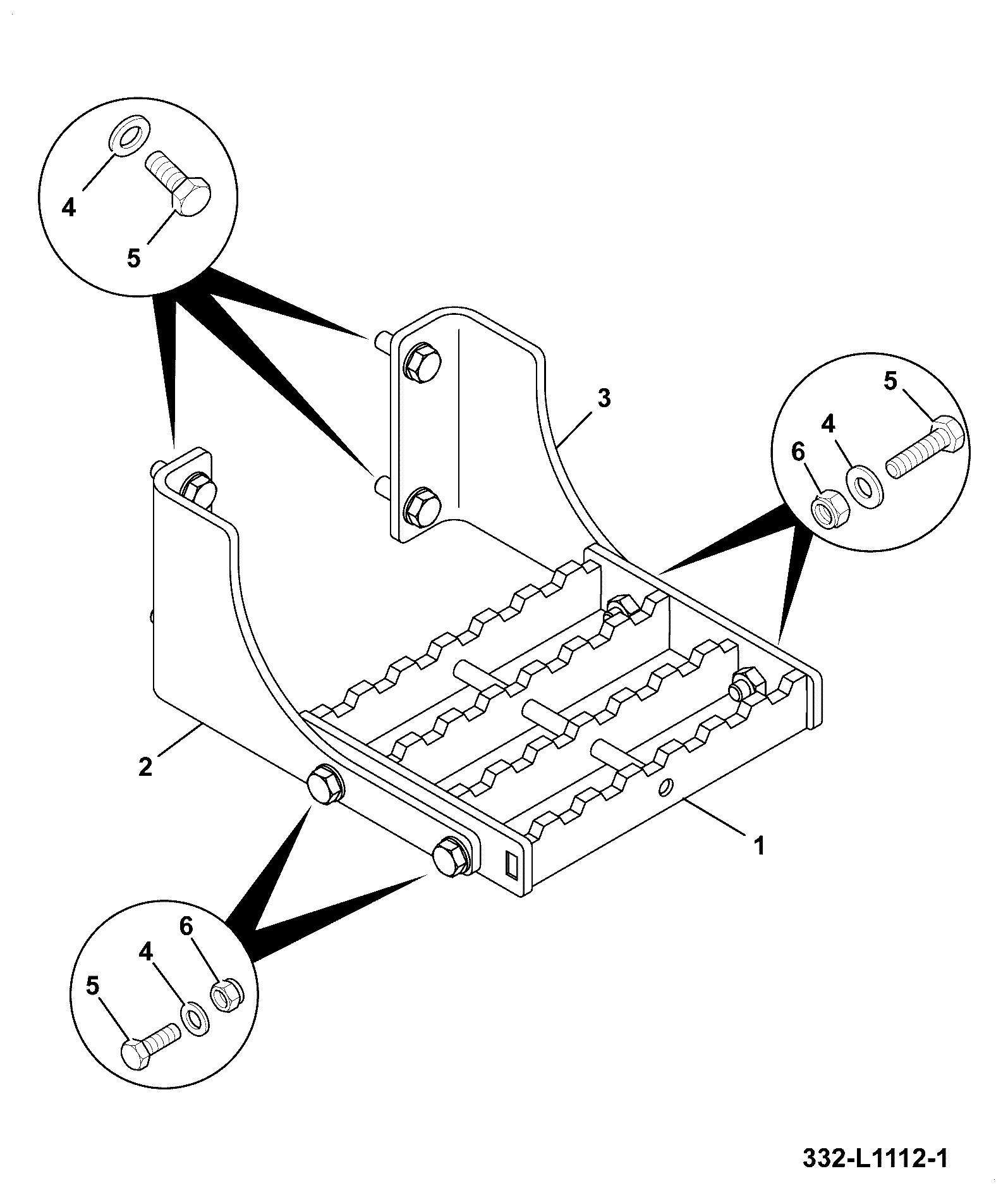

DIAG-B190-1-1-399925 B190-1-1 OTHER BODYWORK ITEMS STEP WHEELED,VOLVO,GREY
