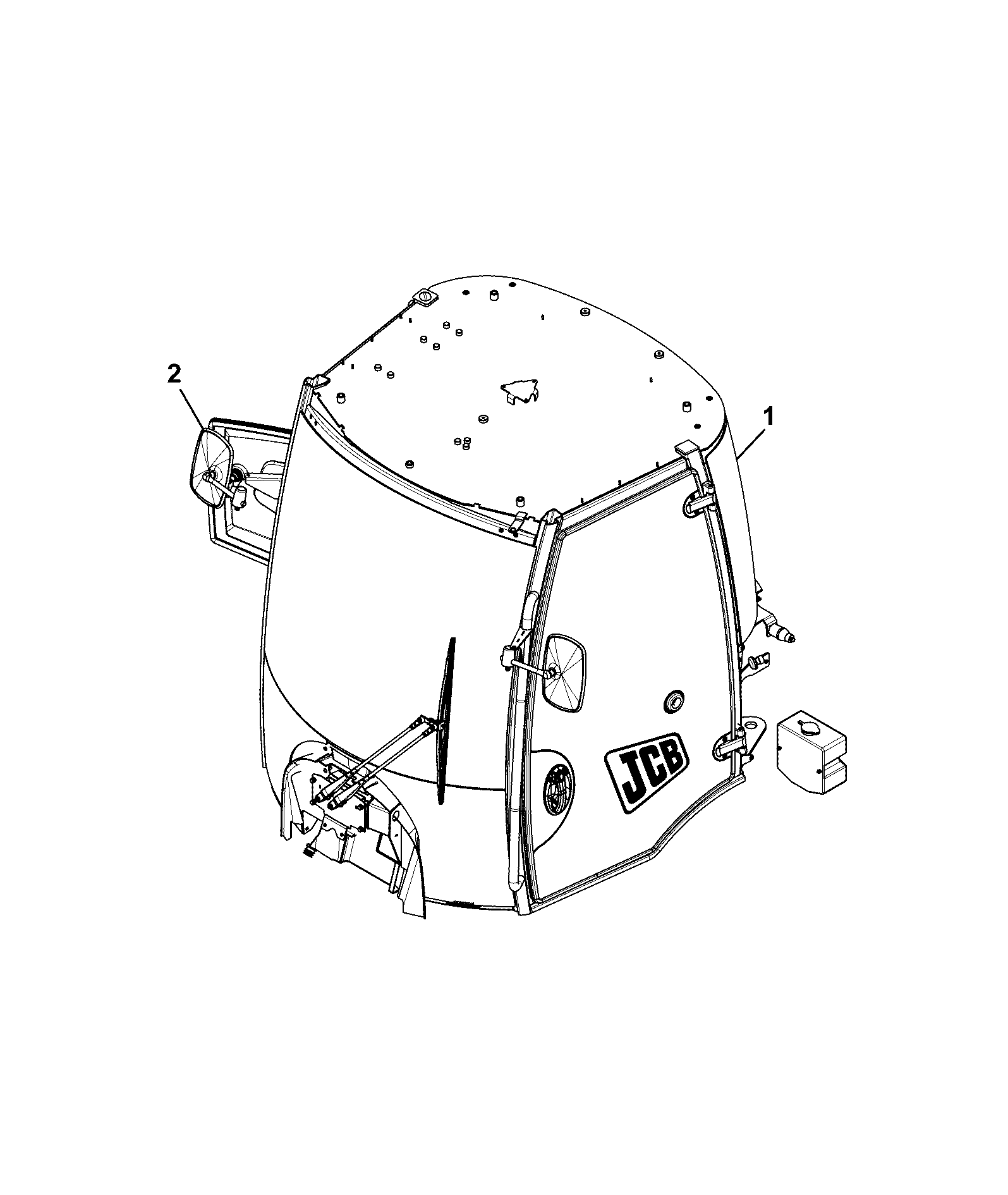

B210-1-5 OPERATOR ENCLOSURE CAB ABI – SLIDING DOOR ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	P/S CAB FULLY OPEN T (P842) 400/X6670 402/L7757	1	AVAILABLE TO ORDER	$16,293.47	Quantity
3	(P) 406 SLIDING DOOR GA 274/60347	1	AVAILABLE TO ORDER	$5,941.98	Quantity
4	RH LATCHBACK WINDOW GA 332/W9765	1	AVAILABLE TO ORDER	$3,179.99	Quantity
5	HVAC DOOR GA 274/60178	1	AVAILABLE TO ORDER	$2,969.32	Quantity

Showing 1 to 4 of 4 parts
