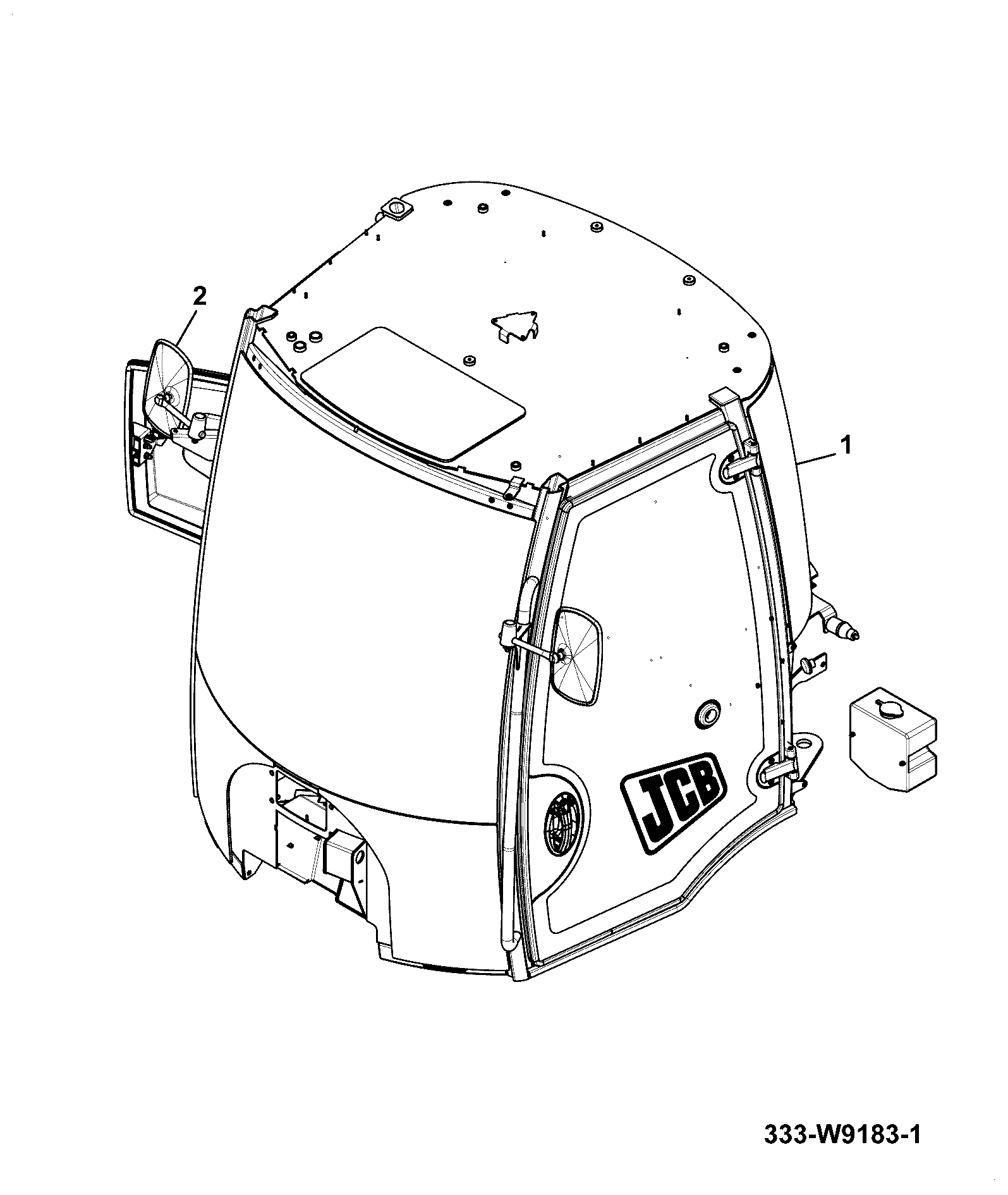

B210-1-1 OPERATOR ENCLOSURE CAB STANDARD DOOR Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	(W) (P) ABI CAB STD DOOR TM220/P366 335/D5704	1	AVAILABLE TO ORDER	$14,956.11	Quantity
3	(P) 406 STANDARD DOOR GA 274/60346	1	AVAILABLE TO ORDER	$2,611.37	Quantity
4	RH LATCHBACK WINDOW GA 332/W9765	1	AVAILABLE TO ORDER	$3,179.99	Quantity
5	HVAC DOOR GA 274/60178	1	AVAILABLE TO ORDER	$2,969.32	Quantity

Showing 1 to 4 of 4 parts

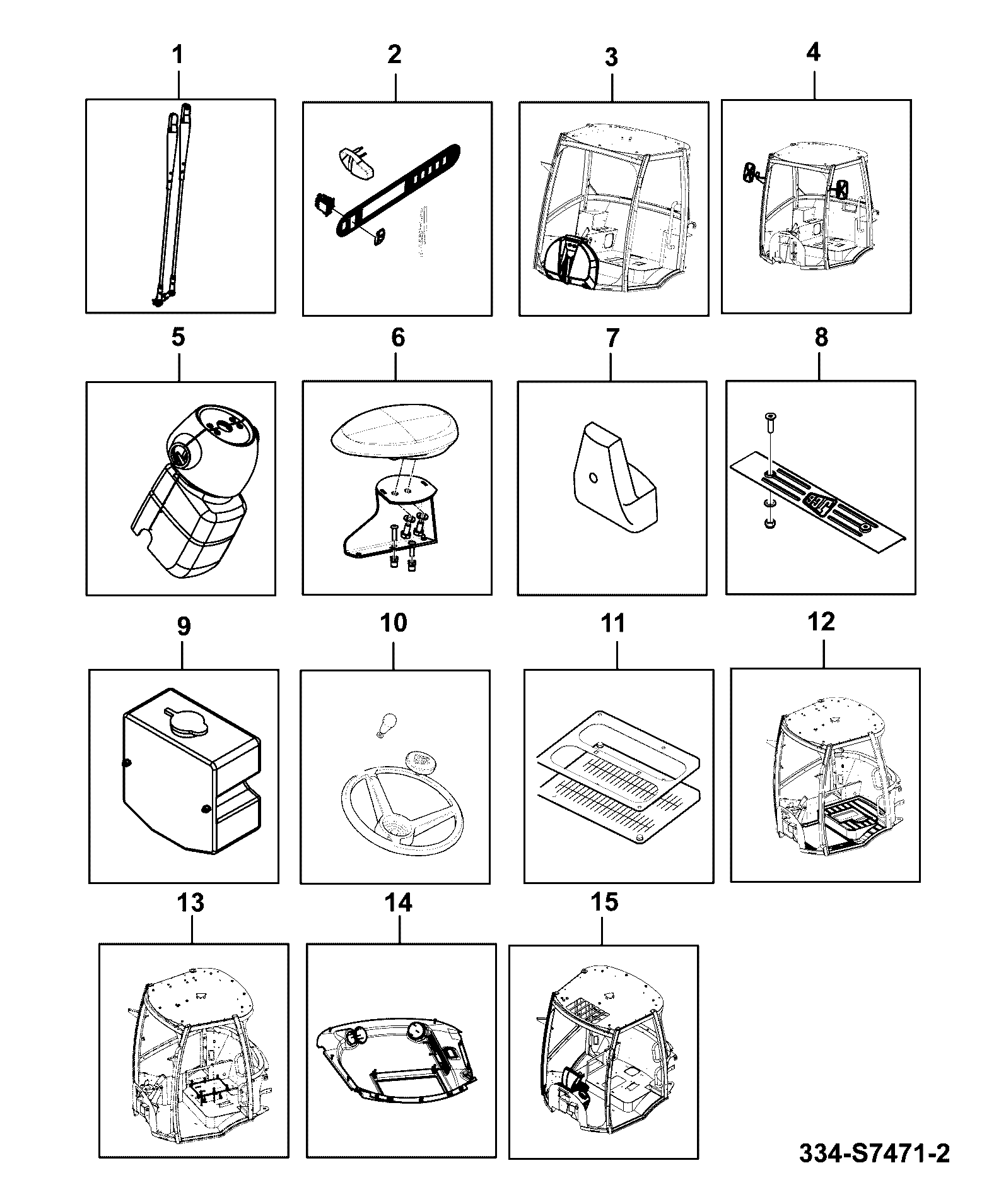

DIAG-B200-3-1-402993 B200-3-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES COMMON PARTS
