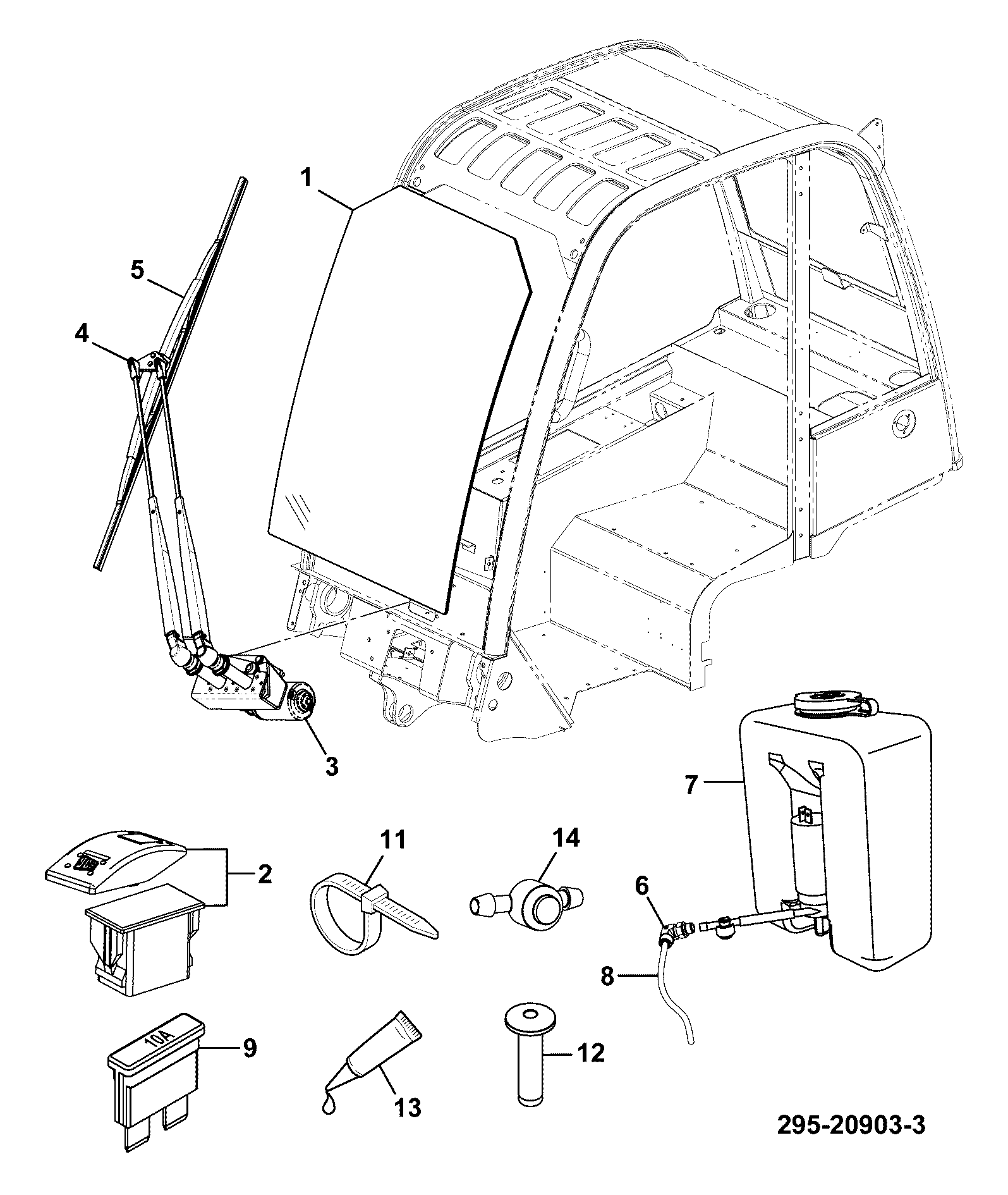

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | SEALING RUBBER (50m Roll) 926/12700 | 1 | $29.80 | |||
| 4 | SET SCREW M5x20 1315/0105Z | 1 | $0.95 | |||
| 5 | WASHER M_5 SPRING 1425/0005Z | 1 | $0.81 | |||
| 6 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.43 | |||
| 7 | SCREW M6x25 BUTTON SOCKET 826/01560 | 1 | $4.18 | |||
| 8 | MOULDING-INSTRUMENT CONSO 331/42196 | 1 | $433.00 | |||
| 9 | STRIP - EDGING 30m Roll - XUSE 926/09500 | 1 | $28.99 | |||
| 10 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 12 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 13 | CABLE TIE 190mm 826/01347 | 1 | $3.37 | |||
| 14 | SPLASH CAP 701/45502 | 1 | $22.83 | |||
| 15 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $0.48 | |||
| 16 | GROMMET 2410/1109 | 1 | $4.96 | |||
| 18 | Housing SLI standa 295/00157 | 1 | $73.71 | |||
| 19 | Cover harness 295/00222 | 1 | $51.36 | |||
| 20 | (W) RIVET 1661/0414 G46/13 | 1 | $4.11 | |||
| 21 | (W) (P) (W) (P) FASTENER.1/4 TURN 826/01706 | 1 | $10.43 | |||
| 22 | (W) (P) RETAINER 826/01707 | 1 | $1.94 | |||
| 23 | (W) (P) RECEPTACLE 826/01708 | 1 | $12.24 | |||
| 24 | SCREW No10x1/2_ 1430/0302 | 1 | $1.49 | |||
| 25 | PROTECTION CAP 835/00046 | 1 | $0.30 | |||
| 26 | PLATE KICK SUSMIC 295/00668 | 1 | $115.49 | |||
| 27 | HARNESS CHANNEL 331/54705 | 1 | $8.41 | |||
| 28 | HARNESS CHANNEL-HORIZONTAL 331/54709 | 1 | $5.52 | |||
| 29 | (W) (P) DOUBLE COATED TAPE 926/18400 | 1 | $112.25 | |||
| 30 | MOULDING GROMMET J 295/00316 | 1 | $41.35 | |||
| 31 | M6 WASHER BLACK 823/10578 | 1 | $0.78 | |||
| 32 | GROMMET BLIND 11.9 DIA x 5 THK 2410/1310 | 1 | $2.41 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-B200-65-1-397306 B200-65-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES SCREEN /WIPER FRONT
View Diagram -
DIAG-B200-25-1-397306 B200-25-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES ROOF GLASS/SIDE
View Diagram -
DIAG-B200-70-1-397306 B200-70-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES SCREEN /WIPER FRONT
View Diagram
