Scroll to zoom Click a part # to view details

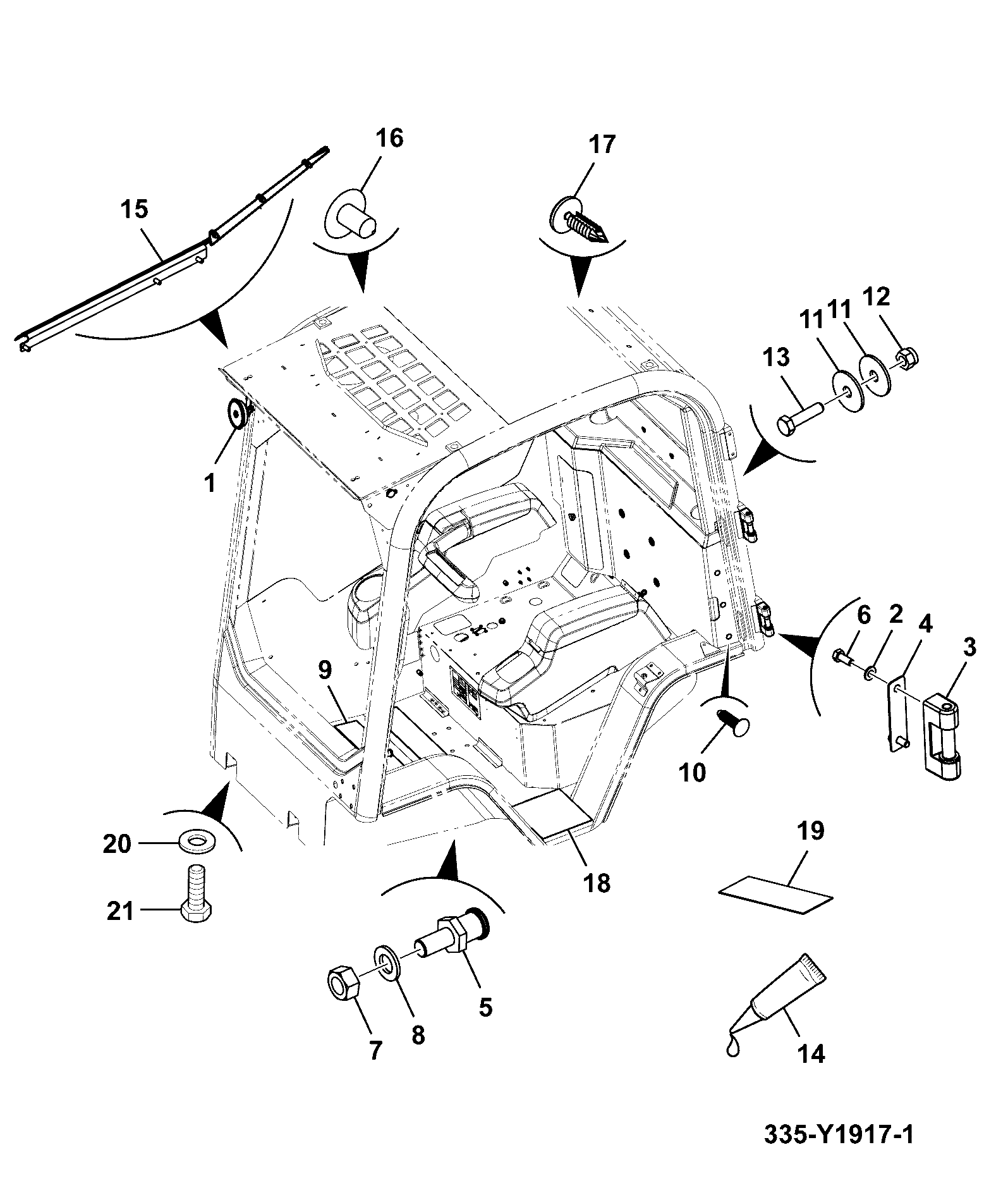

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 3 | SIKA ADHESIVE 552 4103/3200 | 1 | $184.76 | |||
| 4 | ABI-HINGE ASSY 333/X0859 | 1 | $97.53 | |||
| 5 | PLATE - HINGE 336/E0811 | 1 | $20.85 | |||
| 6 | DOOR STRIKER M12( 05.0056.4021 ) 332/A0619 | 1 | $48.58 | |||
| 7 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 8 | FIR TREE BUTTON 7x30mm 826/01592 | 1 | $3.21 | |||
| 9 | NUT 826/10947 | 1 | $6.94 | |||
| 10 | M12 BLK WASHER 823/10410 | 1 | $3.08 | |||
| 11 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 12 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 13 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 17 | GROMMET 2410/0313 | 1 | $7.34 | |||
| 18 | SAFETY STRUT RUBBER 247/00495 | 1 | $5.25 | |||
| 19 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 20 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 21 | BAFFLE SLEEVE 332/X9665 | 1 | $6.63 | |||
| 22 | ACUATOR 332/X9666 | 1 | $5.85 | |||
| 23 | BOTTOM BACK PANEL SUPPORT 333/X9480 | 1 | $564.57 | |||
| 24 | DOOR BOLT WASHER 333/X6886 | 1 | $22.49 | |||
| 25 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

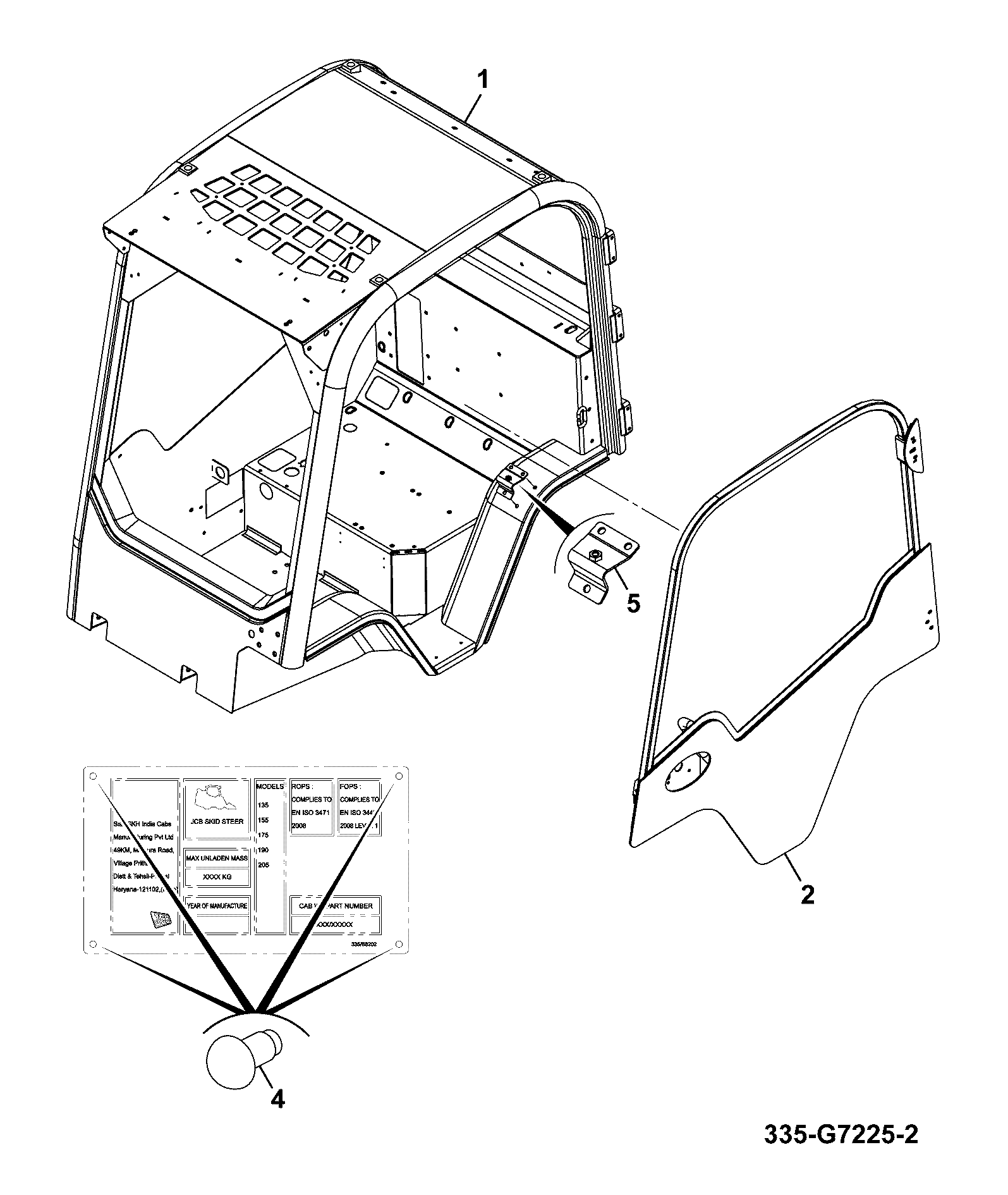

DIAG-B200-35-1-399643 B200-35-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CAB FITTINGS
View Diagram -
DIAG-B200-40-1-399643 B200-40-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CANOPY FITTINGS
View Diagram -
DIAG-B200-20-1-399643 B200-20-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CAB BLACK
View Diagram
