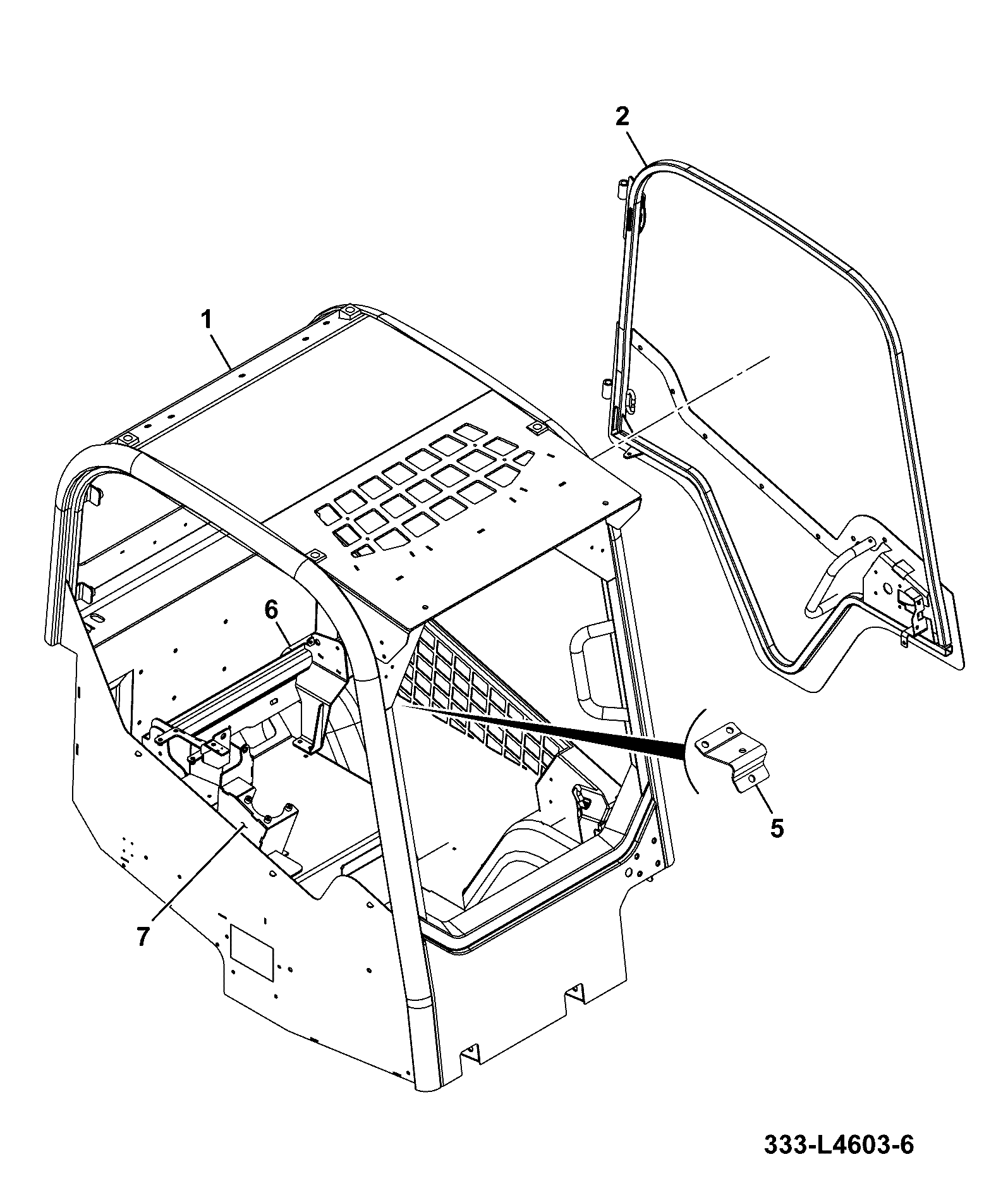

B200-20-1 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CAB WHEELED,VOLVO GREY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CAB / CANOPY WHEELED VOLV 332/X7297	1	AVAILABLE TO ORDER	$2,512.03	Quantity
2	DOOR SP WHEELED VOLVO 332/X7294 333/X2007	1	AVAILABLE TO ORDER	$894.45	Quantity
5	WHLD DOOR STRUT MOUNT BLACK SP 332/X7328	1	AVAILABLE TO ORDER	$14.96	Quantity
6	SEAT BASE GREY 332/X7401	1	AVAILABLE TO ORDER	$333.66	Quantity
7	WA-RH POD 333/X1449	1	AVAILABLE TO ORDER	$255.19	Quantity

Showing 1 to 5 of 5 parts

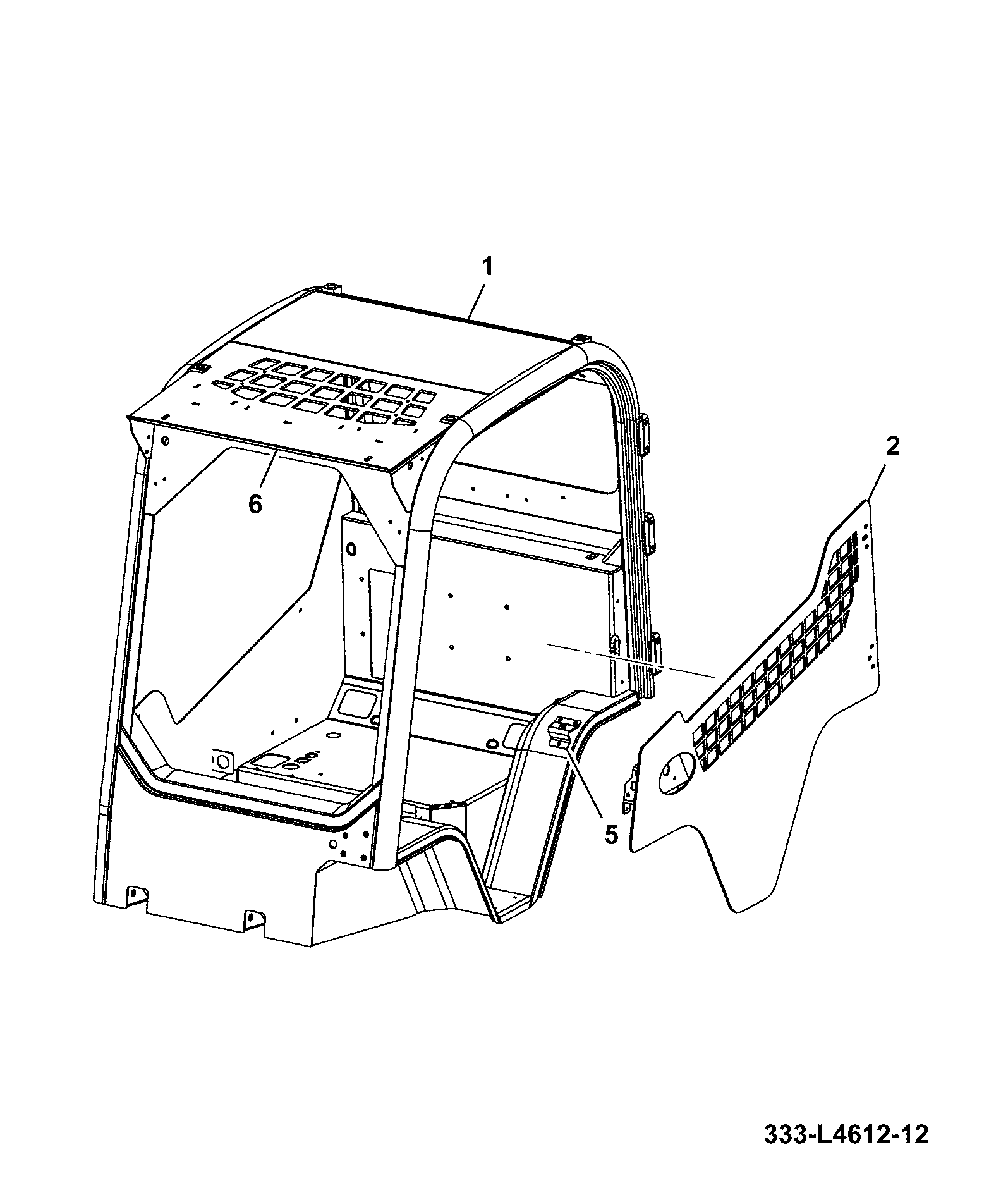

DIAG-B200-1-10-399915 B200-1-10 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CANOPY STANDARD,WHEELED,VOLVO GREY
View Diagram

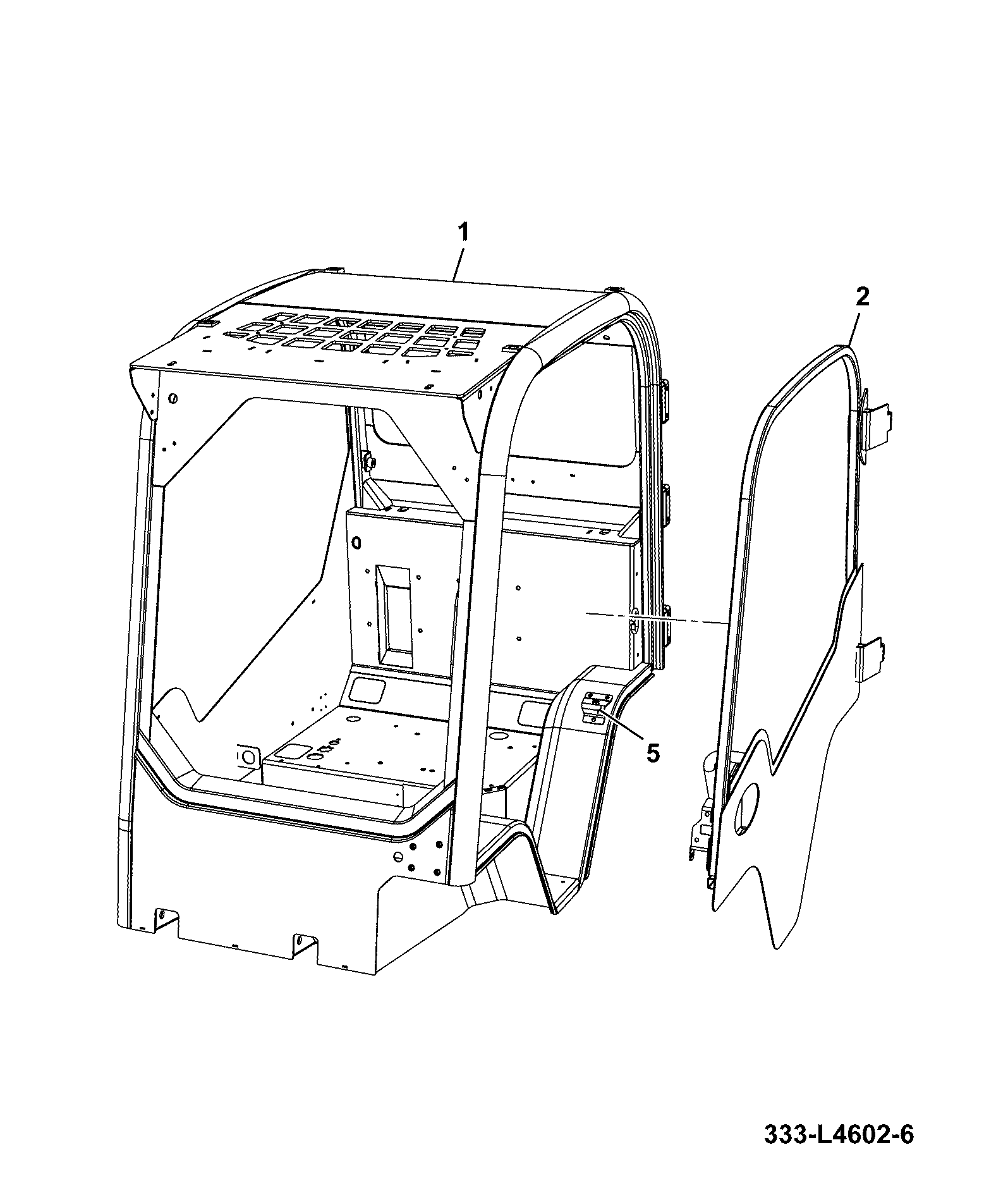

DIAG-B200-20-5-399915 B200-20-5 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CAB WHEELED,VOLVO GREY
