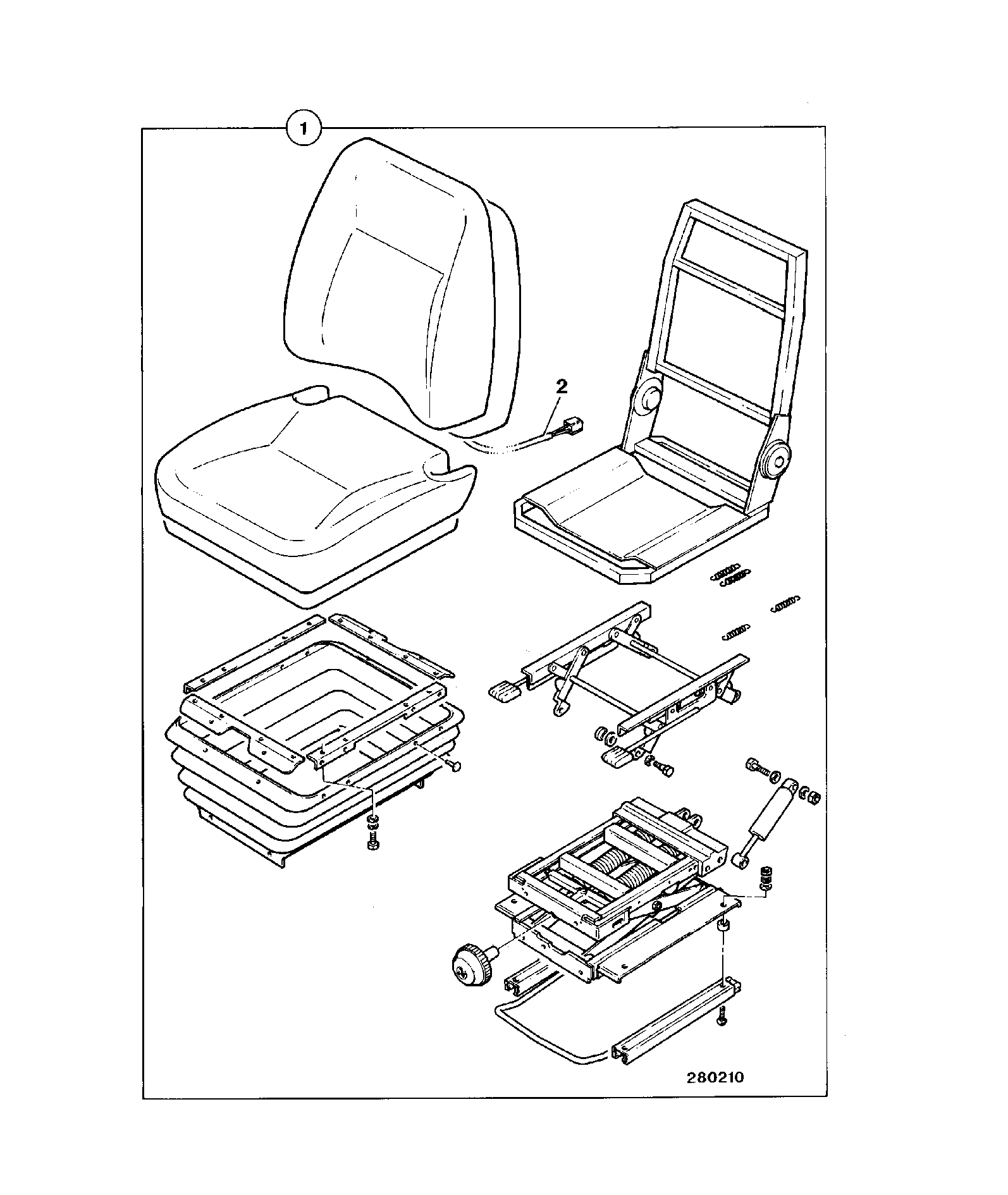

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | ||||
| 2 | SEAT 40/906801 | 1 | $1,998.26 | |||
| 3 | Cushion back vinyl 40/910862 | 1 | $591.90 | |||
| 5 | Boot sewn 40/906804 334/C0875 | 1 | $34.88 | |||
| 6 | Frame wire upper f 40/906805 334/C0876 | 1 | $2.93 | |||
| 7 | Frame wire lower f 40/906806 334/C0877 | 1 | $2.21 | |||
| 12 | Nut lock 40/906811 334/C0878 | 1 | $0.50 | |||
| 13 | Cover Vinyl Tip 40/906812 | 1 | $115.18 | |||
| 15 | Stud Protection 40/906814 | 1 | $16.25 | |||
| 20 | SEAT PLINTH 162/02768 | 1 | $233.05 | |||
| 22 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

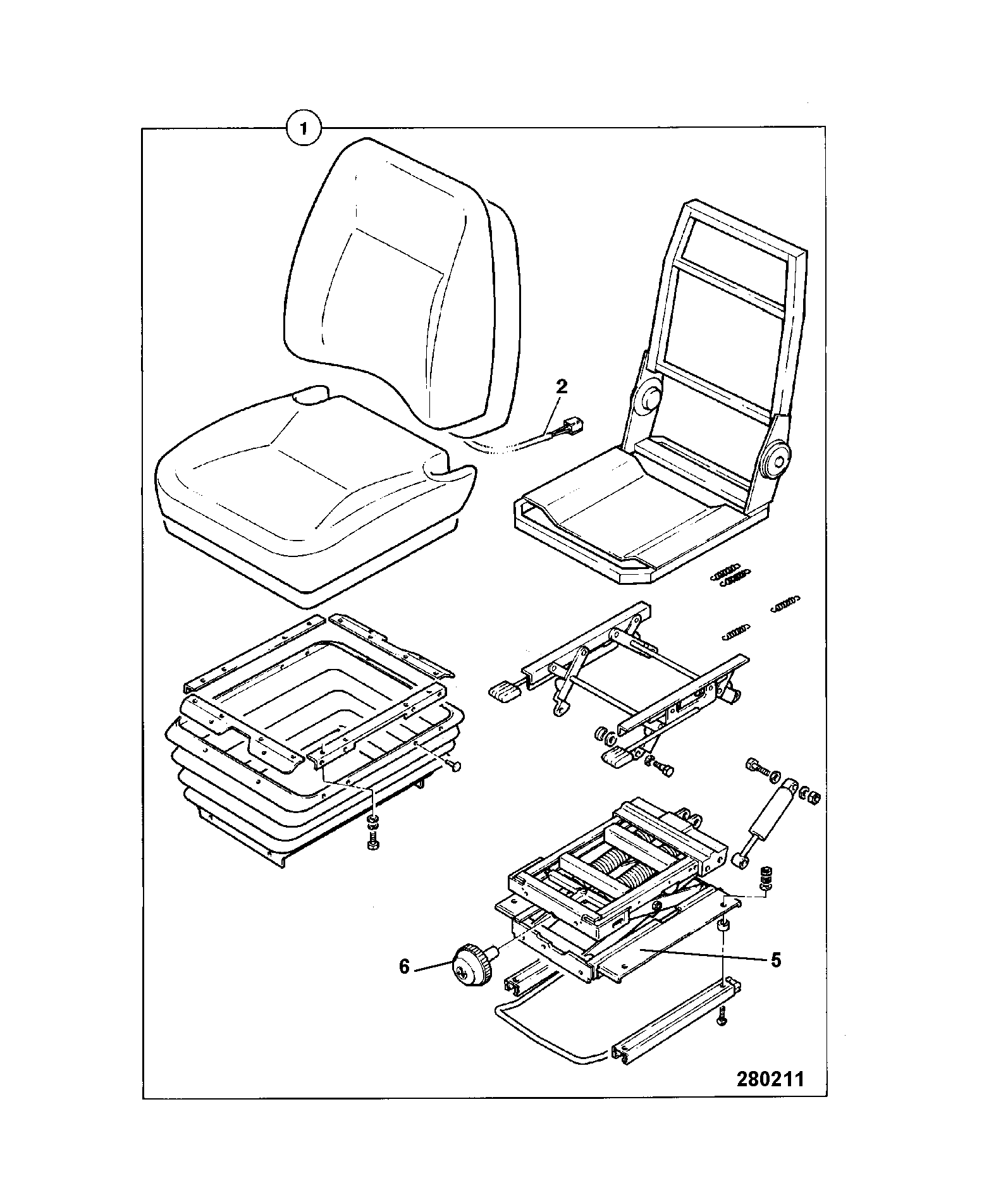

DIAG-B2-9-6-400852-13015670 B2-9-6 SEAT,SUSPENSION HEATED
