Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | SCREW NO6X3/4 (P545) 1430/1104 | 1 | $0.18 | |||
| 3 | CAB MNT.60 shore 332/R3700 265/00241 | 1 | $226.45 | |||
| 4 | PAD REBOUND 265/00657 | 1 | $65.48 | |||
| 4A | PAD REBOUND 265/01124 | 1 | $156.04 | |||
| 5 | BOLT M20X140 1315/3824D 1315/3824Z | 1 | $18.96 | |||
| 6 | NUT M20 STD SELF LOCK 1370/0703Z | 1 | $12.95 | |||
| 7 | BRACKET 265/00295 | 1 | $159.40 | |||
| 8 | WASHER - NYLON 823/00344 | 1 | $1.49 | |||
| 9 | (W) (P) BOLT M10x35 1315/3409Z | 1 | $1.52 | |||
| 10 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 11 | MIRROR 265/02204 | 1 | $77.23 | |||
| 12 | VENT 265/00290 | 1 | $53.22 | |||
| 14 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 15 | LIMIT WASHER 511/54703 | 1 | $68.71 | |||
| 16 | HANDLE LOCKING 265/00266 | 1 | $5.43 | |||
| 25 | SCREW NO8X1/2 1430/0202 | 1 | $0.41 | |||
| 28 | BALL JOINT 10mm M8 331/32843 | 1 | $8.12 | |||
| 29 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 33 | WASHER 2BA 1414/0011Z | 1 | $0.09 | |||
| 34 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 37 | MIRROR INTERIOR 123/04078 | 1 | $19.23 | |||
| 38 | SCREW 826/01525 | 1 | $0.44 | |||
| 40 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 41 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 43 | FASTENER 1/4 TURN 826/01719 | 1 | $6.62 | |||
| 44 | RETAINER 826/01223 | 1 | $1.52 | |||
| 45 | DZUS RECEPTACLE 6mm 826/01364 826/01025 | 1 | $30.23 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-

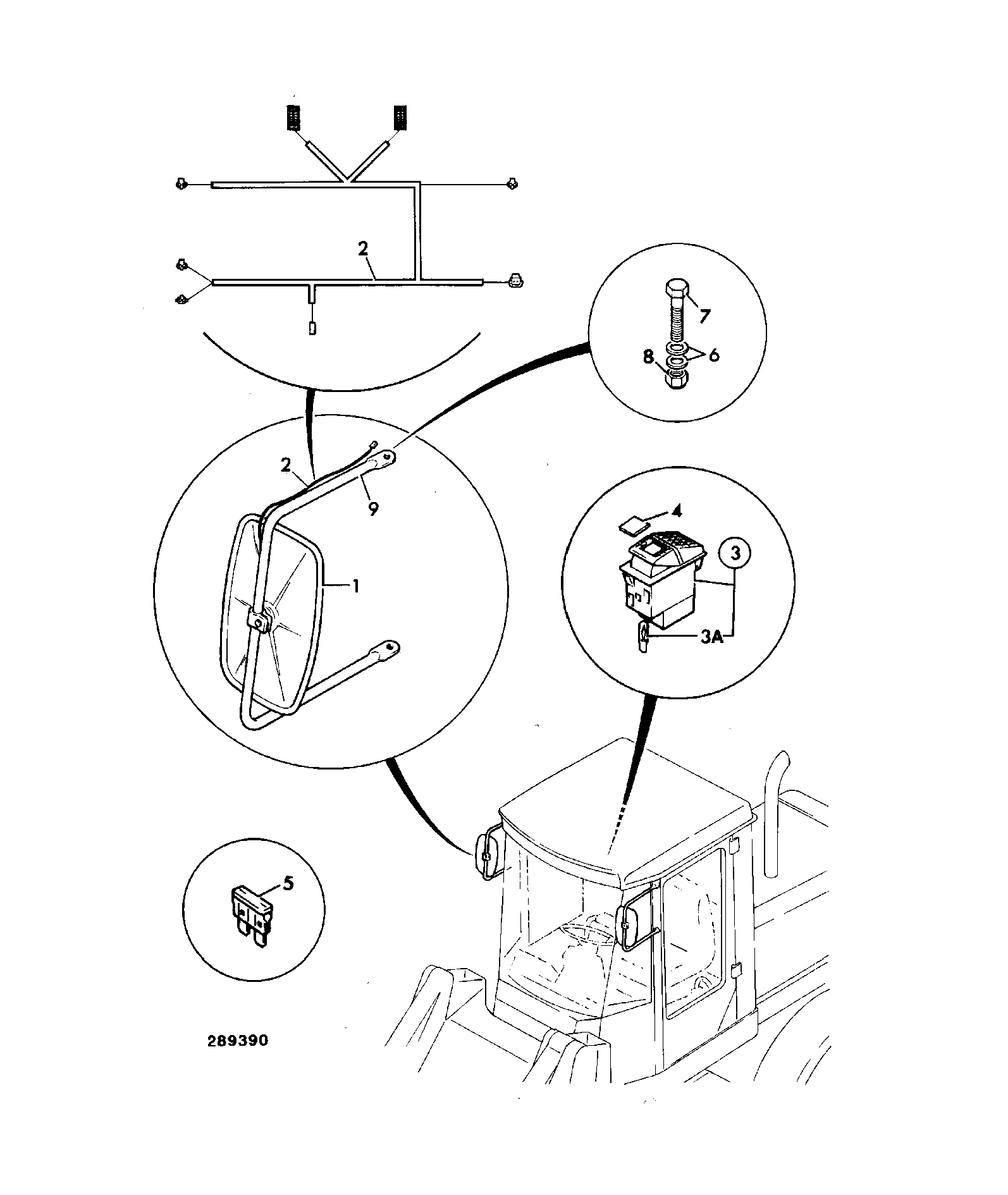

DIAG-B2-9-2-404663 B2-9-2 MIRRORS EXTERNAL 24 VOLT HEATED - OPTIONAL
