B2-8-6 SUSPENSION SEAT HEATED 24 VOLT – OPTIONAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	KIT 24V HEATER 40/910394	1	AVAILABLE TO ORDER	$273.68	Quantity
1	HEATED SEAT - 24 VOLT 40/214600	1	AVAILABLE TO ORDER	$5,683.11	Quantity
4	(W) (P) SWITCH 24v 701/60031	1	1 IN STOCK	$115.54	Quantity
5	DECAL heated seat switch 701/58715	1	AVAILABLE TO ORDER	$3.30	Quantity
6	FUSE-15AMP 716/05706	1	AVAILABLE TO ORDER	$0.62	Quantity

Showing 1 to 5 of 5 parts

DIAG-B2-8-7-404930-15829982 B2-8-7 SUSPENSION SEAT COMPONENTS 24 VOLT HEATED
View Diagram
DIAG-B2-8-10-404930 B2-8-10 #EAT, SUSPENSION KAB/BOSTROM
View Diagram

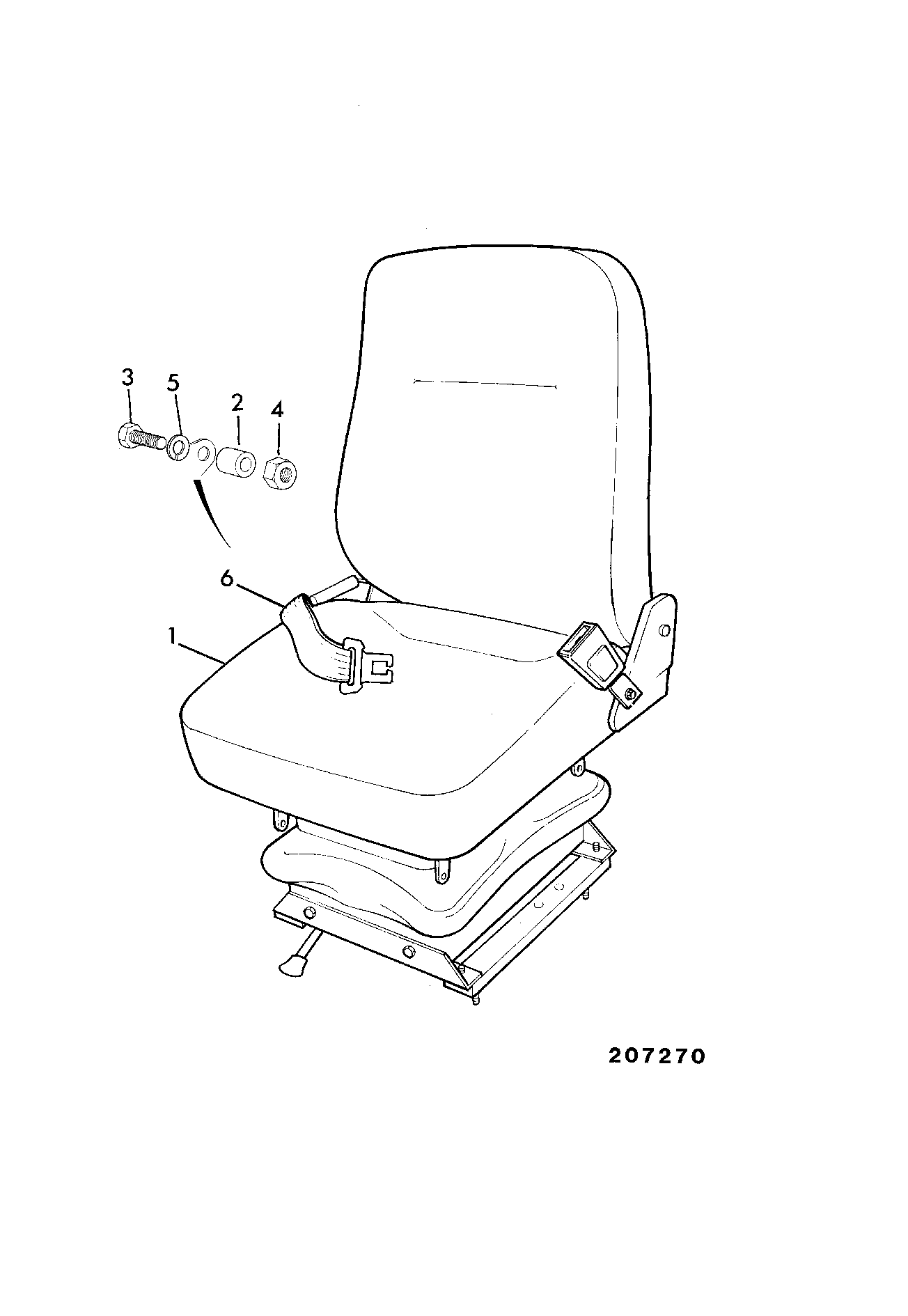

DIAG-B2-8-1-404930-15829975 B2-8-1 SEAT, SUSPENSION KAB/BOSTROM
