B2-8-2 SEAT, SUSPENSION AIR Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	HEATED SEAT & MIRROR HARN 721/00589	1	AVAILABLE TO ORDER	$447.25	Quantity
4	(W) (P) SWITCH 24v 701/60031	1	1 IN STOCK	$115.54	Quantity
5	DECAL heated seat switch 701/58715	1	AVAILABLE TO ORDER	$3.30	Quantity
6	Auto Blade Fuse 10A 716/05705	1	AVAILABLE TO ORDER	$0.62	Quantity

Showing 1 to 4 of 4 parts

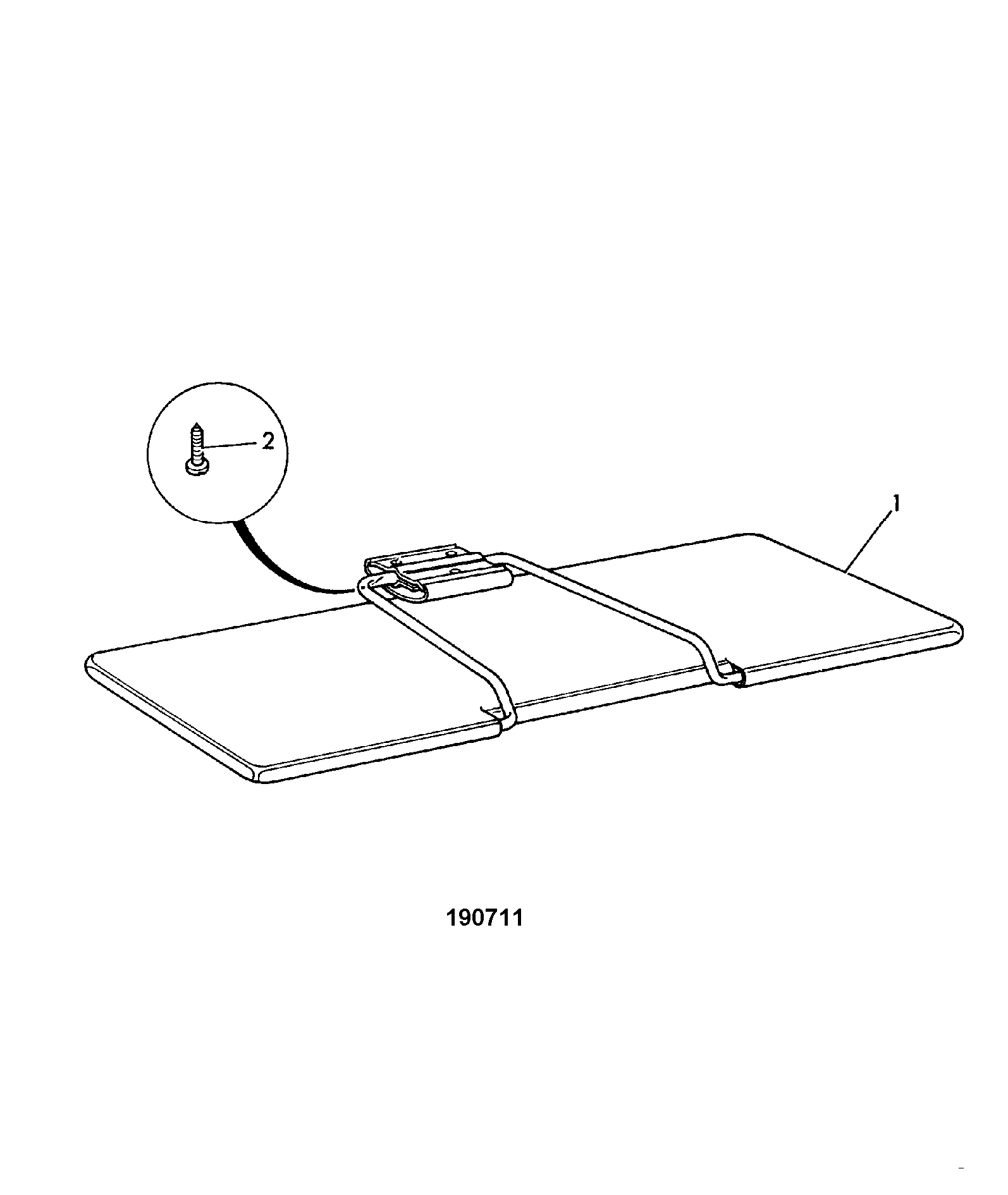

DIAG-B2-8-1-404479-15554182 B2-8-1 VISOR SUN
View Diagram

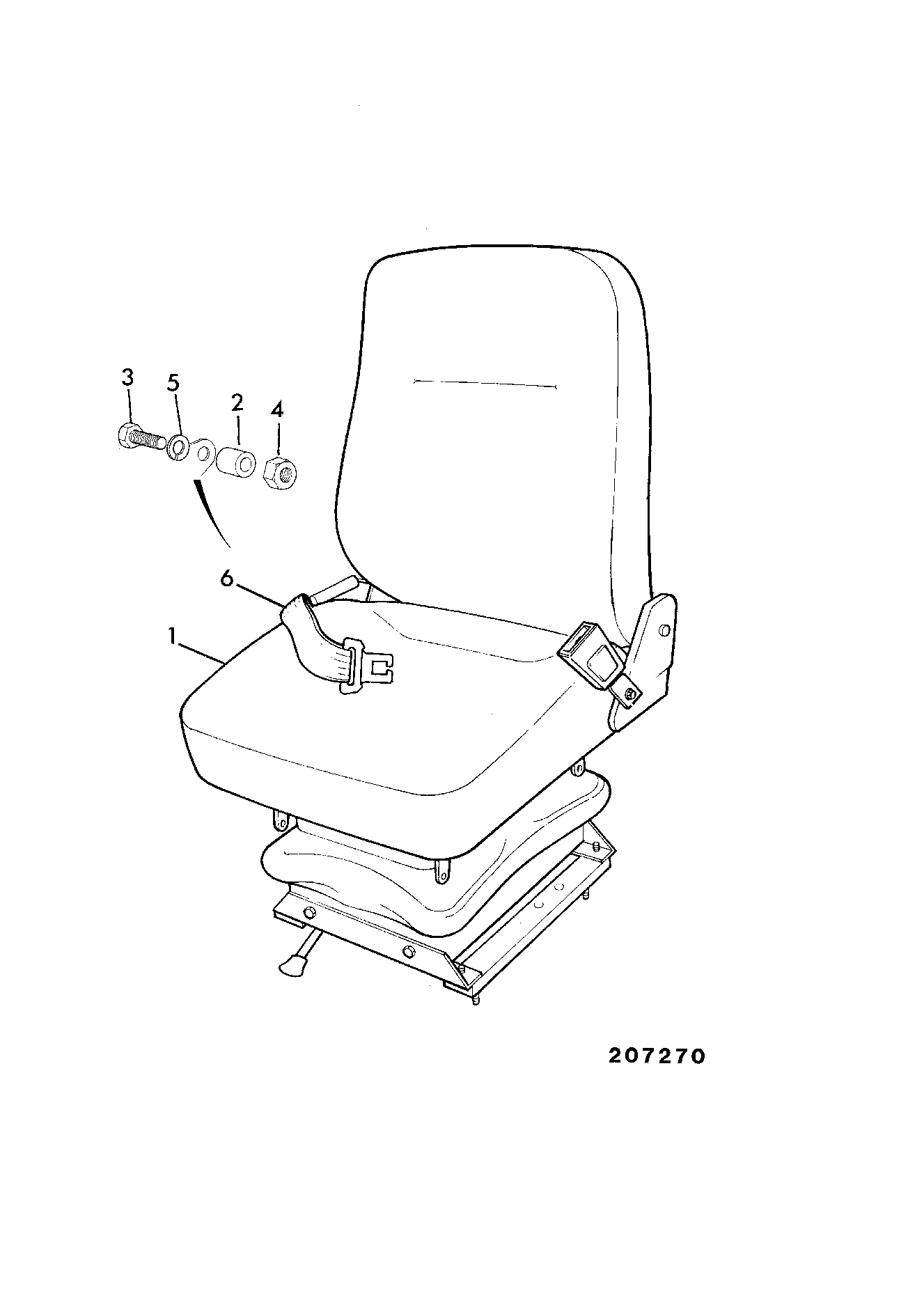

DIAG-B2-8-4-404479 B2-8-4 SEAT, SUSPENSION KAB/BOSTROM
View Diagram
DIAG-B2-8-5-404479 B2-8-5 SUSPENSION SEAT COMPONENTS KAB/BOSTROM
View Diagram

Previous Assembly DIAG-B2-8-1-404479-15554182 B2-8-1 VISOR SUN Next Assembly DIAG-B2-8-4-404479 B2-8-4 SEAT, SUSPENSION KAB/BOSTROM
